1984 Kawasaki KL600 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

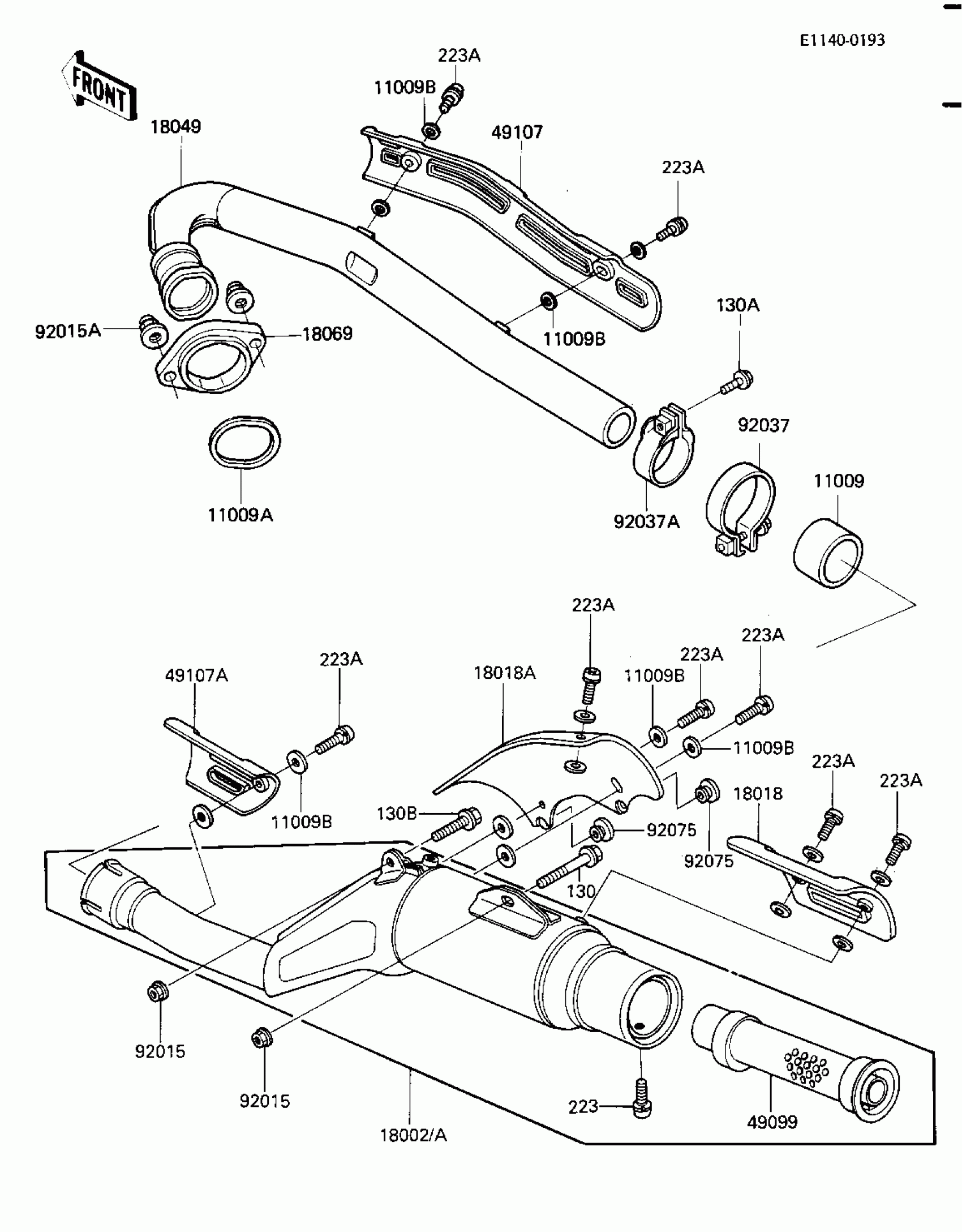

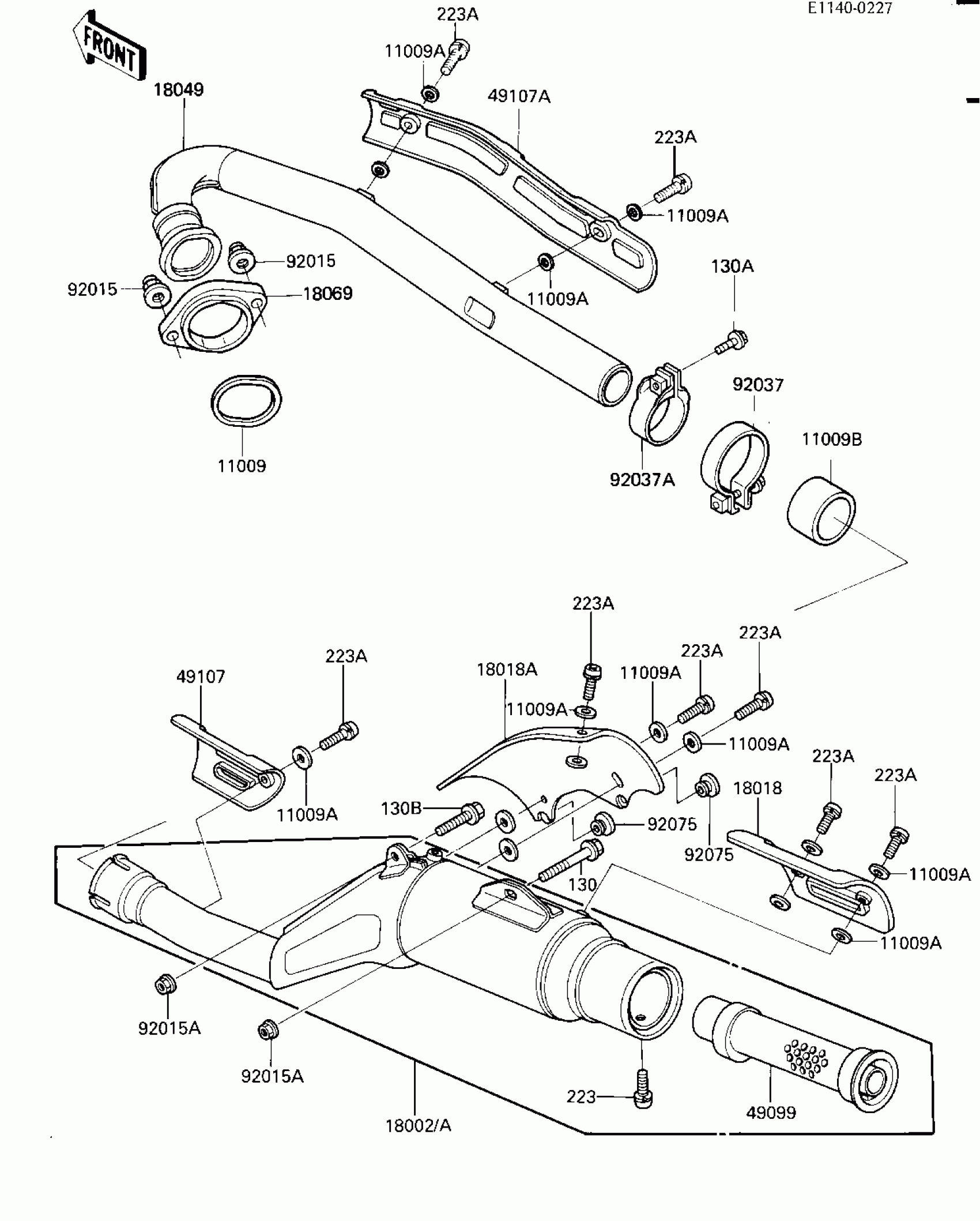

1984 Kawasaki KL600 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$30.00

In stock

11009A

1

$7.31

In stock

11009B

GASKET,6.2X11.5X1.5

11060-1109

1

$3.63

In stock

18002

BODY-COMP-MUFFLER (Canada)

18002-1454

1
Out of stock

18002A

BODY-COMP-MUFFLER

18002-1597

1

$490.87

In stock

18018

PLATE-HEAT GUARD

18018-1053

1
Out of stock

18018A

PLATE-HEAT GUARD

18018-1060

1

$38.36

In stock

18049

PIPE-EXHAUST

18049-1267

1

$137.75

In stock

18069

HOLDER-EXHAUST PIPE

18069-1063

1

$33.48

In stock

49099

BAFFLE-PIPE MUFFLER

49099-1218

1
Out of stock

49107

1

$30.59

In stock

49107A

1

$43.83

In stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92037

CLAMP

92037-1910

1

$24.93

In stock

92037A

CLAMP,43MM

92037-1571

1

$14.71

In stock

92075

1

$3.85

In stock

130

BOLT-FLANGED,8X55

130G0855

1
Out of stock

130A

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

130B

BOLT-FLANGED,8X40

130J0840

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0610

1
Out of stock

223A

1

$3.28

In stock
