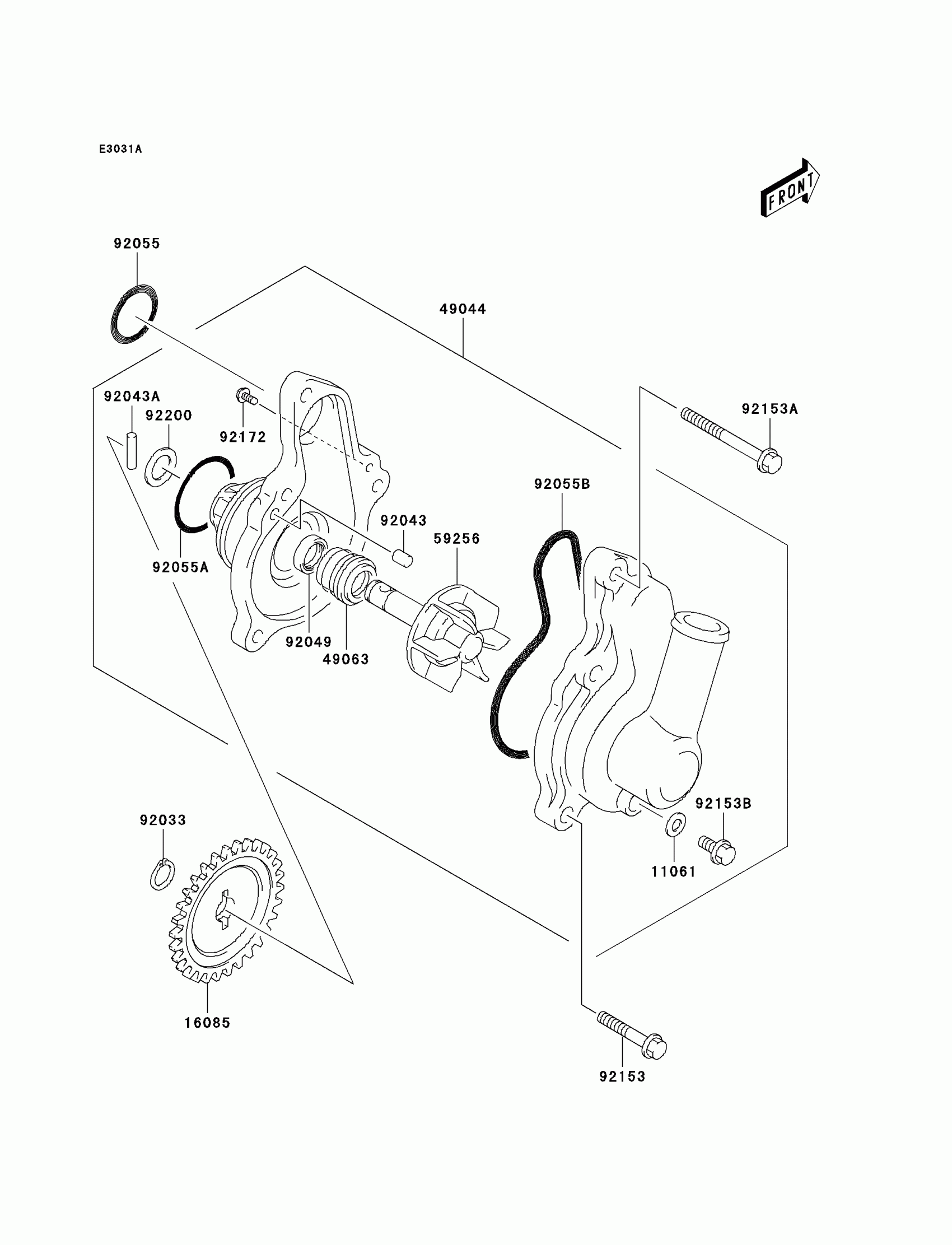

Find the part on the Water Pump diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-S111

1

$3.53

In stock

16085

GEAR,WATER PUMP

16085-S005

1

$39.66

In stock

49044

PUMP-WATER

49044-S007

1

$212.37

In stock

49063

1

$33.69

In stock

59256

IMPELLER

59256-S005

1

$51.33

In stock

92033

RING-SNAP

92033-S001

1

$1.93

In stock

92043

PIN

92043-S071

1

$2.81

In stock

92043A

PIN

92043-S072

1

$3.53

In stock

92049

SEAL-OIL

92049-S071

1
Out of stock

92055

RING-O,D=2.4

92055-S007

1

$1.88

In stock

92055A

RING-O

92055-S015

1

$18.76

In stock

92055B

RING-O

92055-S119

1

$8.54

In stock

92153

BOLT,6X30

92153-S261

1

$2.90

In stock

92153A

BOLT,CLUTCH COVER

92153-S262

1
Out of stock

92153B

BOLT

92153-S468

1

$3.53

In stock

92172

SCREW

92172-S283

1

$2.81

In stock

92200

WASHER

92200-S275

1
Out of stock
