2005 Kawasaki KFX400 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

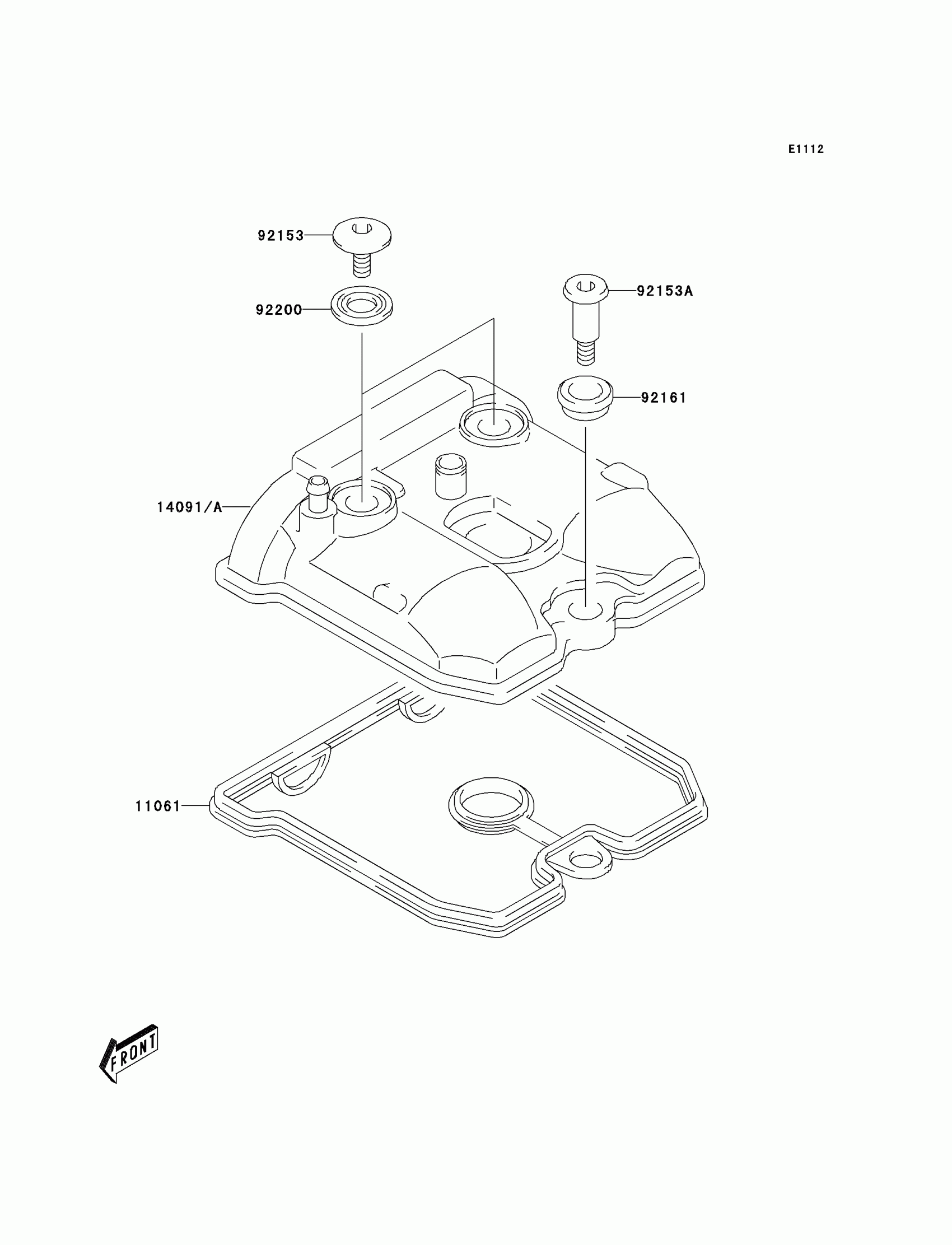

2005 Kawasaki KFX400 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD COVER

11061-S069

1
Out of stock

14091A

COVER,CYLINDER HEAD

14091-S101

1
Out of stock

92153

BOLT,HEAD COVER,7X17.5

92153-S280

1
Out of stock

92153A

BOLT,HEAD COVER,7X31

92153-S281

1
Out of stock

92161

1

$3.98

In stock

92200

WASHER

92200-S015

1
Out of stock
← Cylinder Head Engine Cover →
