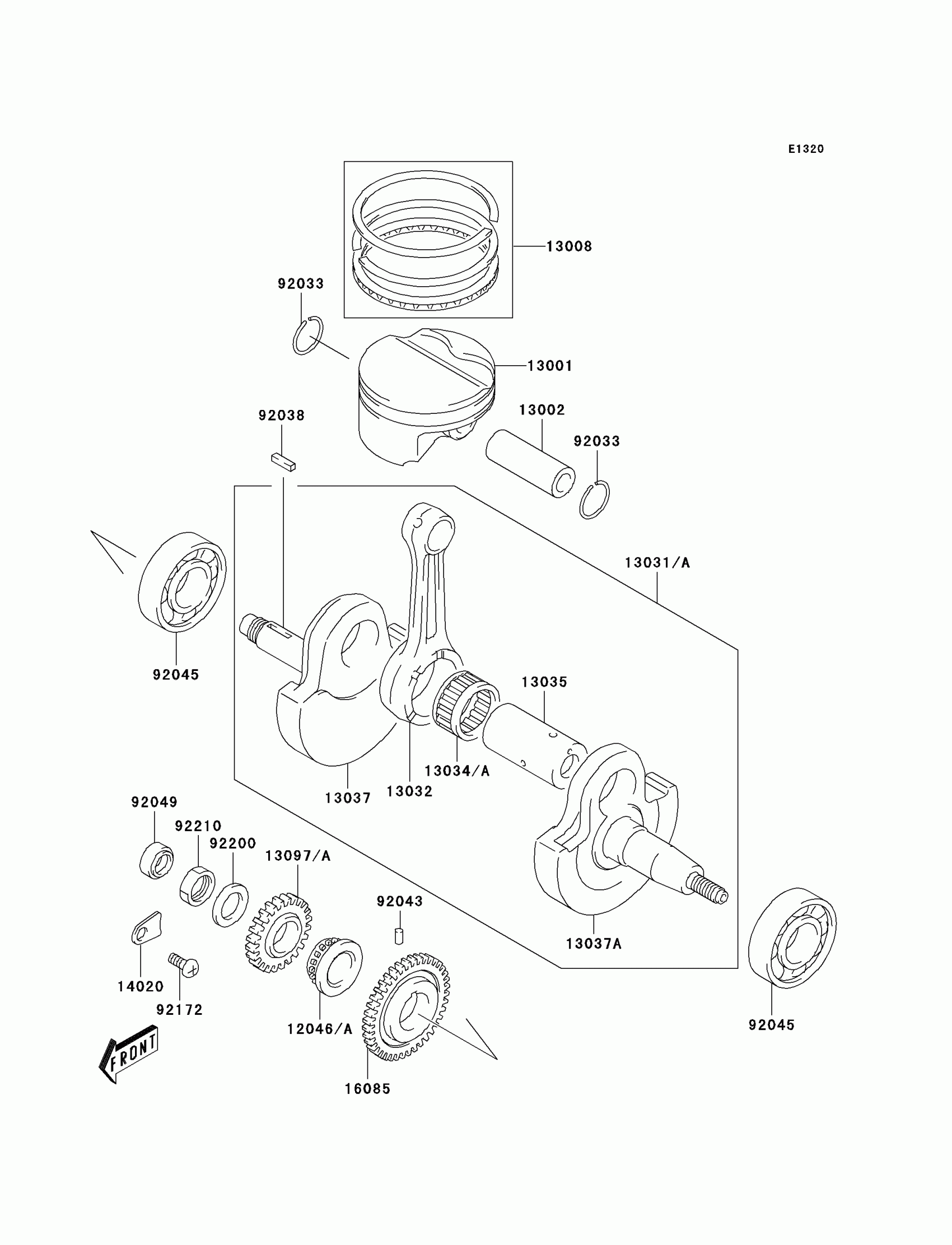

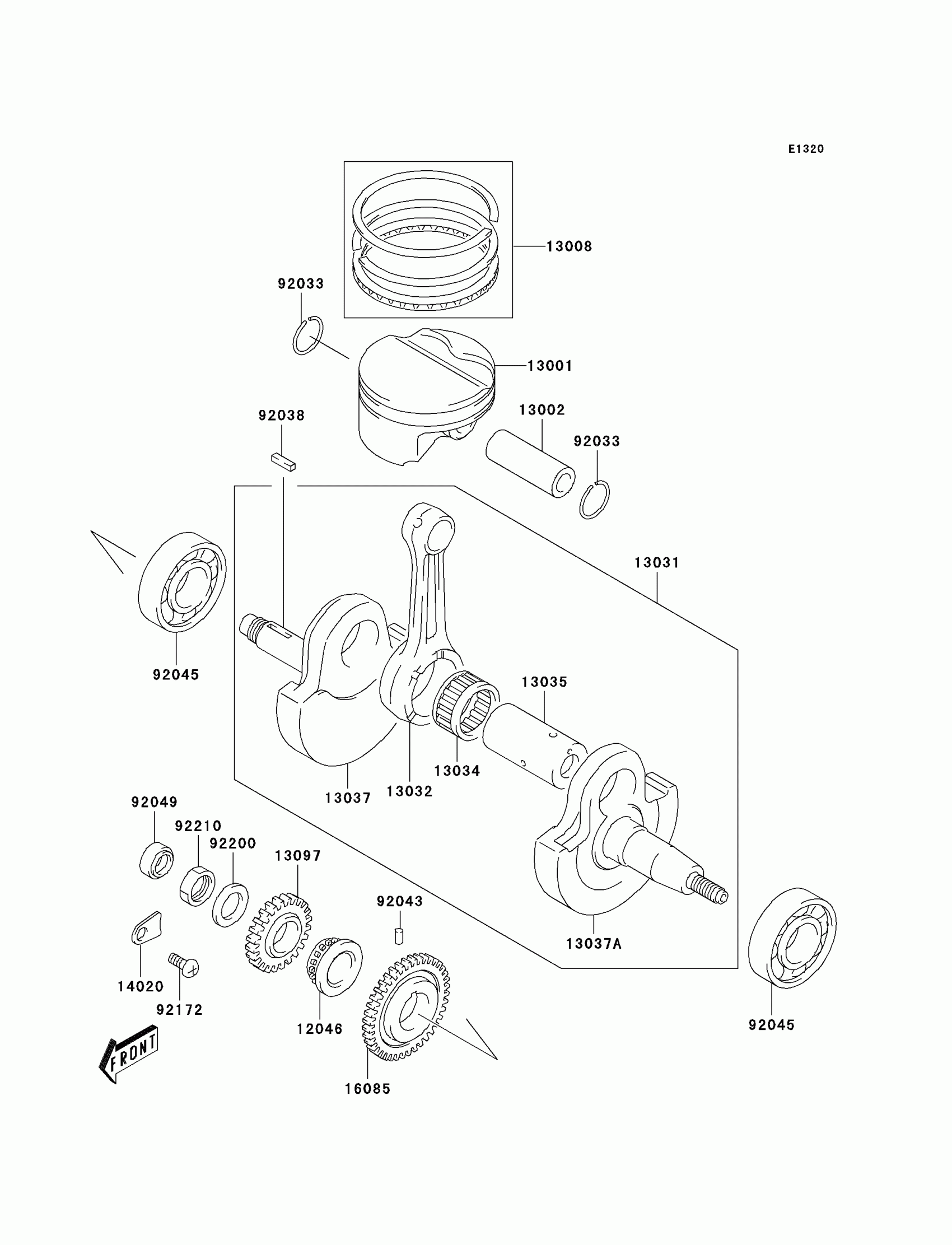

Find the part on the Crankshaft/piston diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046A

SPROCKET,CAM CHAIN

12046-S006

1
Out of stock

13001

PISTON-ENGINE

13001-S006

1
Out of stock

13002

PIN-PISTON

13002-S006

1
Out of stock

13008

RING-SET-PISTON

13008-S008

1
Out of stock

13031A

CRANKSHAFT-COMP

13031-S012

1
Out of stock

13032

ROD-CONNECTING

13032-S007

1
Out of stock

13034A

BEARING-BIG END

13034-S008

1
Out of stock

13035

PIN-CRANK

13035-S006

1
Out of stock

13037

CRANKSHAFT,RH

13037-S011

1
Out of stock

13037A

CRANKSHAFT,LH

13037-S012

1
Out of stock

13097A

GEAR-PRIMARY SPUR

13097-S007

1

$67.14

In stock

14020

RETAINER

14020-S009

1

$3.78

In stock

16085

GEAR,CRANK BALANCER

16085-S004

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-S040

1
Out of stock

92038

KEY,PRIMARY DRIVE GEAR

92038-S006

1
Out of stock

92043

PIN,5X8

92043-S008

1
Out of stock

92045

BEARING-BALL,CRANKSHAFT

92045-S054

1
Out of stock

92049

SEAL-OIL,CRANKSHAFT,RH

92049-S048

1
Out of stock

92172

SCREW

92172-S166

1
Out of stock

92200

WASHER

92200-S140

1
Out of stock

92210

NUT,PRIMARY DRIVE GEAR

92210-S102

1
Out of stock
