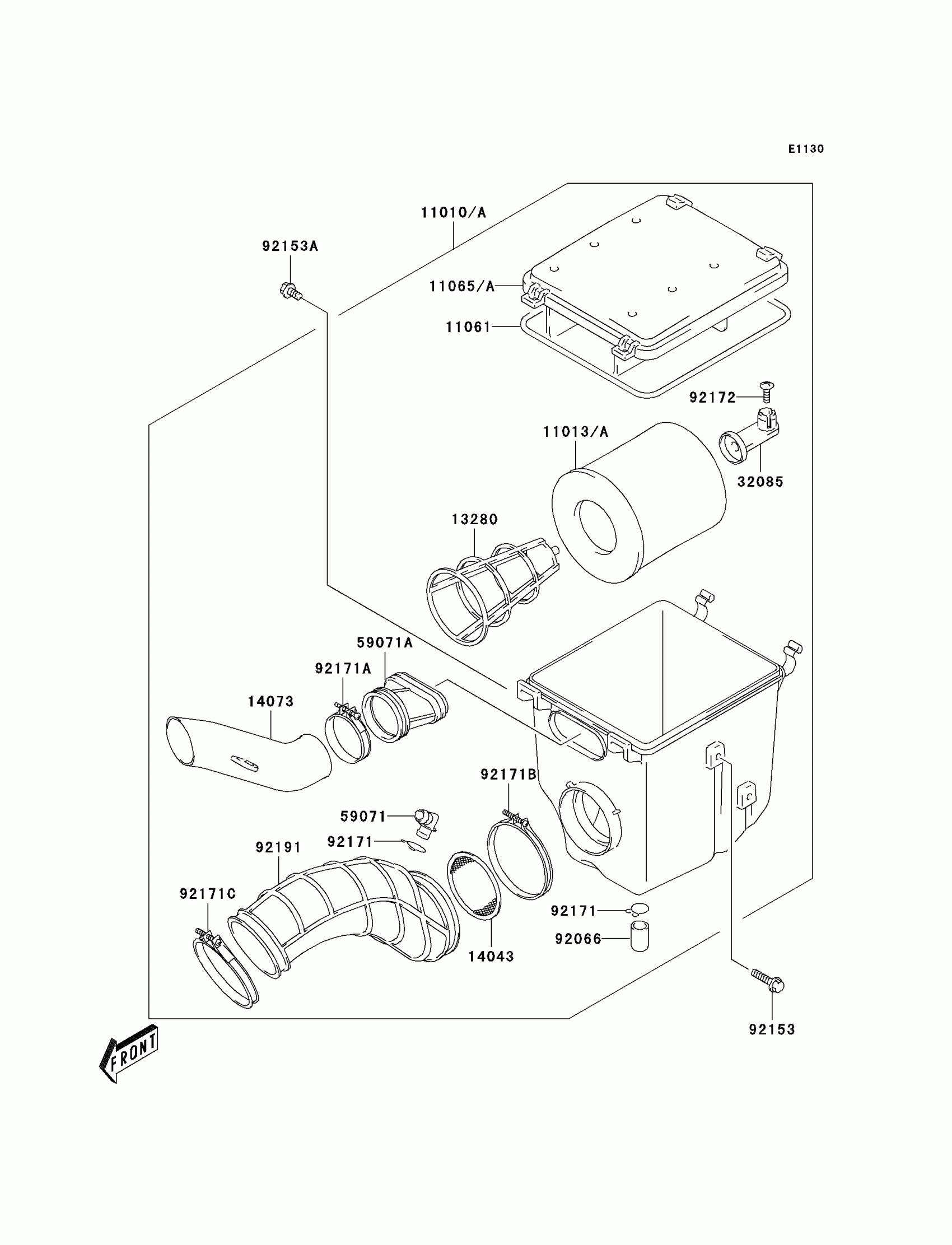

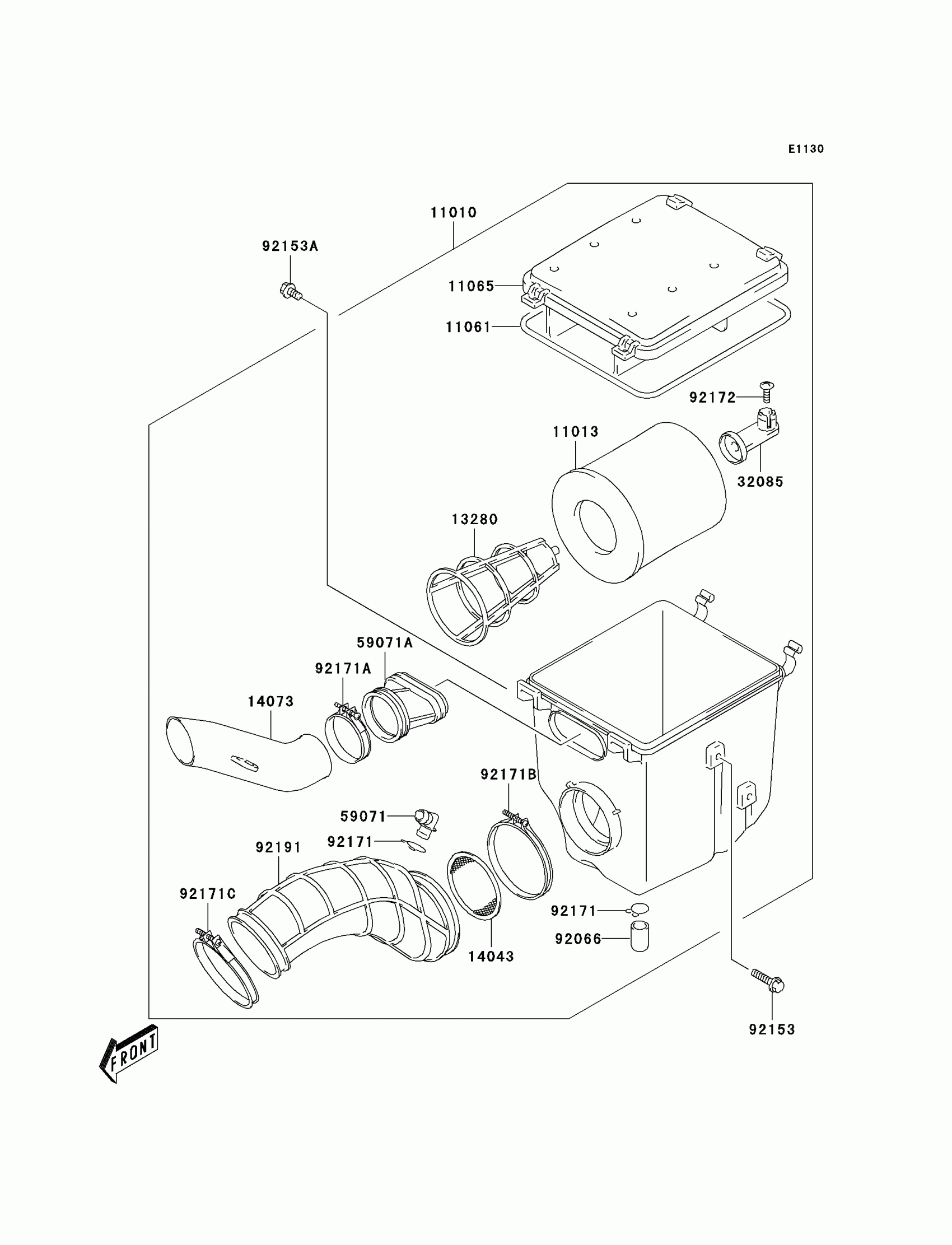

Kawasaki KFX400 Air Cleaner Diagram

Description

Price

11010A

FILTER-ASSY-AIR

11010-S017

Unavailable

11013A

ELEMENT-AIR FILTER

11013-S011

$38.24

11061

GASKET

11061-S075

$5.32

11065A

CAP,AIR CLEANER

11065-S071

Unavailable

13280

HOLDER

13280-S024

$8.90

14043

FILTER

14043-S004

Unavailable

14073

DUCT,INLET

14073-S011

$39.23

32085

STOPPER,HOLDER

32085-S011

$7.07

59071

JOINT

59071-S002

Unavailable

59071A

JOINT,INLET

59071-S005

$17.31

92066

PLUG

92066-S004

$8.53

92153

BOLT

92153-S002

$1.64

92153A

BOLT

92153-S012

$1.42

92171

CLAMP

92171-S006

$2.49

92171A

CLAMP

92171-S089

Unavailable

92171B

CLAMP

92171-S091

$7.73

92171C

CLAMP

92171-S102

$8.08

92172

SCREW

92172-S055

$1.42

92191

TUBE,OUTLET

92191-S060

$52.91
