2005 Kawasaki KFX400 CAM Chain/tensioner Diagram

← All diagrams

Find the part on the CAM Chain/tensioner diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

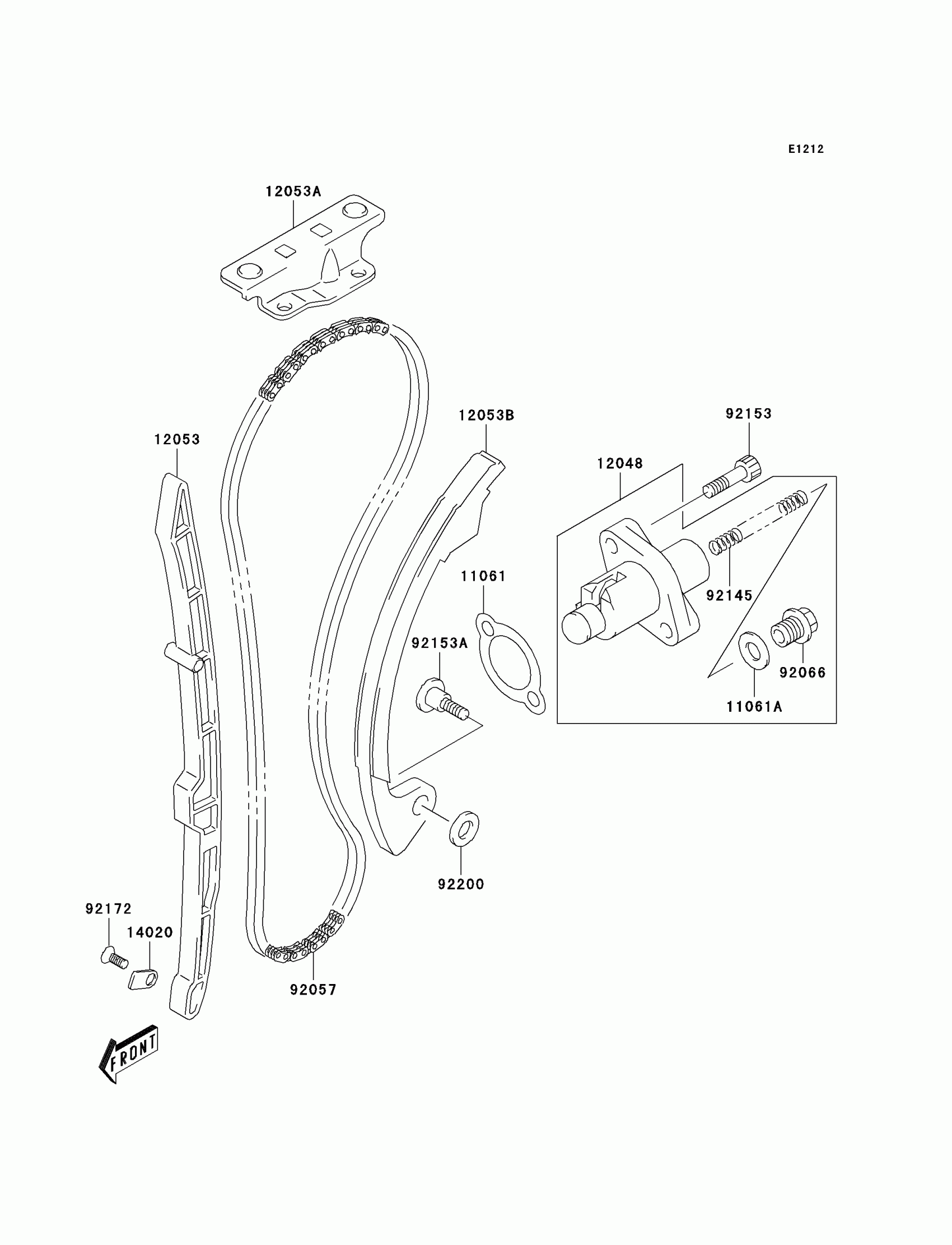

2005 Kawasaki KFX400 CAM Chain/tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,TENSIONER ADJUSTER

11061-S073

1
Out of stock

11061A

GASKET

11061-S074

1
Out of stock

12048

TENSIONER-ASSY

12048-S004

1
Out of stock

12053

GUIDE-CHAIN,FR

12053-S014

1
Out of stock

12053A

GUIDE-CHAIN,CNT

12053-S015

1
Out of stock

12053B

GUIDE-CHAIN

12053-S016

1
Out of stock

14020

RETAINER

14020-S006

1

$3.39

In stock

92057

CHAIN,CAMSHAFT DRIVE

92057-S016

1
Out of stock

92066

PLUG

92066-S034

1
Out of stock

92145

SPRING,STARTER IDLE GEAR

92145-S155

1
Out of stock

92153

BOLT,TENSIONER ADJUSTER

92153-S257

1
Out of stock

92153A

BOLT,CAM CHAIN TENSIONER

92153-S291

1
Out of stock

92172

SCREW

92172-S112

1
Out of stock

92200

WASHER,CAM CHAIN

92200-S128

1
Out of stock
