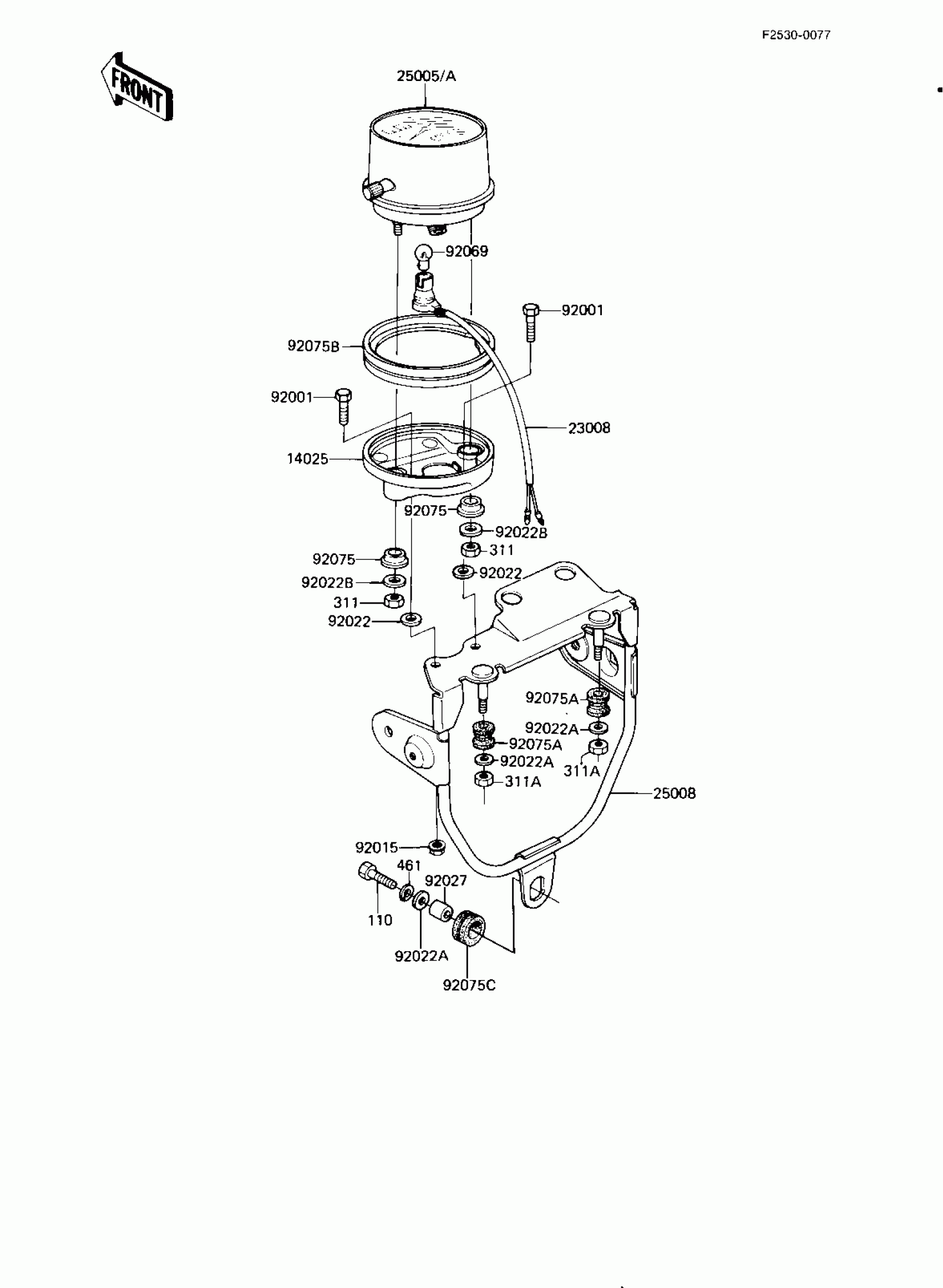

Kawasaki KE175 METER ('82-'83 KE175-D4/D5) Diagram

Description

Price

14025

COVER,METER

14025-1075

Unavailable

23008

SOCKET ASSY,SPEEDOMET

25010-021

$19.29

25005A

SPEEDOMETER,KM/H

25005-1050

$296.35

25008

BRACKET,METER

25008-1009

$45.63

92001

BOLT,HEX HEAD,6X14

92003-204

$3.49

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6M/M,METER

92022-1039

$3.78

92022A

WASHER,6.5X20X1.6

92022-125

$1.08

92022B

WASHER,5.2X16X1.2

92022-263

$1.22

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,6V 3W,CLEAR

92069-053

$3.19

92075

DAMPER,METER

25019-023

$3.28

92075A

DAMPER

92075-024

$3.35

92075B

DAMPER,METER

92075-1102

Unavailable

92075C

DAMPER RUBBER,RR FENR

92075-209

$3.57

110

BOLT-UPSET

112G0625

Unavailable

311

NUT-HEX

311B0500

$0.47

311A

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
