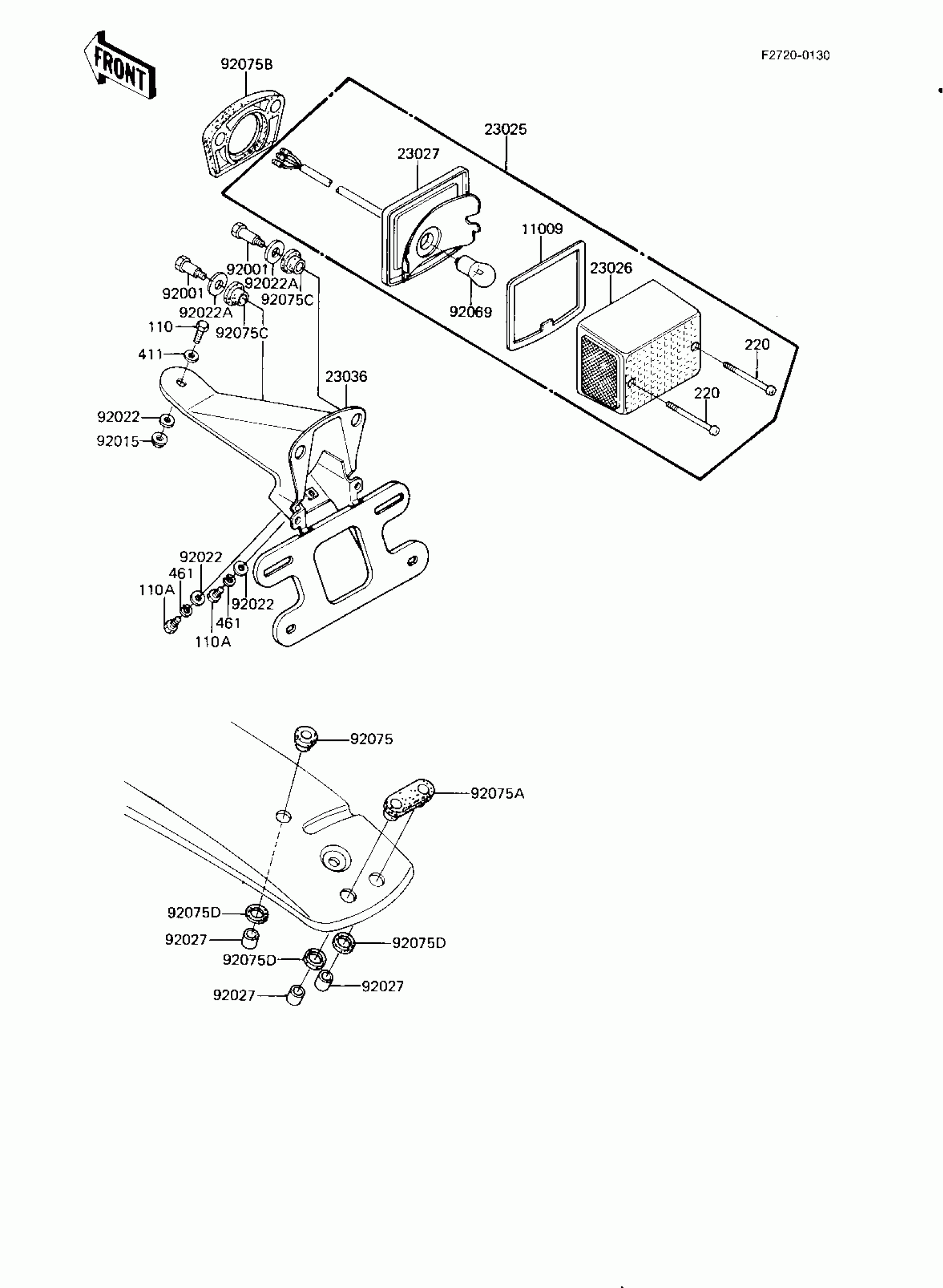

Kawasaki KE175 TAILLIGHT ('82-'83 KE175-D4/D5) Diagram

Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1078

$7.44

23025

LAMP-TAIL

23025-1032

Unavailable

23026

LENS,TAIL LAMP

23026-1003

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1020

$96.26

23036

BRACKET-TAIL LAMP

23036-1010

Unavailable

92001

BOLT,HEX HEAD

92001-1118

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92022A

WASHER,8.5X20X1.6

92022-1561

$3.29

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92069

BULB,6V 32/3CP

92069-074

Unavailable

92075

DAMPER,TAIL LAMP

92075-1004

$3.63

92075A

DAMPER,TAIL LAMP

92075-1005

Unavailable

92075B

DAMPER,TAIL LAMP

92075-1094

Unavailable

92075C

DAMPER

92075-1095

$3.63

92075D

DAMPER,RUBBER

92075-310

Unavailable

110

BOLT-UPSET

112G0630

Unavailable

110A

BOLT-UPSET

112G0630

Unavailable

220

SCREW-PAN-CROS,4X40

220R0440

$5.27

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
