1983 Kawasaki KE175 Ignition Switch/locks/reflectors ('82-'8 Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors ('82-'8 diagram for your 1983 Kawasaki KE175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

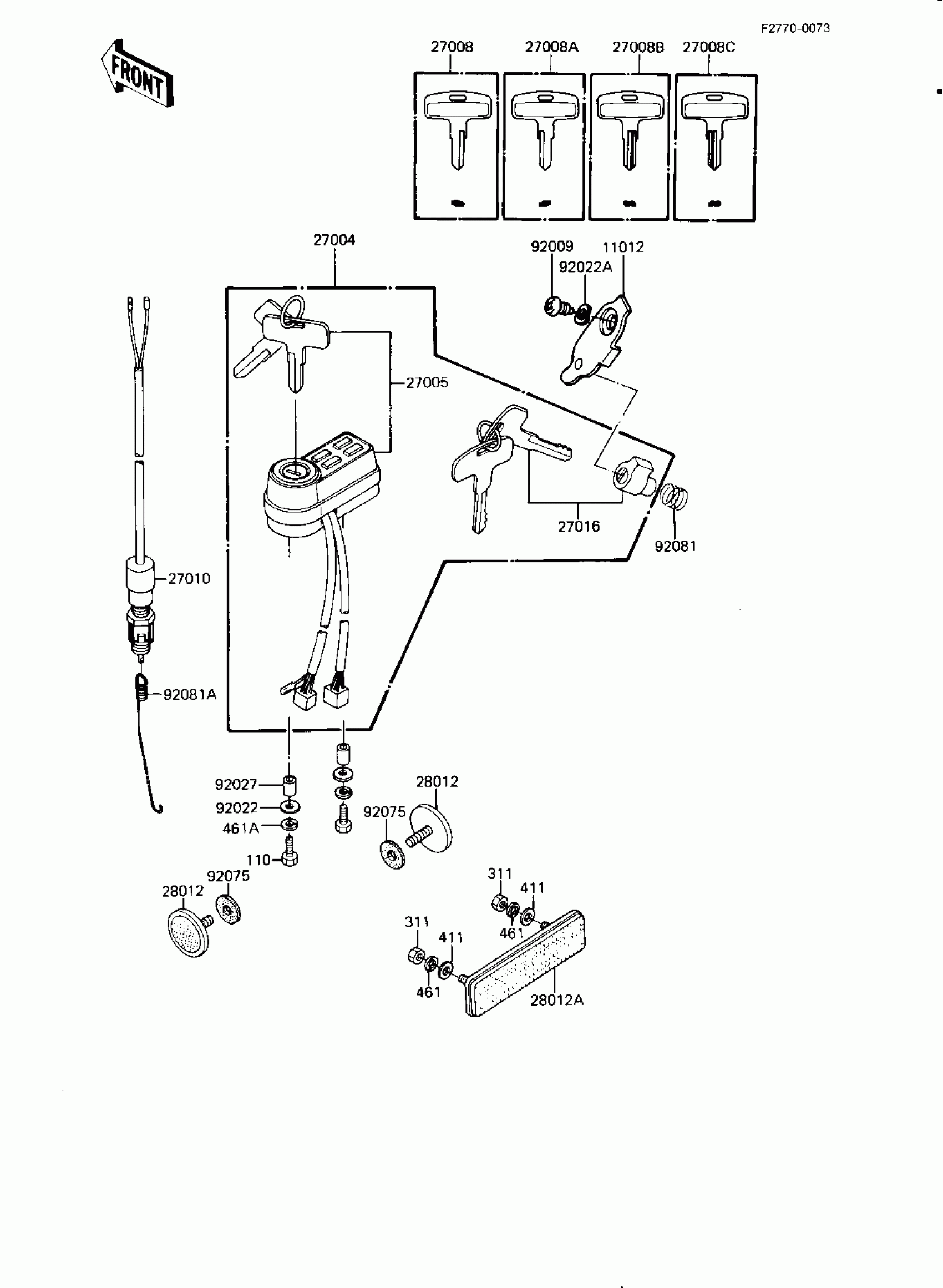

1983 Kawasaki KE175 Ignition Switch/locks/reflectors ('82-'8 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING LOCK

11012-1134

1
Out of stock

27004

LOCK ASSY,KE175-D2

27004-5018

1
Out of stock

27005

SWITCH ASSY,IGNITION

27005-1005

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1024

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1025

1
Out of stock

27008B

KEY,BLANK

27008-1026

1
Out of stock

27008C

KEY,BLANK

27008-1027

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-025

1
Out of stock

27016

LOCK-ASSY,STEERING

27016-042

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-016

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

92009

SCREW,3.51MM

92008-007

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92022A

WASHER,WAVE

92097-003

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92075

DAMPER,REFLECTOR

92094-011

1
Out of stock

92081

SPRING,STEERING LOCK

27032-001

1
Out of stock

92081A

SPRING,BRAKE SWITCH

92081-1082

1
Out of stock

110

BOLT 6X22

112B0622

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

411

WASHER-PLAIN,5MM

411B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
