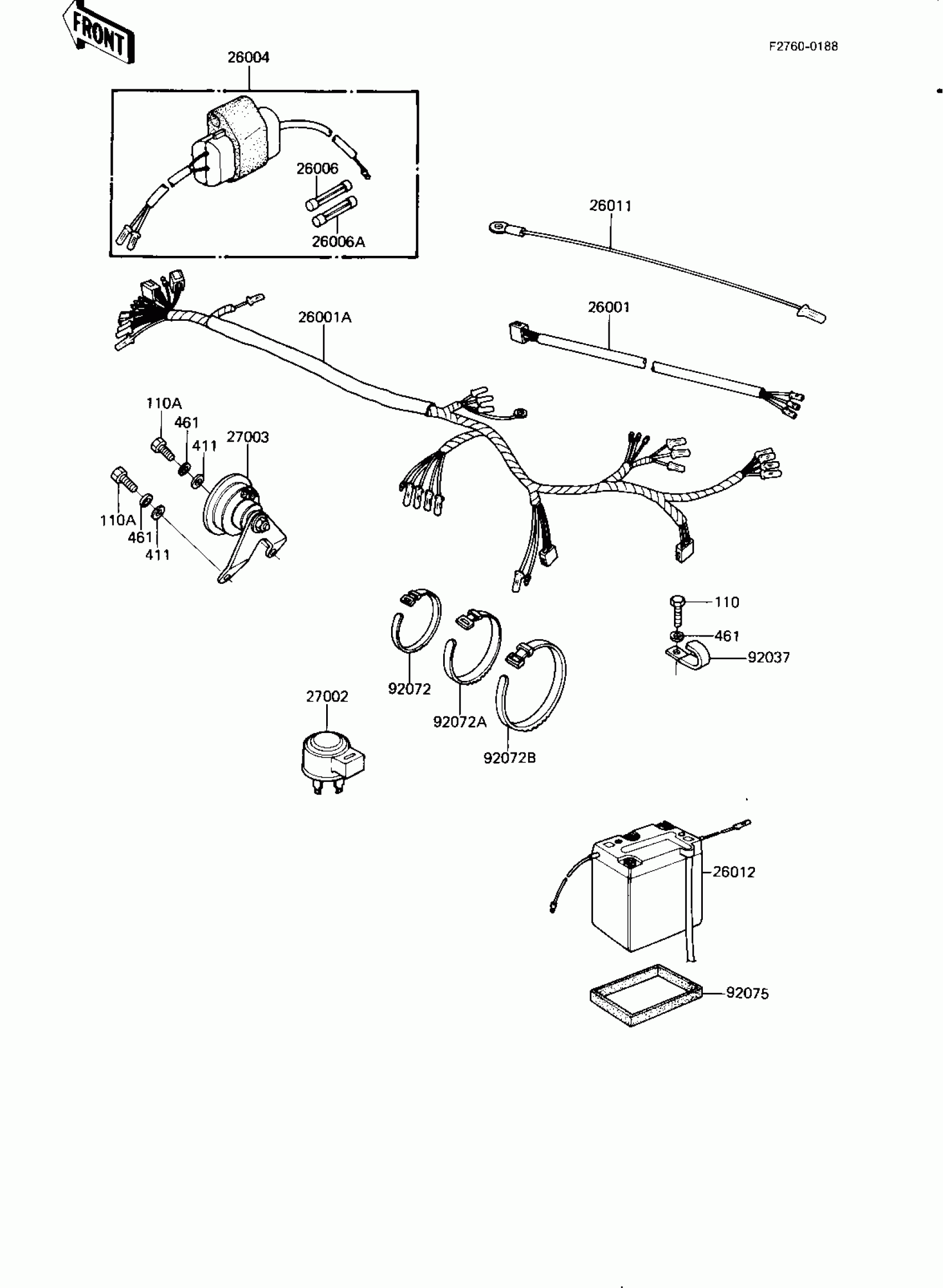

Kawasaki KE175 CHASSIS ELECTRICAL EQUIPMENT ('82-'83 KE Diagram

Description

Price

26001

HARNESS,TAIL LAMP

26001-1007

$17.51

26001A

WIRING HARNESS,MAIN

26001-1049

$157.19

26004

FUSE-ASSY

26004-1010

Unavailable

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26006A

FUSE,15A,L=30

26006-1003

$4.47

26011

WIRE-LEAD

26011-093

Unavailable

26012

GS BAT 6N6-1C

K26012-1016

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

27003

HORN

27003-1008

$58.90

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=218

92072-032

$3.81

92075

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET,6X16

112G0616

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
