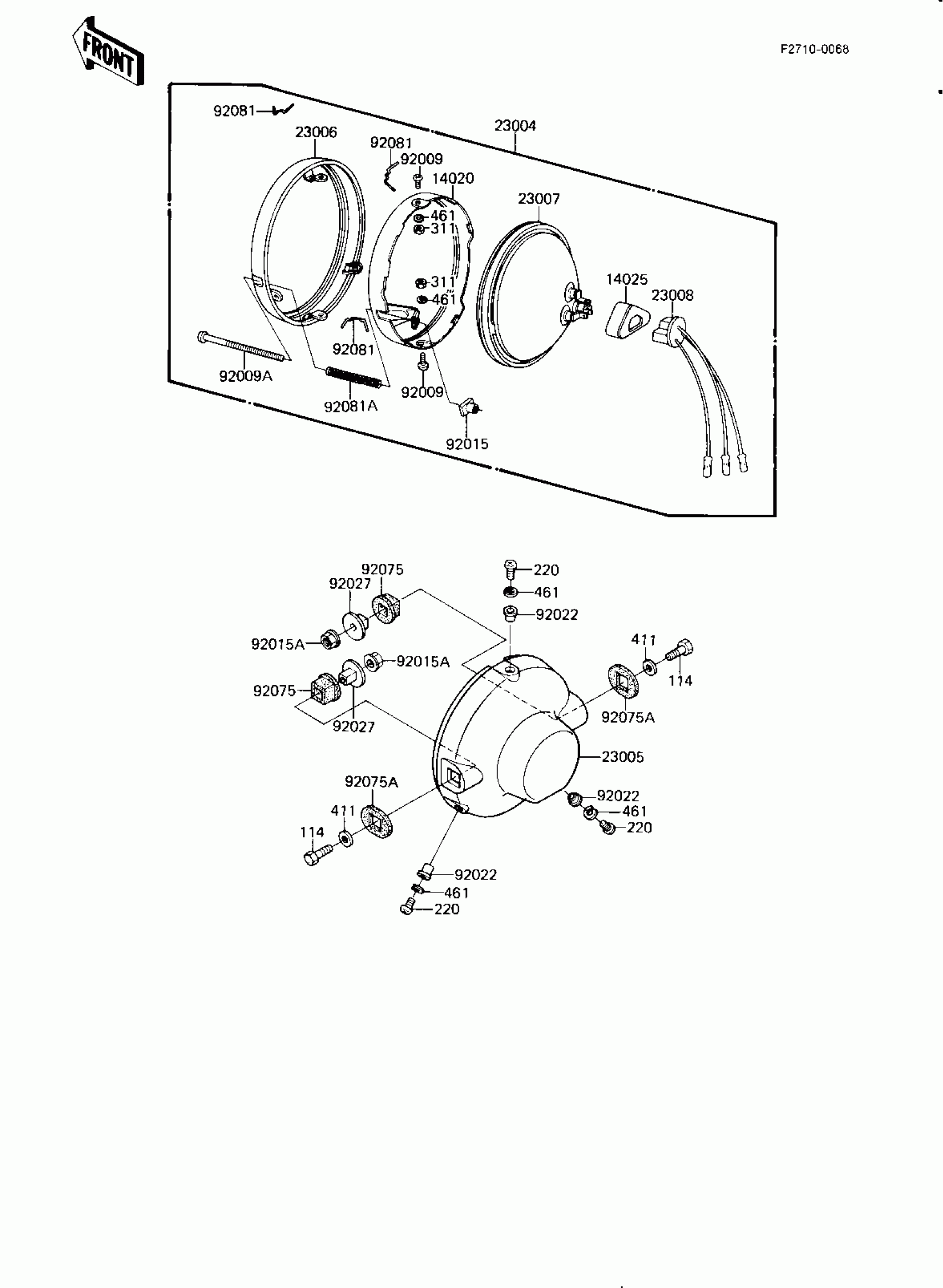

Kawasaki KE175 HEADLIGHT ('82-'83 KE175-D4/D5) Diagram

Description

Price

14020

RETAINER,SEALED BEAM

23072-002

$39.81

14025

COVER,HEAD LAMP SOCKET

23081-001

$7.92

23004

LAMP UNIT,HEAD

23004-1018

$182.73

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

Unavailable

23006

RIM-LAMP

23006-1004

$74.16

23007

SEALED BEAM UNIT

23007-073

Unavailable

23008

SOCKET-ASSY,HEAD LAMP

23008-044

$20.90

92009

SCREW,LENS FITTING

23019-026

$4.02

92009A

SCREW,FOCUS ADJUSTING

23019-027

$4.02

92015

NUT,ADJUSTING

23020-012

$3.53

92015A

NUT,FLANGED,8MM

92015-1014

$0.57

92022

WASHER

23021-010

$3.29

92027

COLLAR,L=15.6

92027-1105

$7.49

92075

DAMPER,HEAD LAMP

92075-1077

$7.14

92075A

DAMPER,HEAD LAMP

92075-1078

$4.92

92081

SPRING,HEAD LAMP LENS

23009-015

$4.78

92081A

SPRING,FOCUS ADJUSTING

23014-012

$5.14

114

BOLT-SMALL,8X30

114N0830

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.47

311

NUT-HEX

311B0400

Unavailable

411

WASHER-PLAIN,8MM

411D0800

$2.15

461

WASHER SPRING 5MM

461F0500

Unavailable
