1983 Kawasaki KE175 Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1983 Kawasaki KE175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

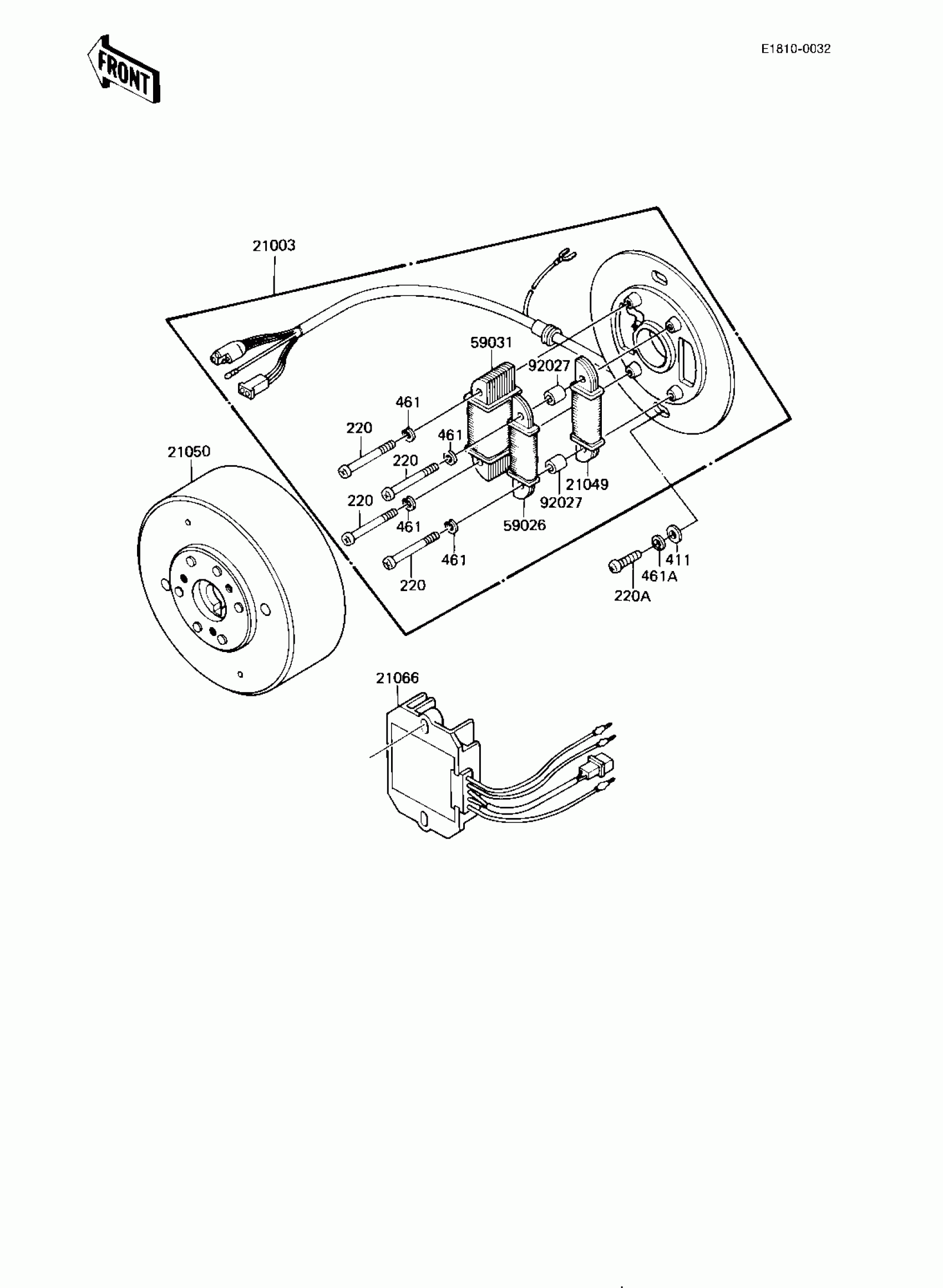

1983 Kawasaki KE175 Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR ASSY,MAGNETO

21003-1031

1

$288.82

In stock

21049

COIL,EXITING

21049-1006

1

$142.68

In stock

21050

FLYWHEEL,MAGNETO

21050-1013

1

$962.84

In stock

21066

REGULATOR-VOLTAGE

21066-1012

1
Out of stock

59026

COIL,PULSING

59026-1008

1

$143.78

In stock

59031

COIL,CHARGING

59031-1003

1

$128.12

In stock

92027

COLLAR,COIL

92027-1221

1

$8.44

In stock

220

SCREW-PAN-CROS

220B0540

1
Out of stock

220A

1

$4.61

In stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
