2005 Kawasaki KDX50 Swingarm Diagram

← All diagrams

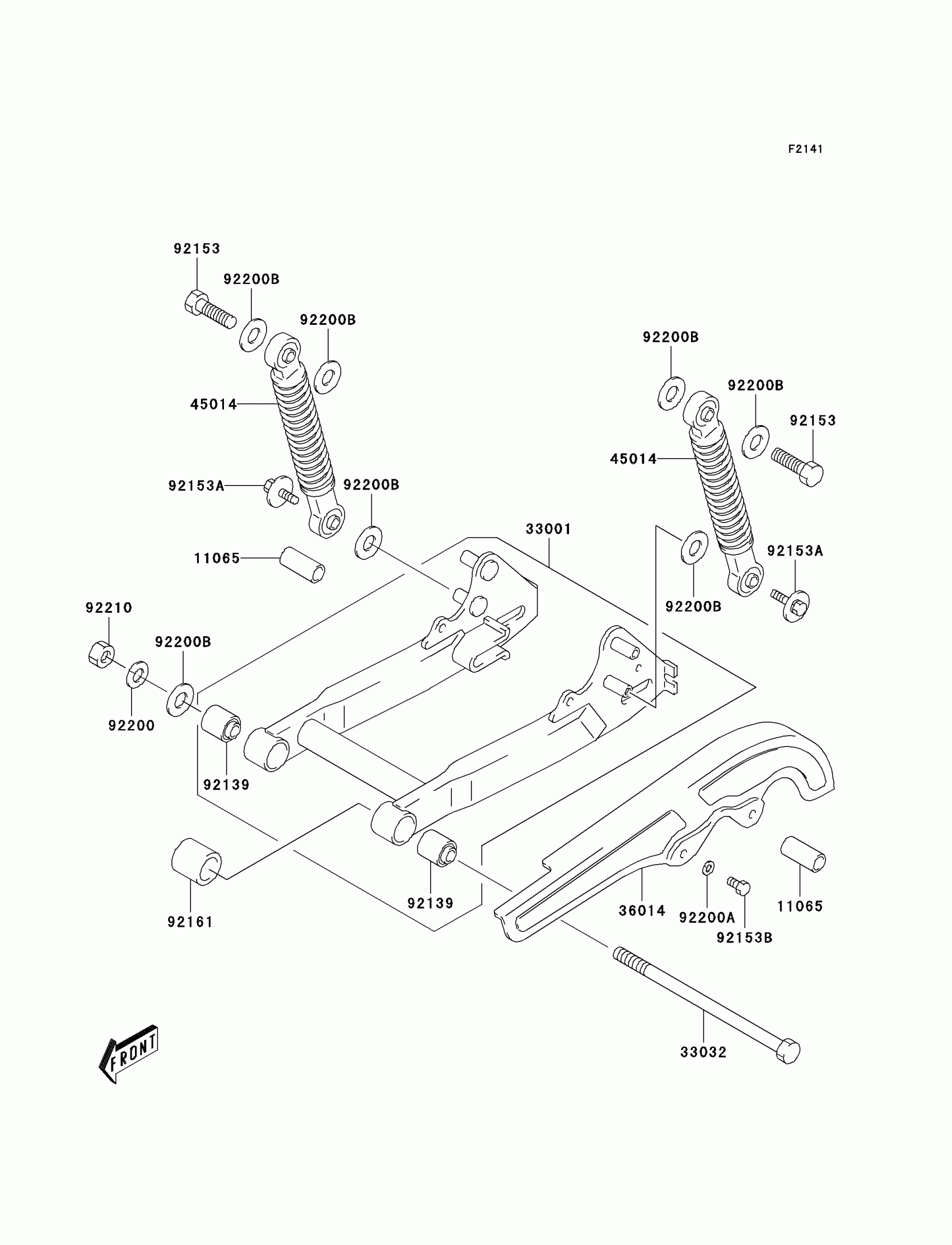

Find the part on the Swingarm diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-S044

1

$2.68

In stock

33001

ARM-COMP-SWING,B.SILVER

33001-S007-530

1

$114.24

In stock

33032A

SHAFT-SWING ARM

33032-S006

1

$15.51

In stock

36014

CASE-CHAIN

36014-S006

1

$32.06

In stock

45014

SHOCKABSORBER

45014-S020

1

$78.47

In stock

92139

BUSHING,10X22X28

92139-S031

1

$7.63

In stock

92153

BOLT,10X35

92153-S324

1
Out of stock

92153A

BOLT,6X12

92153-S325

1

$2.51

In stock

92153B

BOLT,6X12

92153-S326

1

$1.64

In stock

92161A

DAMPER

92161-S181

1
Out of stock

92200

WASHER,MAGNETO LOCK

92200-S091

1
Out of stock

92200A

WASHER

92200-S102

1
Out of stock

92200B

WASHER,10.5X22X1.6

92200-S173

1
Out of stock

92210

NUT

92210-S002

1
Out of stock
