2005 Kawasaki KDX50 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

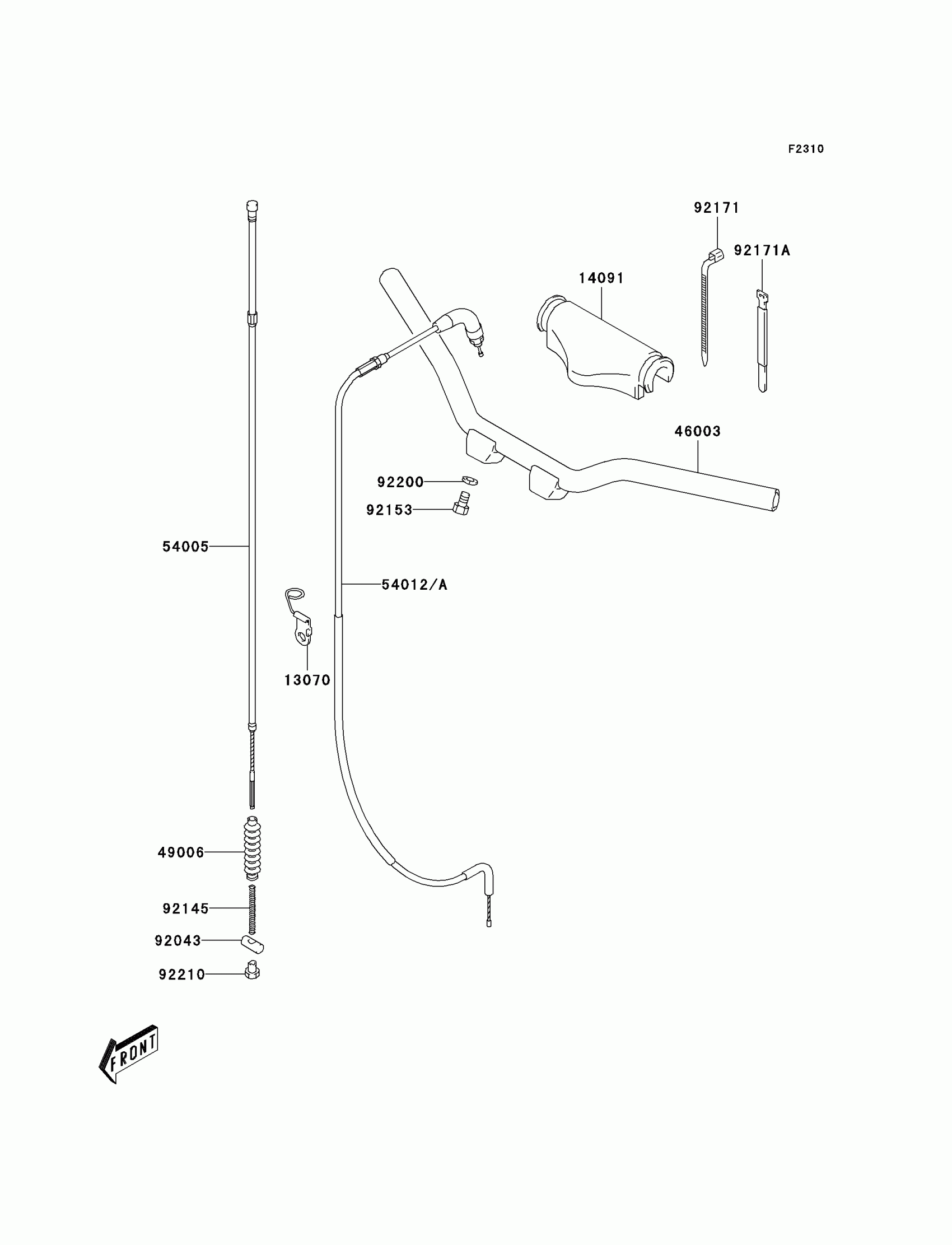

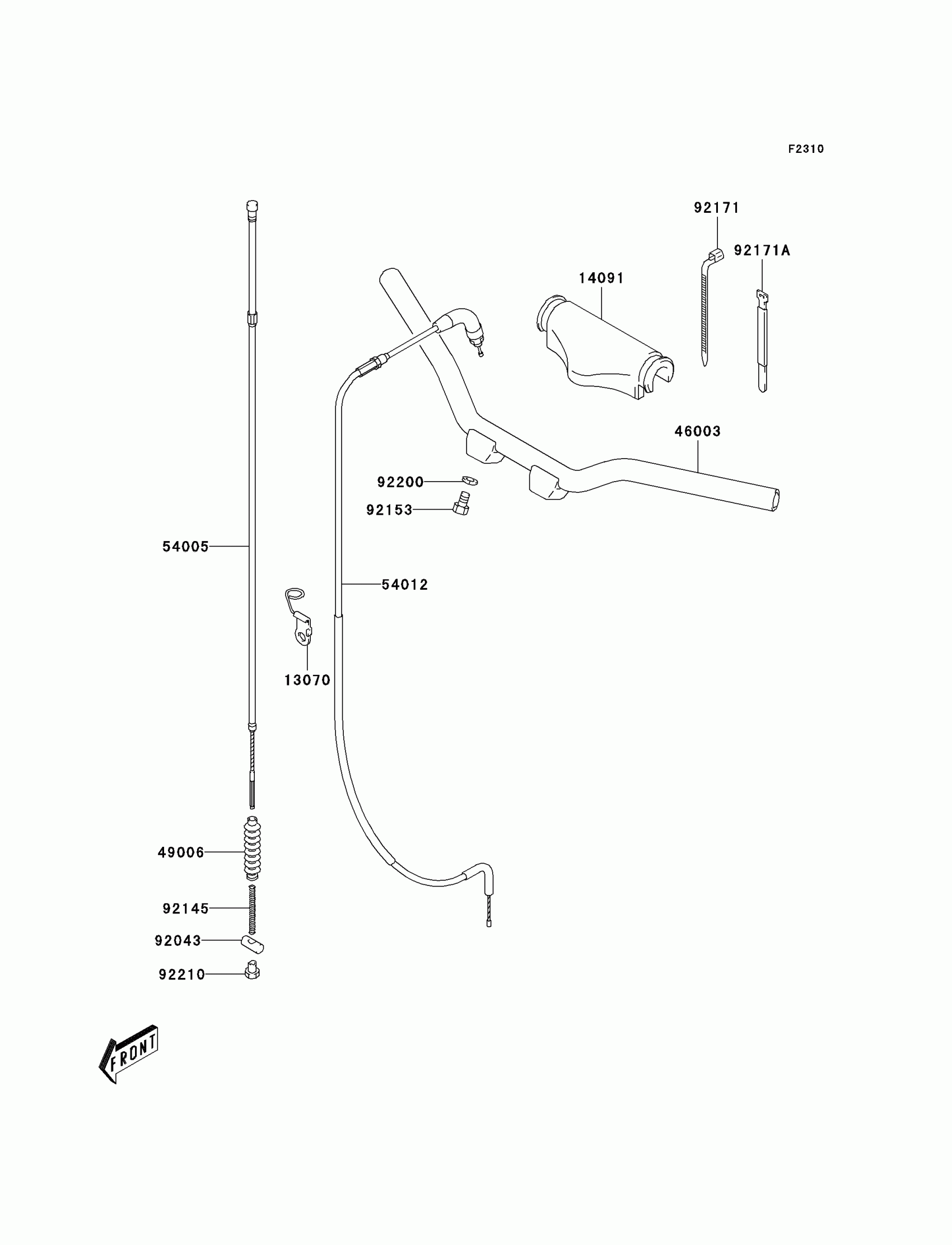

2005 Kawasaki KDX50 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,CABLE

13070-S017

1

$8.63

In stock

14091

COVER,HANDLE

14091-S099

1
Out of stock

46003

HANDLE,BLACK

46003-S008-504

1

$49.00

In stock

49006

1

$2.49

In stock

54005

CABLE-BRAKE

54005-S012

1

$15.69

In stock

54012A

CABLE-THROTTLE

54012-S012

1

$24.12

In stock

92043

PIN

92043-S006

1

$2.00

In stock

92145

1

$2.08

In stock

92153

BOLT

92153-S321

1

$1.64

In stock

92171

CLAMP,L=125

92171-S014

1
Out of stock

92171A

CLAMP,L=140

92171-S106

1
Out of stock

92200

WASHER

92200-S167

1
Out of stock

92210

NUT

92210-S014

1
Out of stock
