2005 Kawasaki KDX50 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

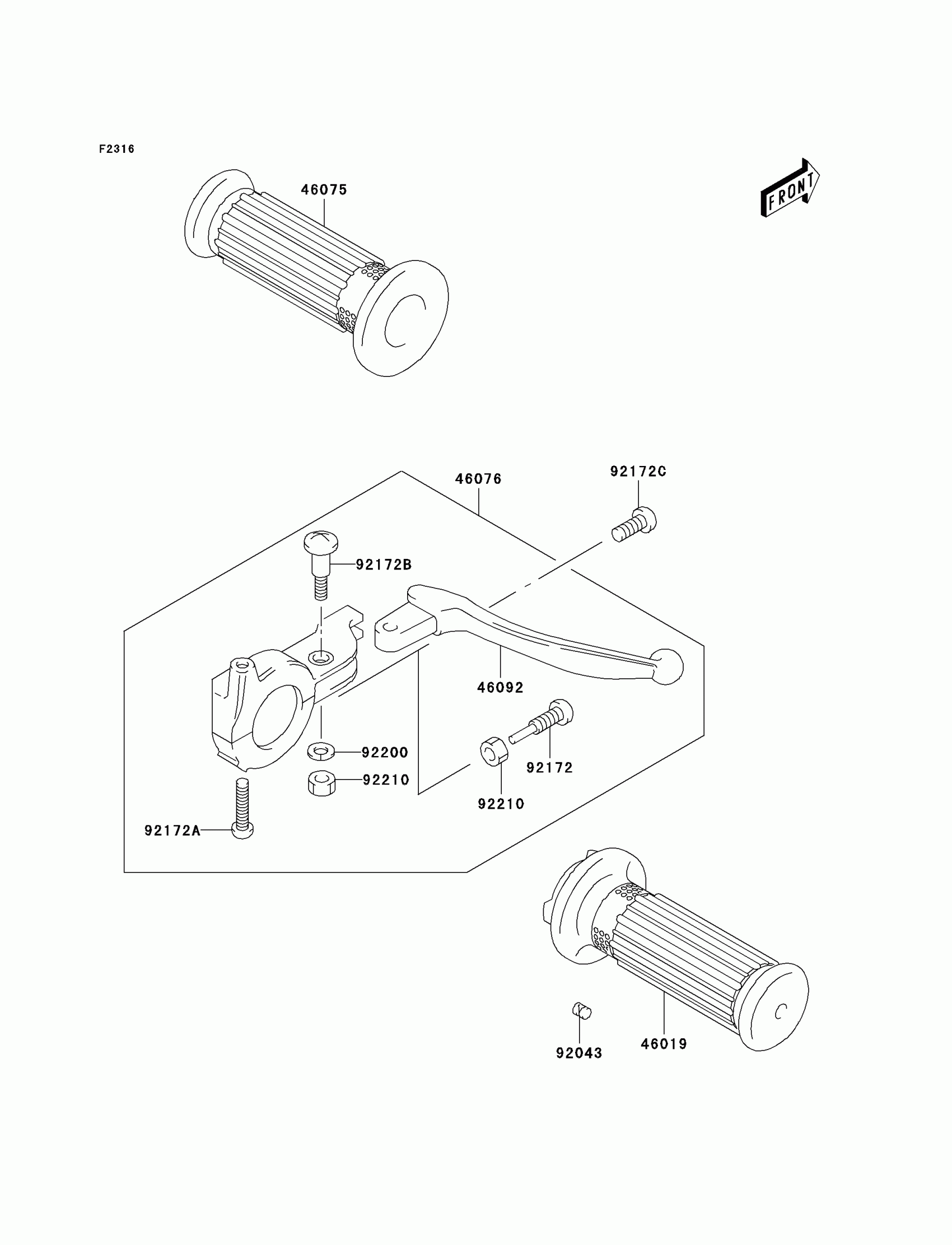

2005 Kawasaki KDX50 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

46019

GRIP-ASSY,THROTTLE

46019-S004

1

$10.27

In stock

46075

GRIP,LH

46075-S007

1

$4.90

In stock

46076

LEVER-ASSY-GRIP

46076-S008

1

$34.44

In stock

46092

LEVER-GRIP

46092-S012

1

$7.93

In stock

92043

1

$4.10

In stock

92172

SCREW

92172-S184

1

$4.03

In stock

92172A

SCREW,5X6

92172-S186

1

$1.63

In stock

92172B

SCREW

92172-S190

1

$4.17

In stock

92172C

SCREW

92172-S191

1

$1.88

In stock

92200

WASHER,BRAKE LEVER

92200-S168

1
Out of stock

92210

NUT

92210-S065

1
Out of stock
