2005 Kawasaki KDX50 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

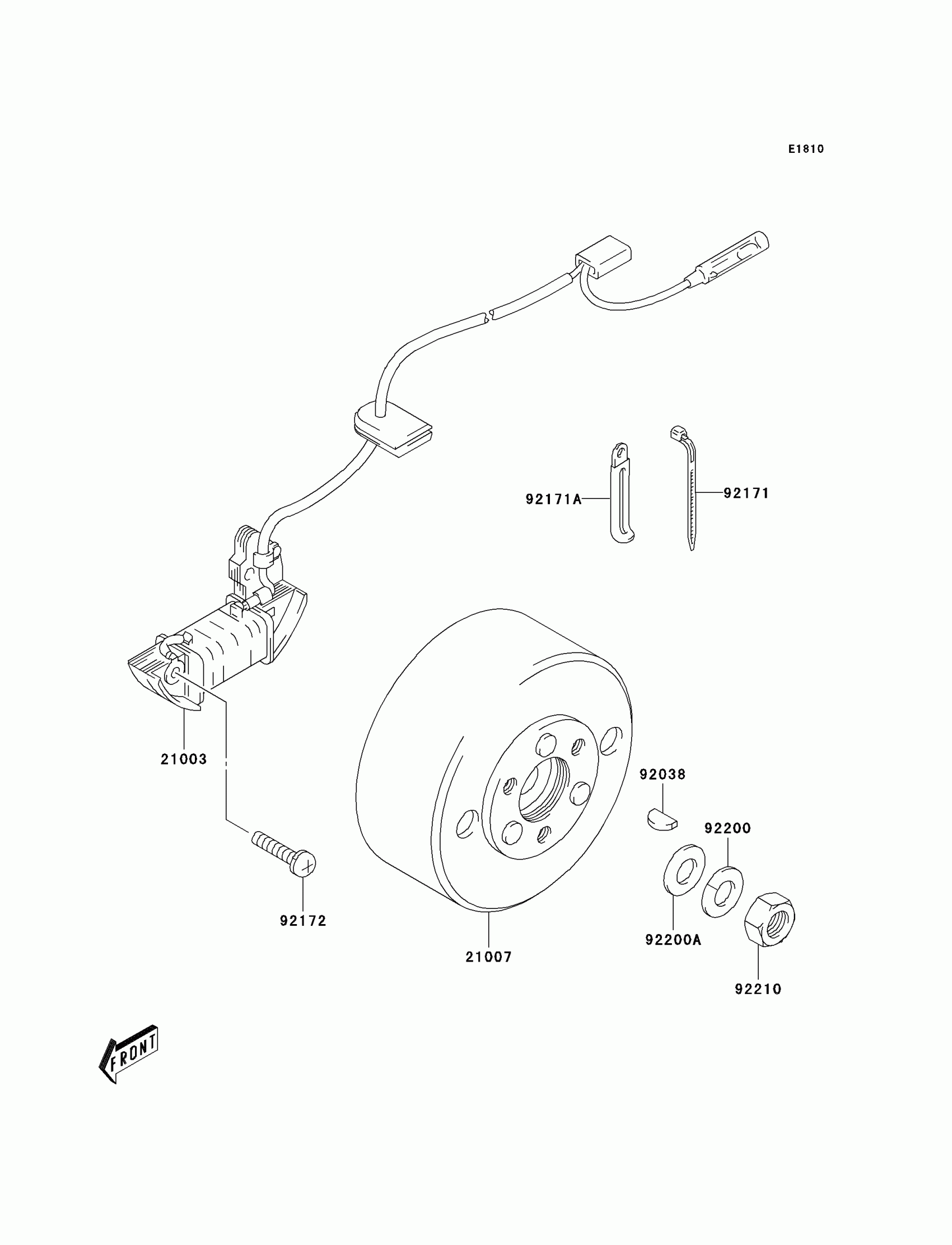

2005 Kawasaki KDX50 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003A

STATOR

21003-S008

1

$86.01

In stock

21007A

ROTOR

21007-S010

1
Out of stock

92038

KEY,MAGNETO ROTOR

92038-S001

1

$2.00

In stock

92171

CLAMP,L=165

92171-S016

1
Out of stock

92171B

CLAMP,L=45

92171-S132

1

$1.88

In stock

92172

SCREW,MAGNETO COIL

92172-S130

1
Out of stock

92200

WASHER,MAGNETO LOCK

92200-S091

1
Out of stock

92200A

WASHER,MAGNETO

92200-S092

1
Out of stock

92210

NUT

92210-S002

1
Out of stock
