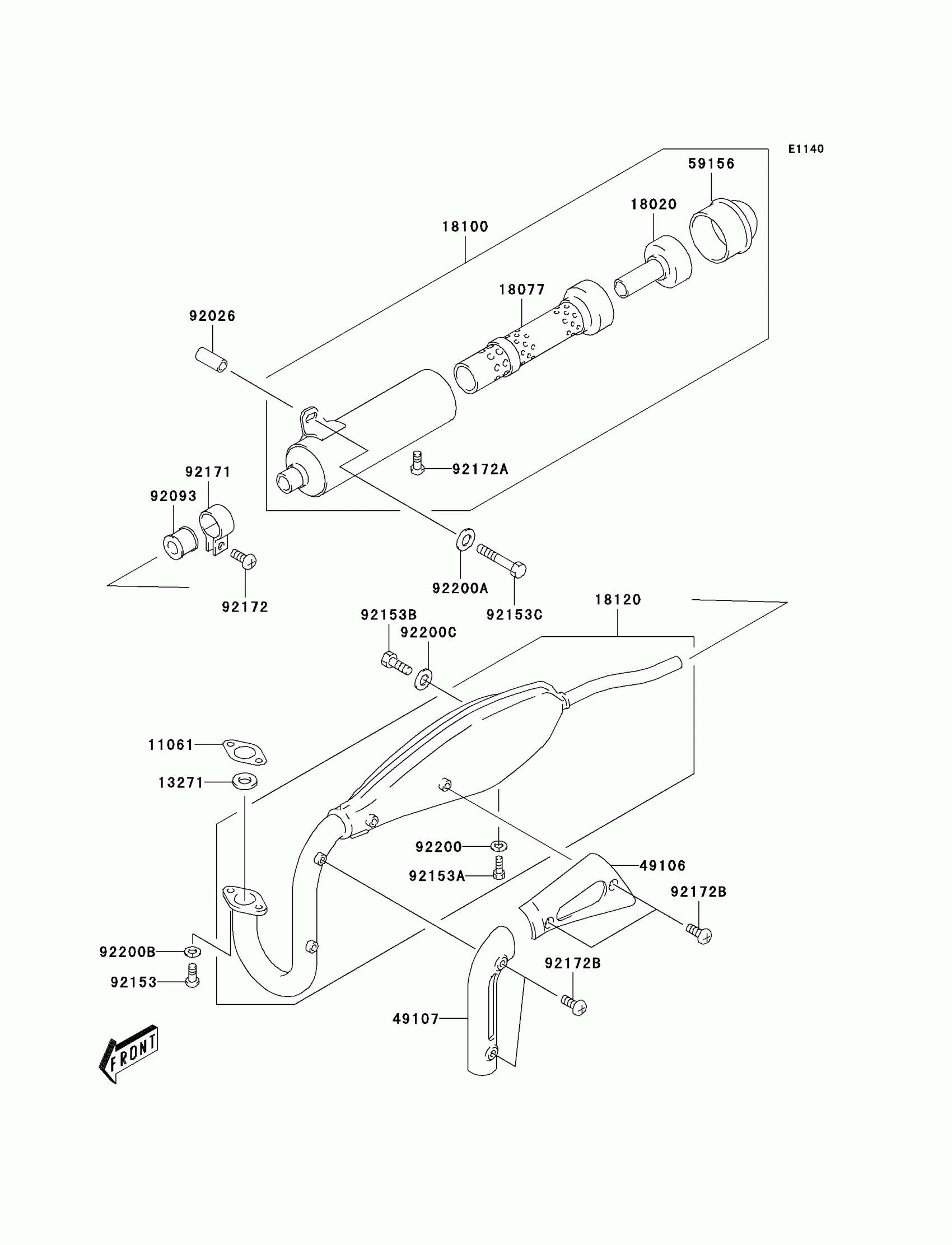

Find the part on the Muffler diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-S081

1

$9.42

In stock

13271

PLATE,EXHAUST PIPE

13271-S027

1

$2.46

In stock

18020

BAFFLE

18020-S002

1
Out of stock

18077

ARRESTER-SPARK

18077-S001

1
Out of stock

18100

BODY-ASSY-MUFFLER

18100-S003

1

$132.19

In stock

18120

CHAMBER-EXHAUST

18120-S001

1
Out of stock

49106

COVER-MUFFLER

49106-S005

1

$10.07

In stock

49107

COVER-EXHAUST PIPE

49107-S005

1

$8.54

In stock

59156

PIPE-TAIL

59156-S002

1

$16.29

In stock

92026

SPACER

92026-S108

1

$5.27

In stock

92093

SEAL,MUFFLER

92093-S042

1

$8.71

In stock

92153

BOLT

92153-S024

1

$1.98

In stock

92153A

BOLT

92153-S125

1
Out of stock

92153B

BOLT

92153-S314

1

$1.86

In stock

92153C

BOLT

92153-S315

1

$2.76

In stock

92171

CLAMP,CONNECTOR

92171-S105

1

$5.12

In stock

92172

SCREW

92172-S008

1

$1.64

In stock

92172A

SCREW,STARTER

92172-S128

1

$1.64

In stock

92172B

SCREW,5X6

92172-S186

1

$1.63

In stock

92200

WASHER

92200-S003

1
Out of stock

92200A

WASHER

92200-S028

1
Out of stock

92200B

WASHER

92200-S102

1
Out of stock

92200C

WASHER

92200-S169

1
Out of stock
