2005 Kawasaki KDX50 Crankshaft Diagram

← All diagrams

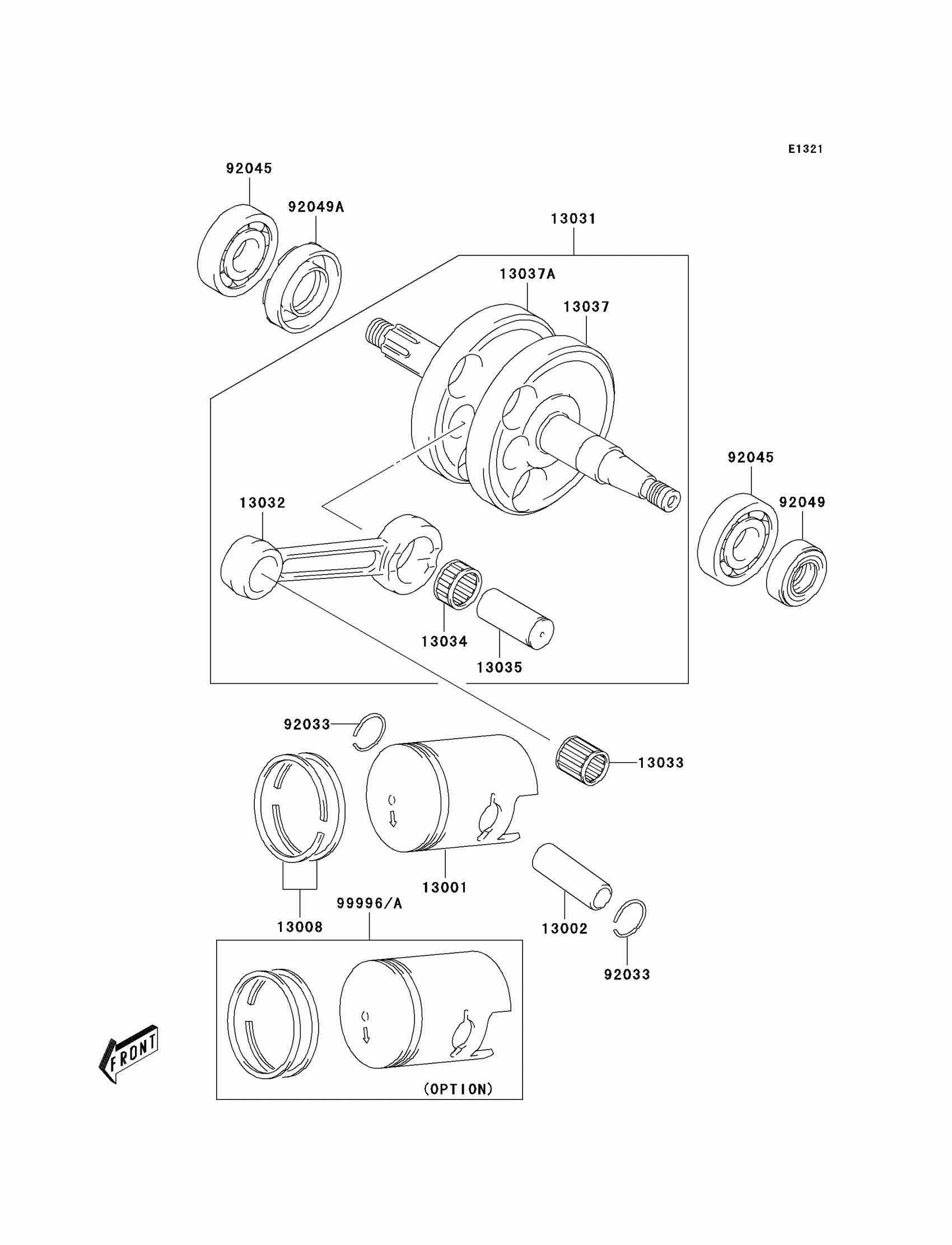

Find the part on the Crankshaft diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-S004

1

$61.47

In stock

13002

PIN-PISTON,PISTON

13002-S004

1

$7.76

In stock

13008

RING-SET-PISTON,STD

13008-S004

1

$24.93

In stock

13031

CRANKSHAFT-COMP

13031-S007

1

$319.69

In stock

13032

ROD-CONNECTING

13032-S004

1

$62.19

In stock

13033

BEARING-SMALL END

13033-S001

1

$11.22

In stock

13034

BEARING-BIG END

13034-S004

1

$10.78

In stock

13035

PIN-CRANK,CRANK

13035-S004

1

$11.96

In stock

13037

CRANKSHAFT,LH

13037-S008

1

$105.66

In stock

13037A

CRANKSHAFT,RH

13037-S013

1

$105.66

In stock

92033

RING-SNAP,PISTON PIN

92033-S024

1
Out of stock

92045

1

$17.90

In stock

92049

SEAL-OIL,CRANKSHAFT OIL,LH

92049-S028

1
Out of stock

92049A

SEAL-OIL,CRANKSHAFT OIL,RH

92049-S029

1
Out of stock

99996

PISTON,O/S 0.50

99996-S008

1

$78.65

In stock

99996A

PISTON,O/S 1.00

99996-S009

1
Out of stock
