2005 Kawasaki KDX50 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

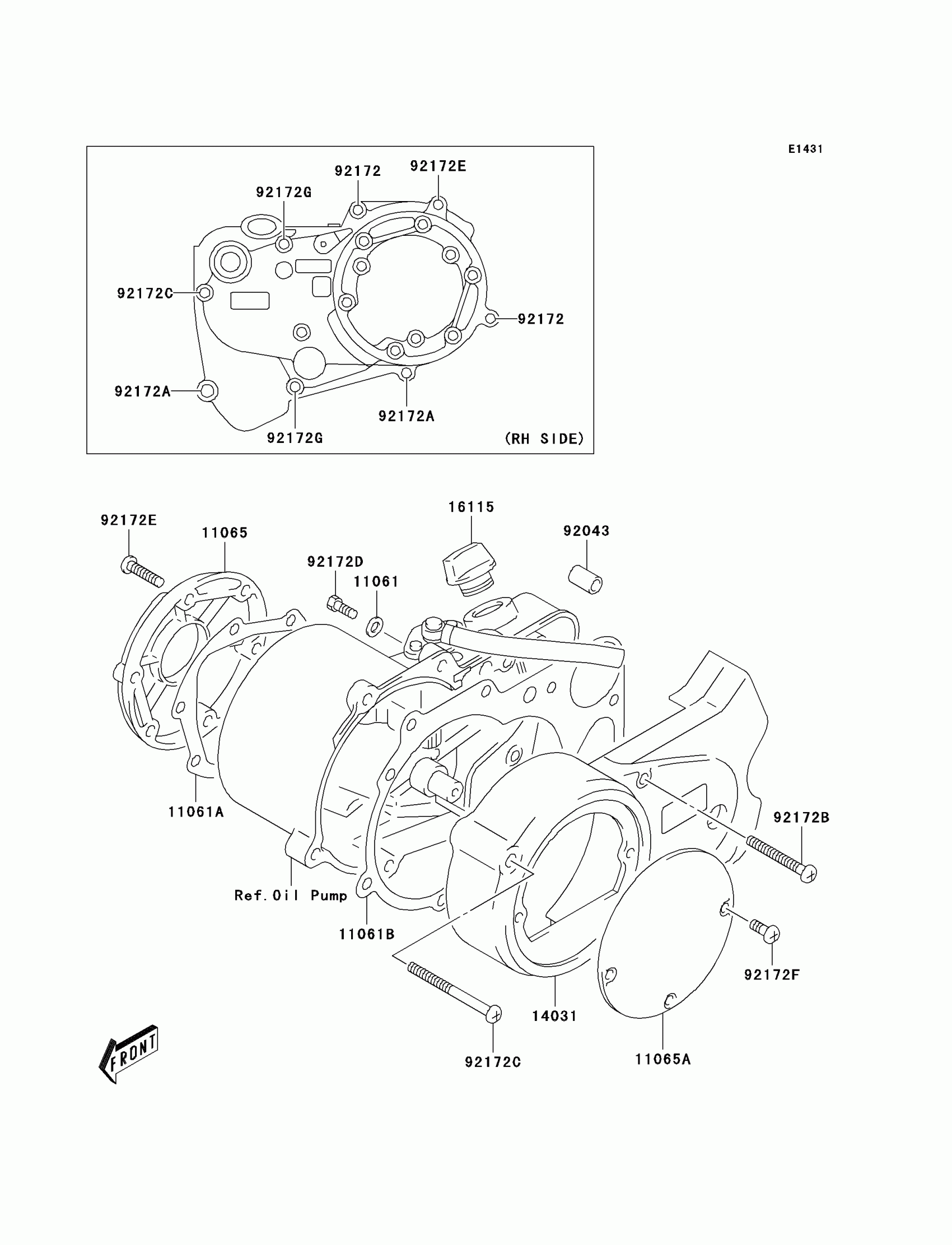

2005 Kawasaki KDX50 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-S045

1

$1.49

In stock

11061A

GASKET,RELEASE CAP

11061-S078

1

$6.32

In stock

11061B

GASKET,CLUTCH COVER

11061-S079

1

$14.34

In stock

11065

1

$31.17

In stock

11065A

CAP,MAGNETO INSPECTION

11065-S045

1
Out of stock

14031

COVER-GENERATOR

14031-S007

1

$93.69

In stock

16115

CAP-OIL FILLER

16115-S004

1

$1.85

In stock

92043

PIN,CLUTCH COVER

92043-S026

1

$1.69

In stock

92172

SCREW

92172-S090

1

$1.64

In stock

92172A

SCREW

92172-S117

1

$1.64

In stock

92172B

SCREW

92172-S118

1
Out of stock

92172C

SCREW

92172-S122

1
Out of stock

92172D

SCREW,OIL LEVEL

92172-S123

1

$1.46

In stock

92172E

SCREW

92172-S150

1
Out of stock

92172F

SCREW

92172-S180

1

$1.63

In stock

92172G

SCREW

92172-S185

1

$2.17

In stock
