2005 Kawasaki KDX50 Kickstarter Mechanism Diagram

← All diagrams

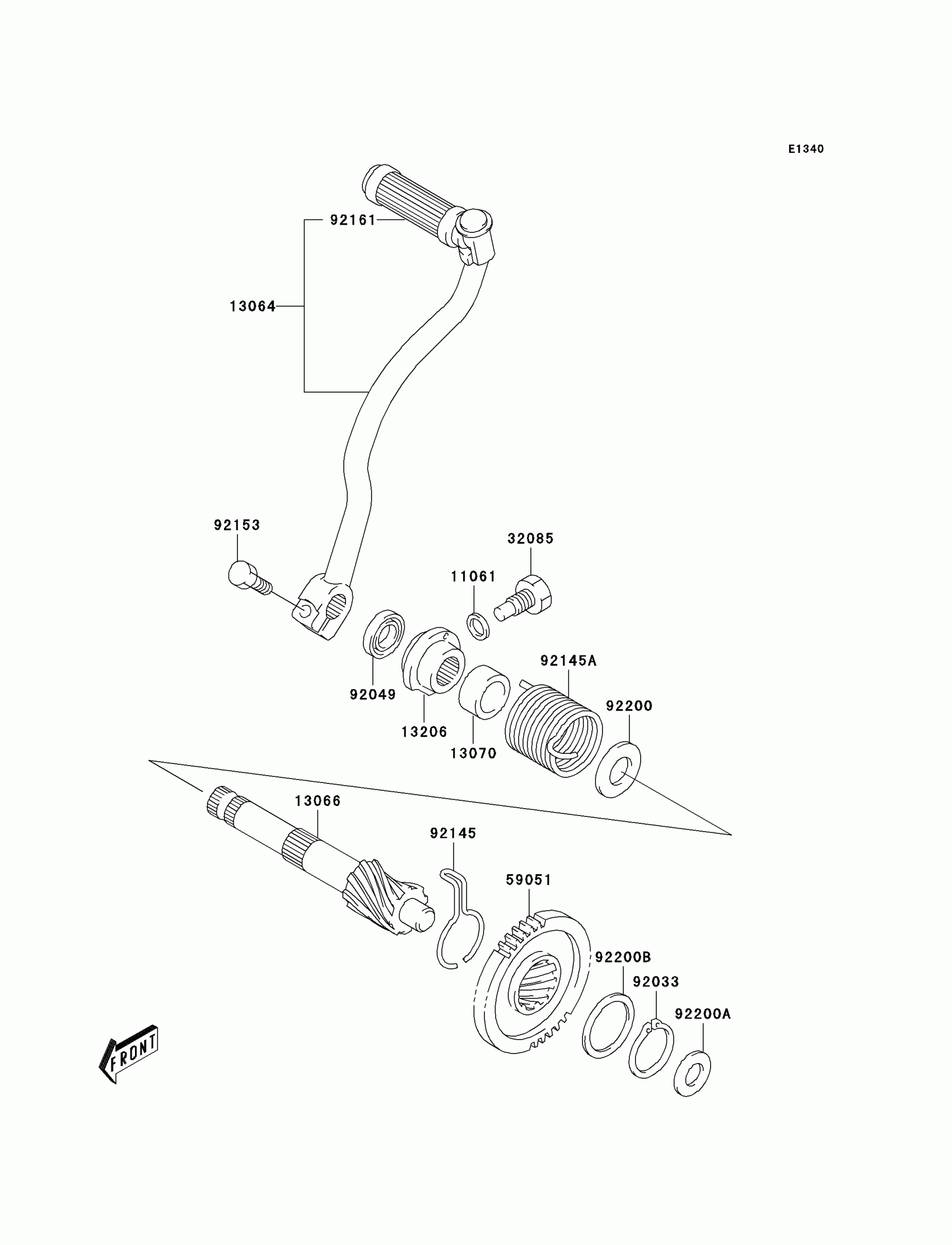

Find the part on the Kickstarter Mechanism diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10X14X3.6

11061-S021

1

$2.00

In stock

13064

LEVER-ASSY-KICK

13064-S003

1

$57.40

In stock

13066

SHAFT-KICK

13066-S002

1

$50.94

In stock

13070

GUIDE,KICK RETURN SPRING

13070-S016

1
Out of stock

13206

GUIDE-KICK

13206-S002

1

$36.91

In stock

32085

STOPPER,KICK STARTER

32085-S014

1
Out of stock

59051

GEAR-SPUR

59051-S006

1

$65.39

In stock

92033

RING-SNAP

92033-S045

1

$2.25

In stock

92049

SEAL-OIL,STARTER SHAFT

92049-S056

1
Out of stock

92145

SPRING

92145-S110

1
Out of stock

92145A

SPRING,KICK STARTER

92145-S117

1

$5.04

In stock

92153

BOLT

92153-S127

1

$1.64

In stock

92161

DAMPER,KICK STARTER PEDAL

92161-S109

1
Out of stock

92200

WASHER,16X30X1

92200-S073

1
Out of stock

92200A

WASHER,GEAR SHIFT SHAFT

92200-S170

1
Out of stock

92200B

WASHER,25X32X1

92200-S172

1
Out of stock
