2005 Kawasaki KDX50 Crankcase Diagram

← All diagrams

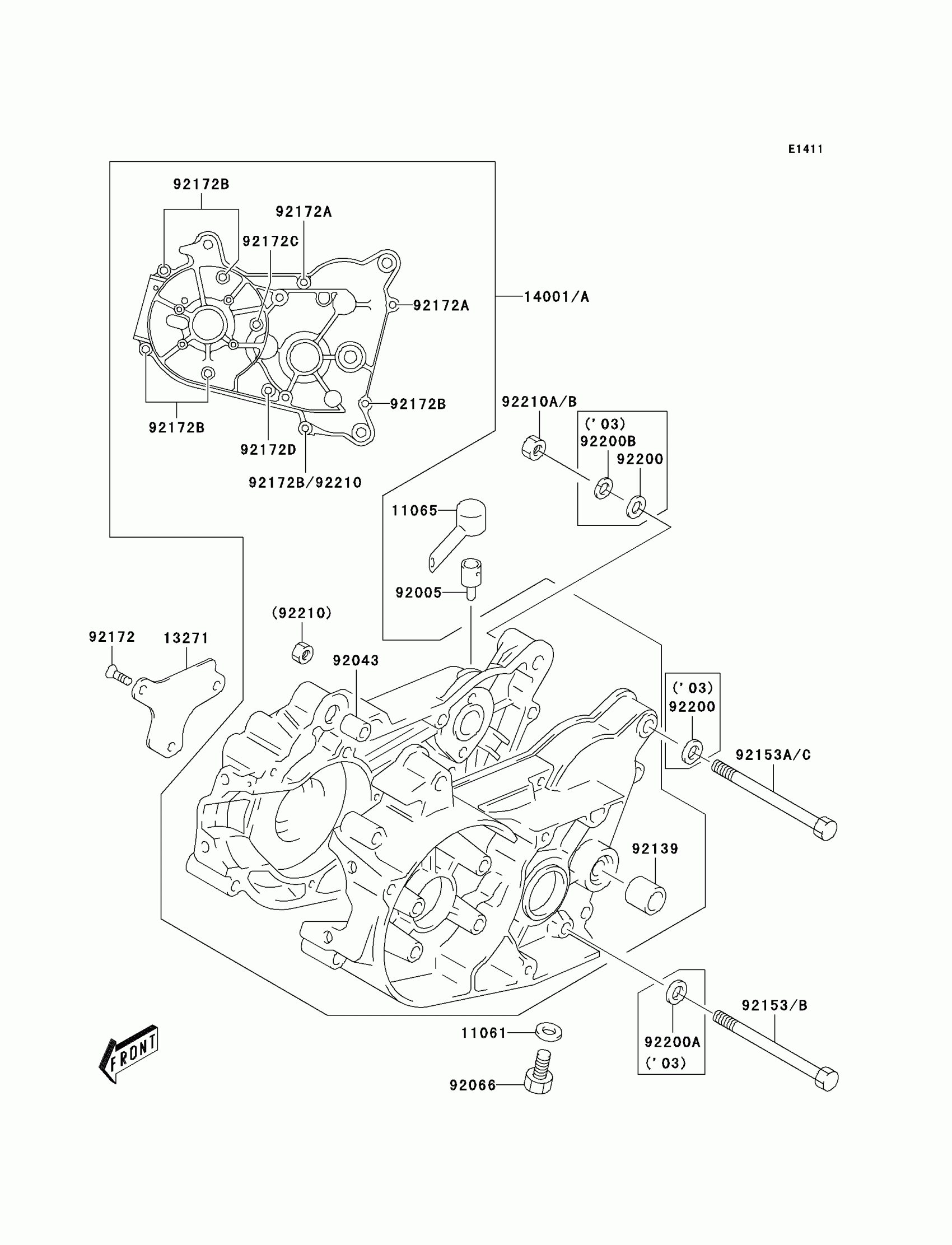

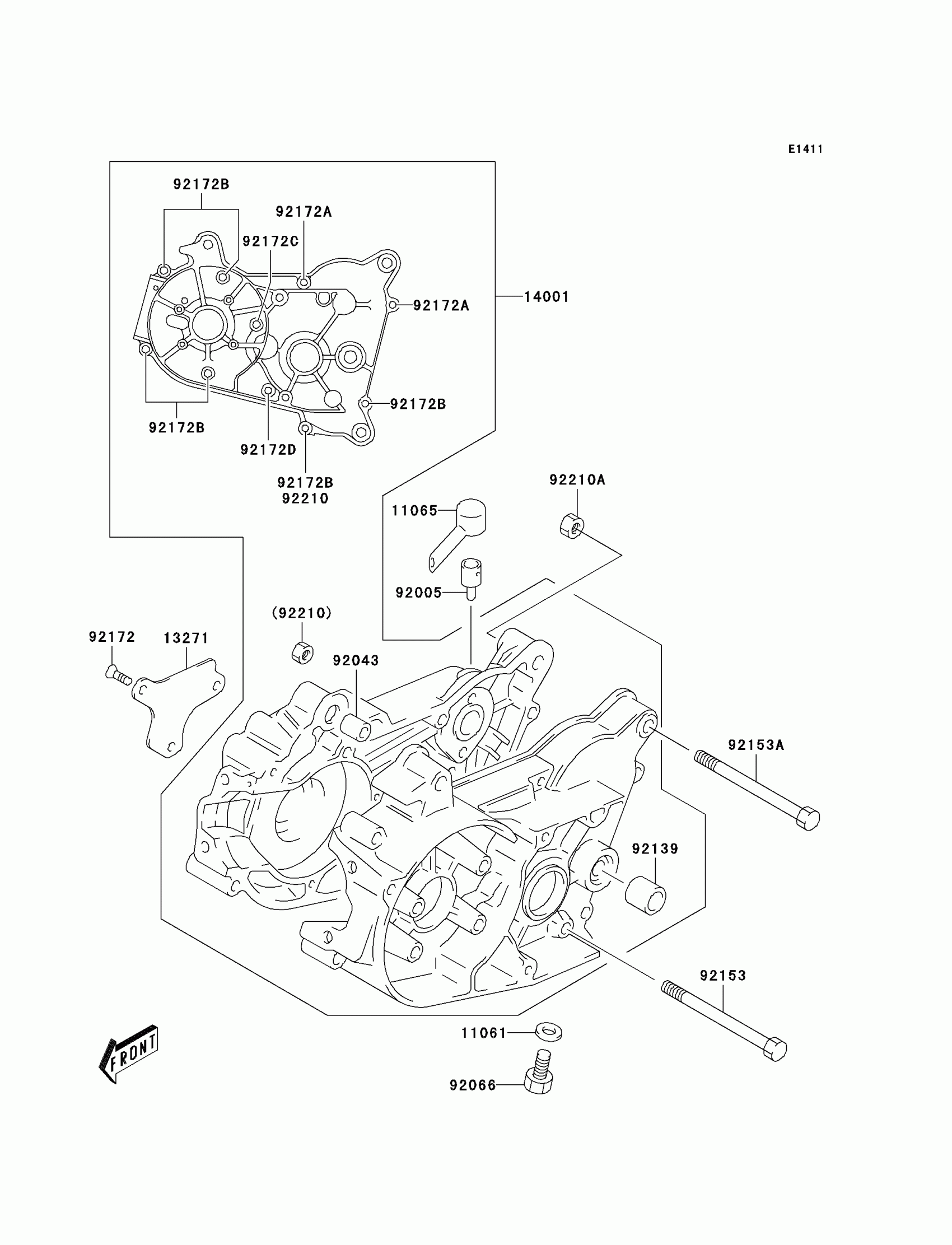

Find the part on the Crankcase diagram for your 2005 Kawasaki KDX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KDX50 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10X14X3.6

11061-S021

1

$2.00

In stock

11065

CAP,BREATHER PLUG

11065-S041

1
Out of stock

13271

PLATE,OIL RESERVOIR

13271-S025

1

$7.76

In stock

14001A

SET-CRANKCASE

14001-S009

1
Out of stock

92005

FITTING,BREATHER

92005-S005

1
Out of stock

92043

PIN,CRANKCASE

92043-S024

1

$1.81

In stock

92066

PLUG,OIL DRAIN

92066-S036

1

$2.05

In stock

92139

1

$4.97

In stock

92153B

BOLT

92153-S400

1

$23.12

In stock

92153C

BOLT

92153-S401

1

$3.22

In stock

92172

SCREW

92172-S098

1
Out of stock

92172A

SCREW

92172-S117

1

$1.64

In stock

92172B

SCREW

92172-S118

1
Out of stock

92172C

SCREW,CRANKCASE

92172-S119

1
Out of stock

92172D

SCREW,CRANKCASE

92172-S120

1
Out of stock

92210

NUT

92210-S001

1
Out of stock

92210B

NUT

92210-S094

1
Out of stock
