2001 Kawasaki KDX220R Radiator Diagram

← All diagrams

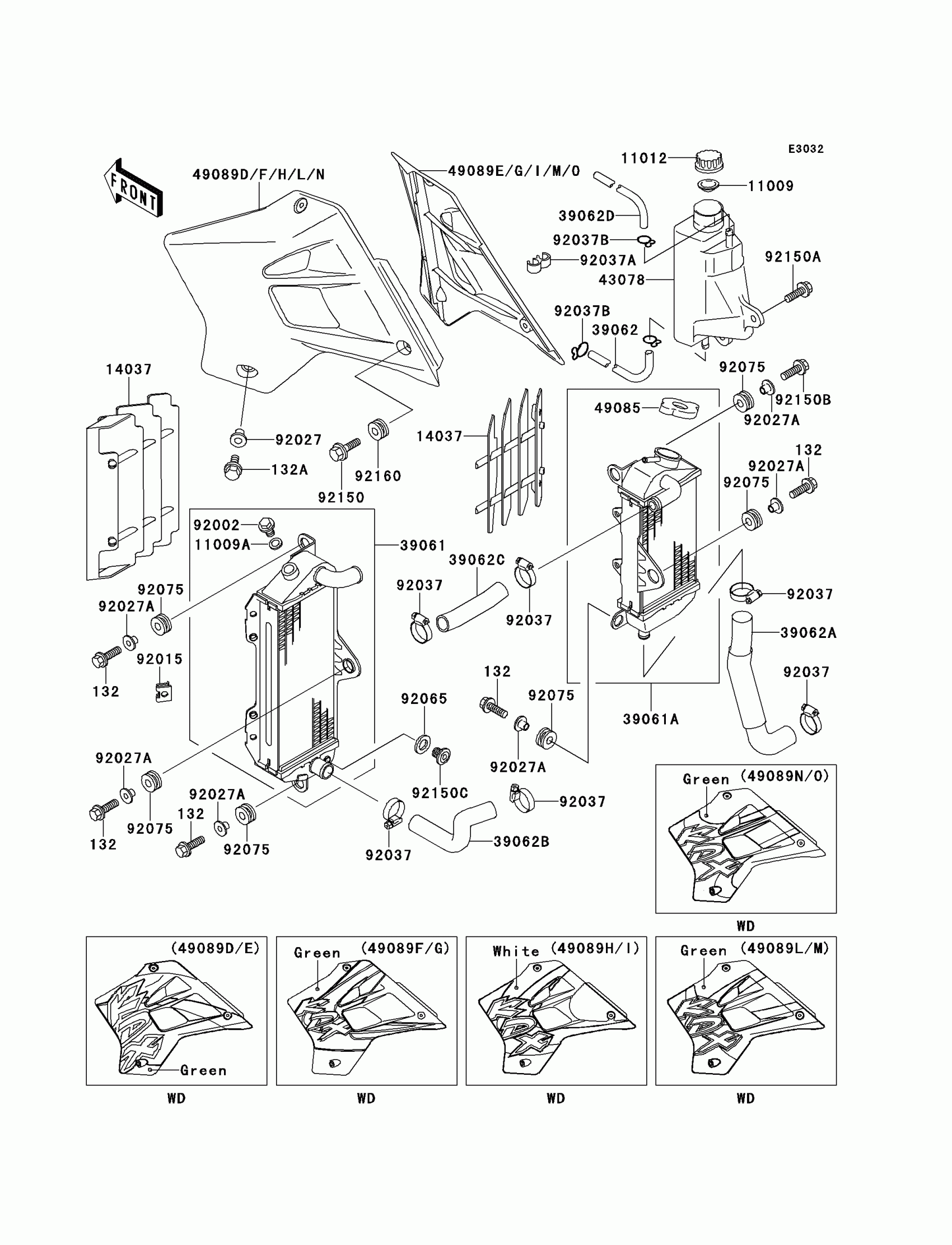

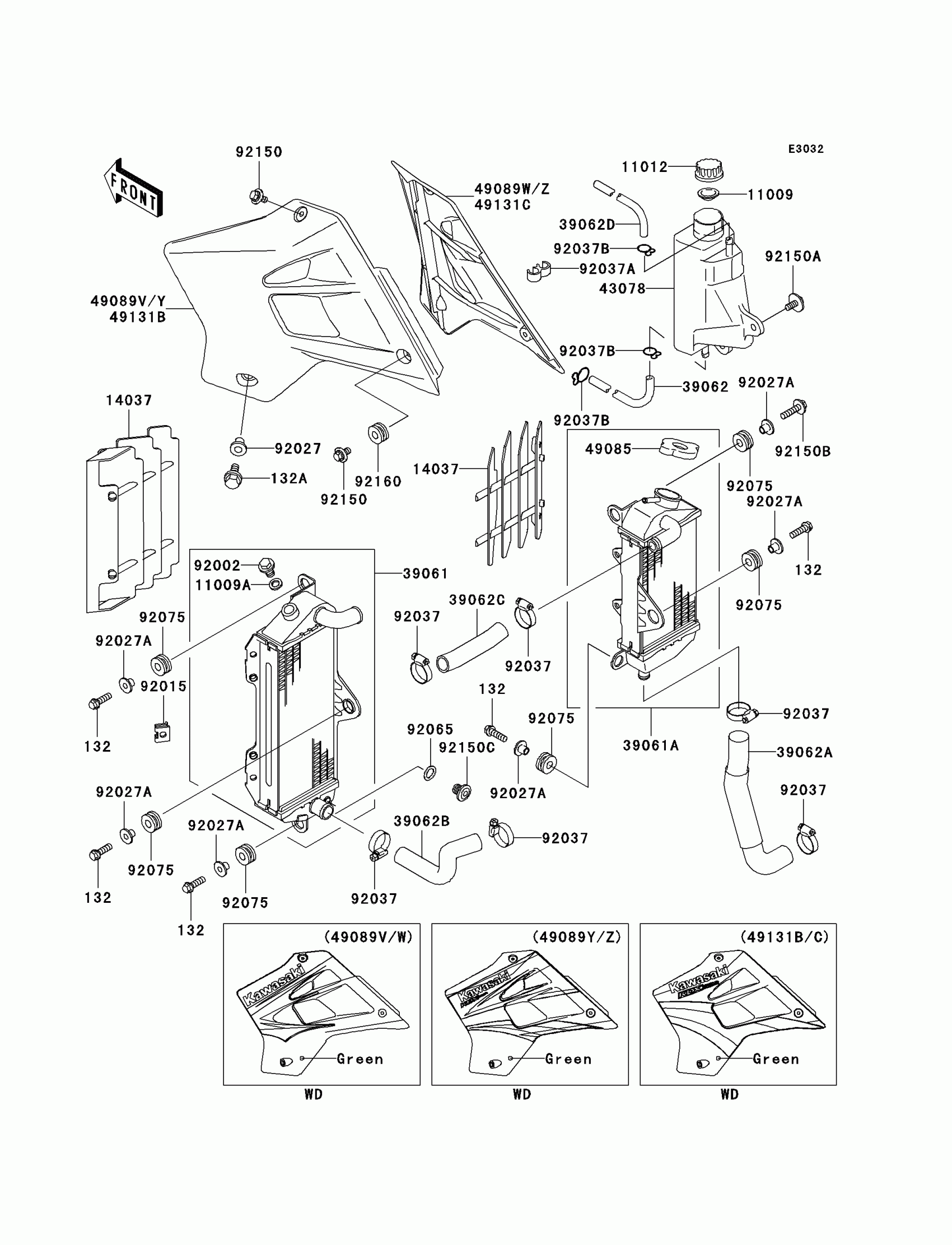

Find the part on the Radiator diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11009A

GASKET,DRAIN BOLT

11009-1152

1

$7.44

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN,WHITE

14037-1099-RZ

1

$22.97

In stock

39061

RADIATOR-ASSY,LH

39061-1239

1
Out of stock

39061A

RADIATOR-ASSY,RH

39061-1240

1
Out of stock

39062

HOSE-COOLING,5X9X700

39062-1423

1
Out of stock

39062A

1

$38.45

In stock

39062B

HOSE-COOLING,HEAD-RADIATOR,LH

39062-1580

1
Out of stock

39062C

1

$19.78

In stock

39062D

1

$5.61

In stock

43078

RESERVOIR

43078-1142

1

$29.76

In stock

49085

1

$45.73

In stock

49089N

SHROUD-ENGINE,LH,L.GREEN

49089-5365-6W

1
Out of stock

49089O

SHROUD-ENGINE,RH,L.GREEN

49089-5366-6W

1
Out of stock

92002

BOLT,RADIATOR DRAIN

92002-1682

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92027A

COLLAR,L=13.1

92027-251

1
Out of stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92037A

CLAMP,HOSE

92037-1603

1

$4.42

In stock

92037B

CLAMP

92037-1712

1

$3.97

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92075

1

$3.72

In stock

132

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

92150

BOLT,6X12

92150-1435

1

$3.43

In stock

92150A

BOLT,FLANGED,6X14

92150-1504

1

$3.81

In stock

92150B

BOLT,FLANGED,6X25

92150-1507

1

$3.81

In stock

92150C

BOLT,10X10

92150-1867

1

$4.92

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock
