2001 Kawasaki KDX220R Engine Cover Diagram

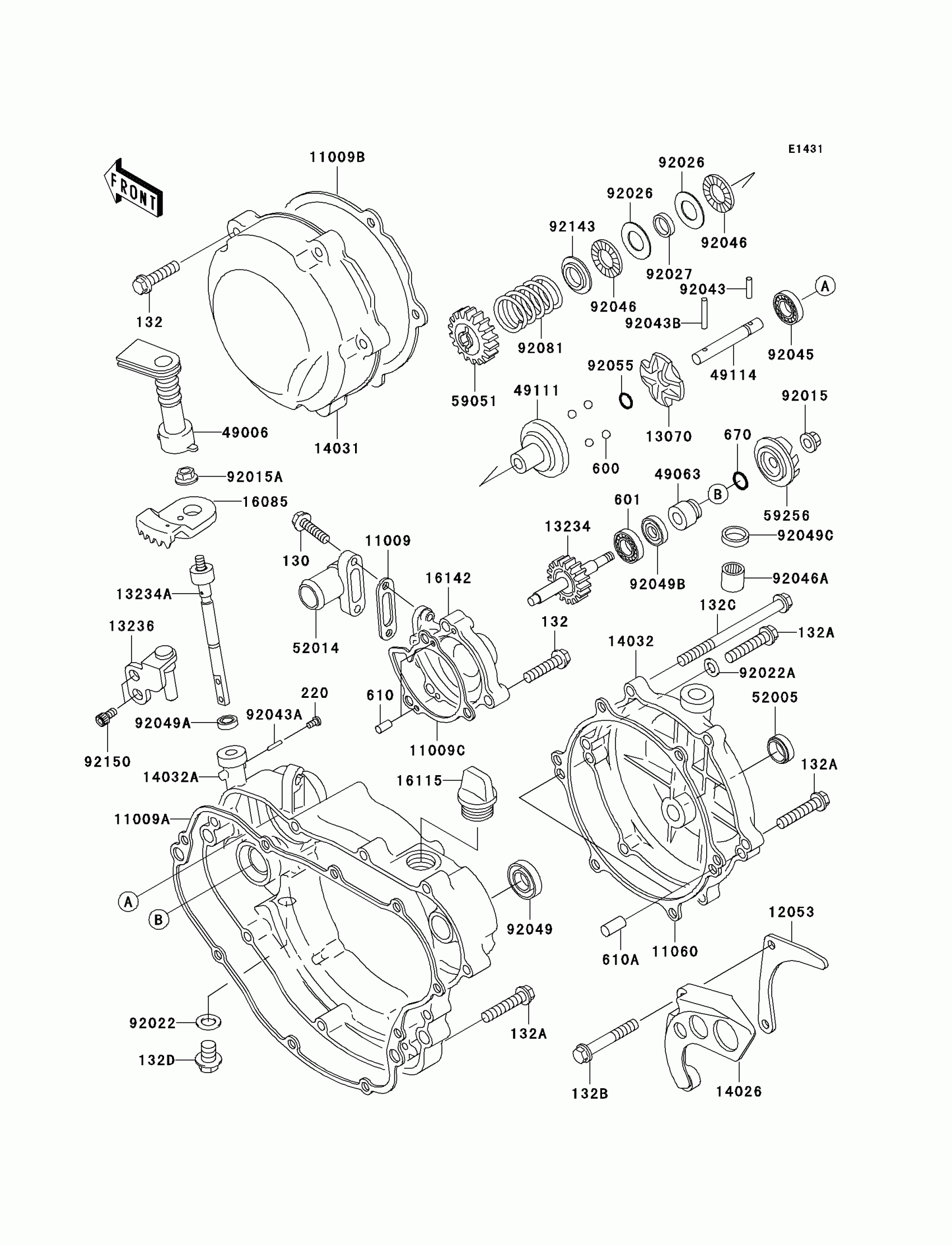

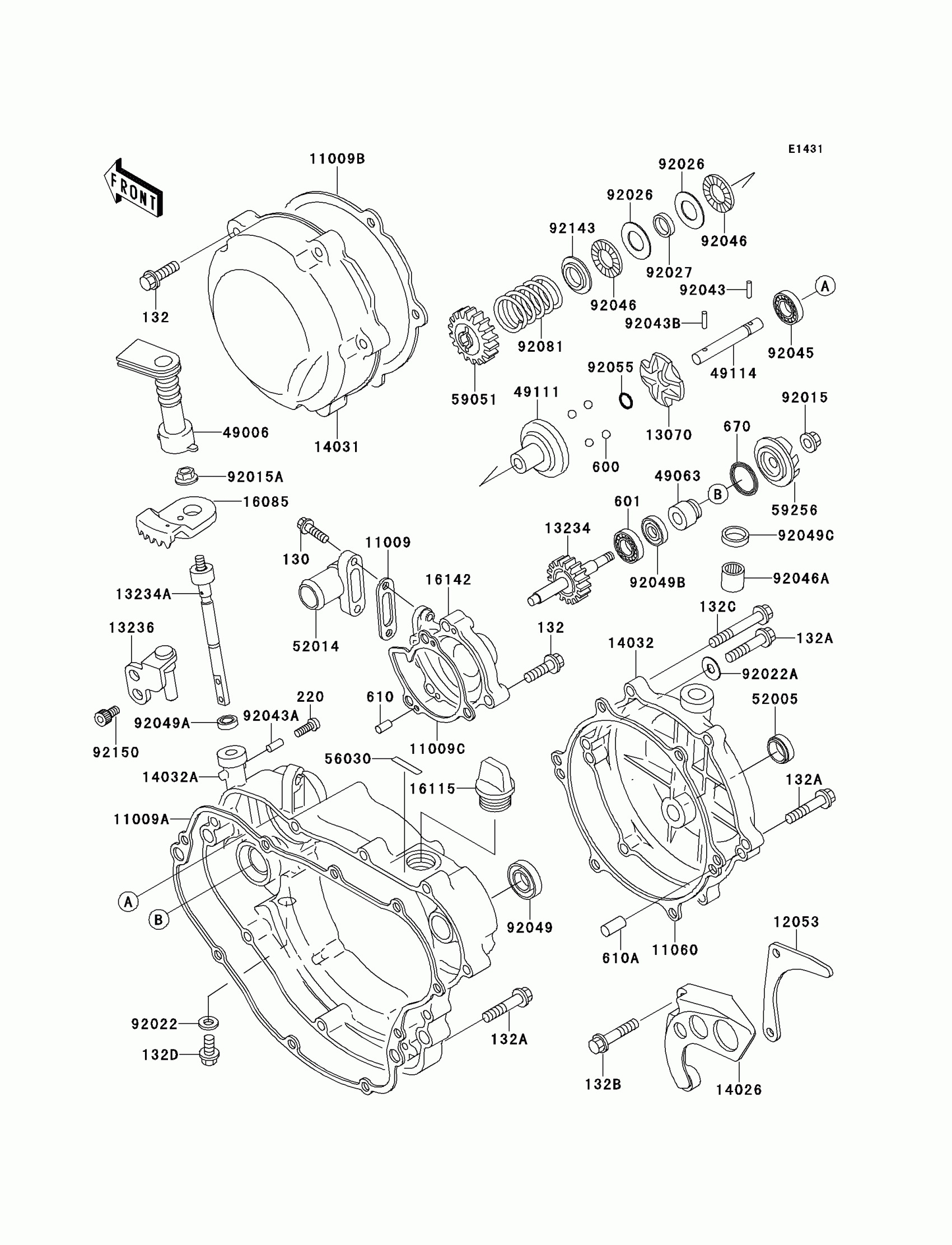

Find the part on the Engine Cover diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009C
GASKET,WATER PUMP COVER
11009-1998
12053
GUIDE-CHAIN
12053-1228
13234
SHAFT-COMP,PUMP
13234-1091
13236
LEVER-COMP,GOVERNOR
13236-1260
49006
BOOT,GOVERNOR SHAFT
49006-1291
59051
GEAR-SPUR,GOVERNOR,18T
59051-1189
92022A
WASHER,6.2X11X1
92022-304
92046A
BEARING-NEEDLE
92046-1230
92049
SEAL-OIL,SB18307
92049-013
92049A
SEAL-OIL,SDO8144
92049-1207
130
BOLT-FLANGED,5X20
130Z0520
132
BOLT-FLANGED-SMALL,6X25
132Y0625
132A
BOLT-FLANGED-SMALL,6X30
132Y0630
132B
BOLT-FLANGED-SMALL,6X40
132Y0640
132C
BOLT-FLANGED-SMALL,6X80
132Y0680
132D
BOLT-FLANGED-SMALL,8X10
132Y0810
220
SCREW-PAN-CROS,3X6
220B0306
92049B
SEAL-OIL,SC12 28.555
92049-1259
92049C
SEAL-OIL,AG0353-F0
92049-1262
