2001 Kawasaki KDX220R Crankcase Diagram

← All diagrams

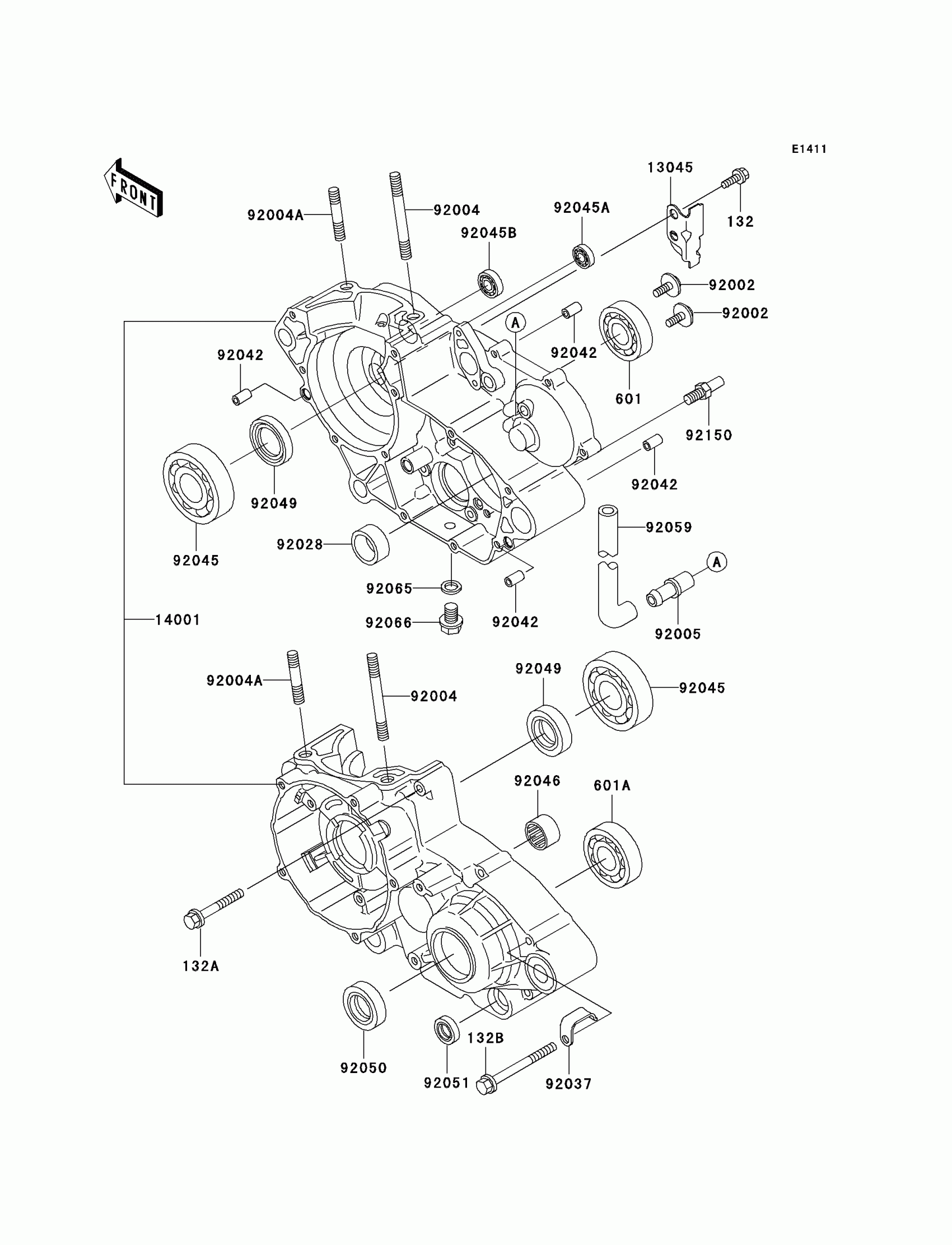

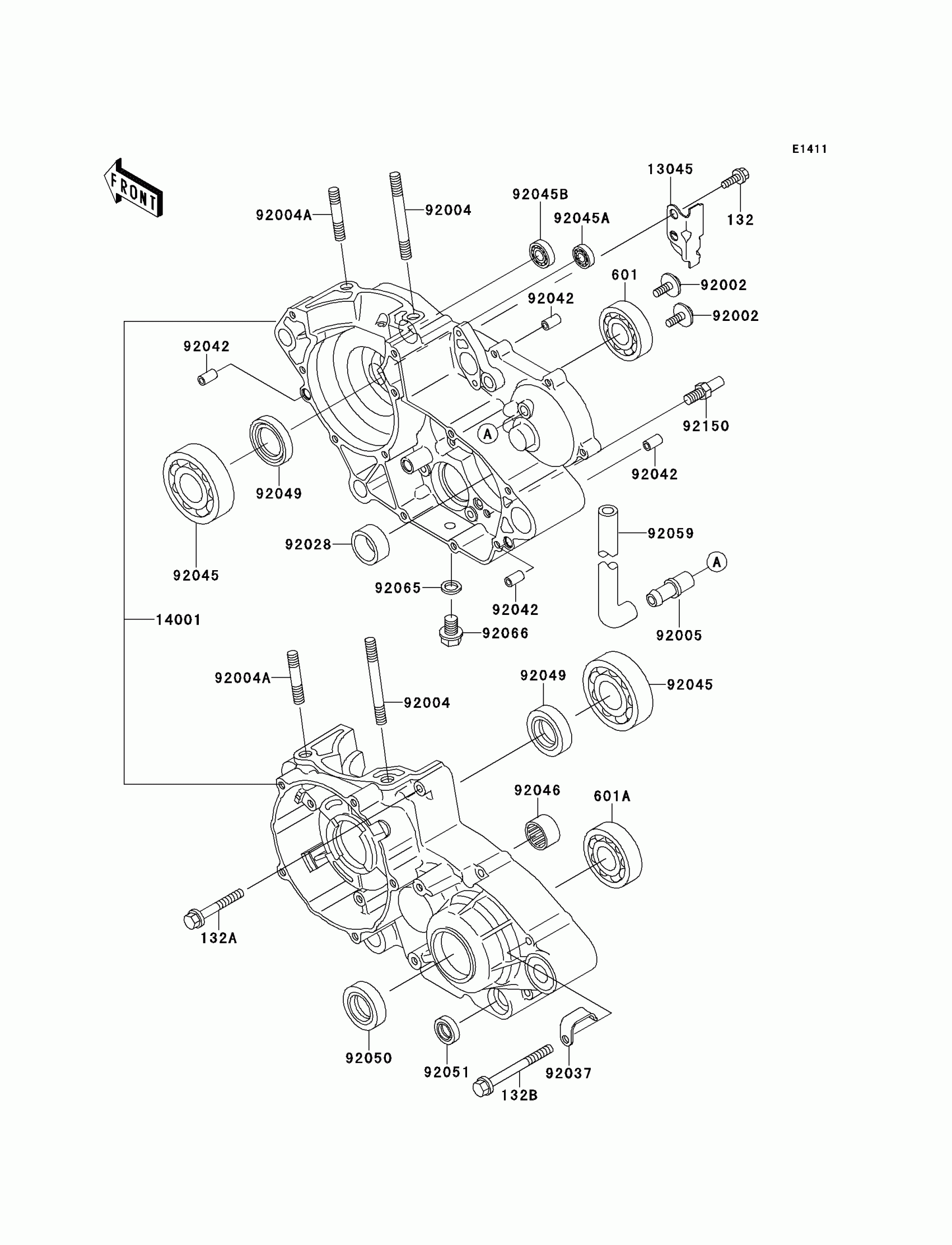

Find the part on the Crankcase diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X14

132Y0614

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X60

132Y0660

1
Out of stock

601

1

$10.76

In stock

601A

1

$15.38

In stock

13045

RECEIVER-OIL

13045-1056

1

$5.66

In stock

14001

SET-CRANKCASE

14001-1212

1
Out of stock

92002

BOLT,6X16

92002-1659

1
Out of stock

92004

STUD,8X60

92004-1132

1
Out of stock

92004A

STUD,8X28.5

92004-1142

1
Out of stock

92005

FITTING,BREATHER

92005-1210

1
Out of stock

92028

BUSHING,23X30X13

92028-132

1

$38.79

In stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

1

$33.17

In stock

92045A

BEARING-BALL,626MC3

92045-1304

1

$9.41

In stock

92045B

BEARING-BALL,608MC3

92045-1305

1

$9.80

In stock

92046

1

$22.22

In stock

92049

SEAL-OIL,TBY25X40X6

92049-1365

1
Out of stock

92050

SEAL-OIL,TB3040

92050-033

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

TUBE,5X9X400,BLUE

92059-1805

1

$32.75

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,10MM

92066-1334

1

$5.32

In stock

92150

BOLT,RETURN SPRING

92150-1467

1

$7.36

In stock
