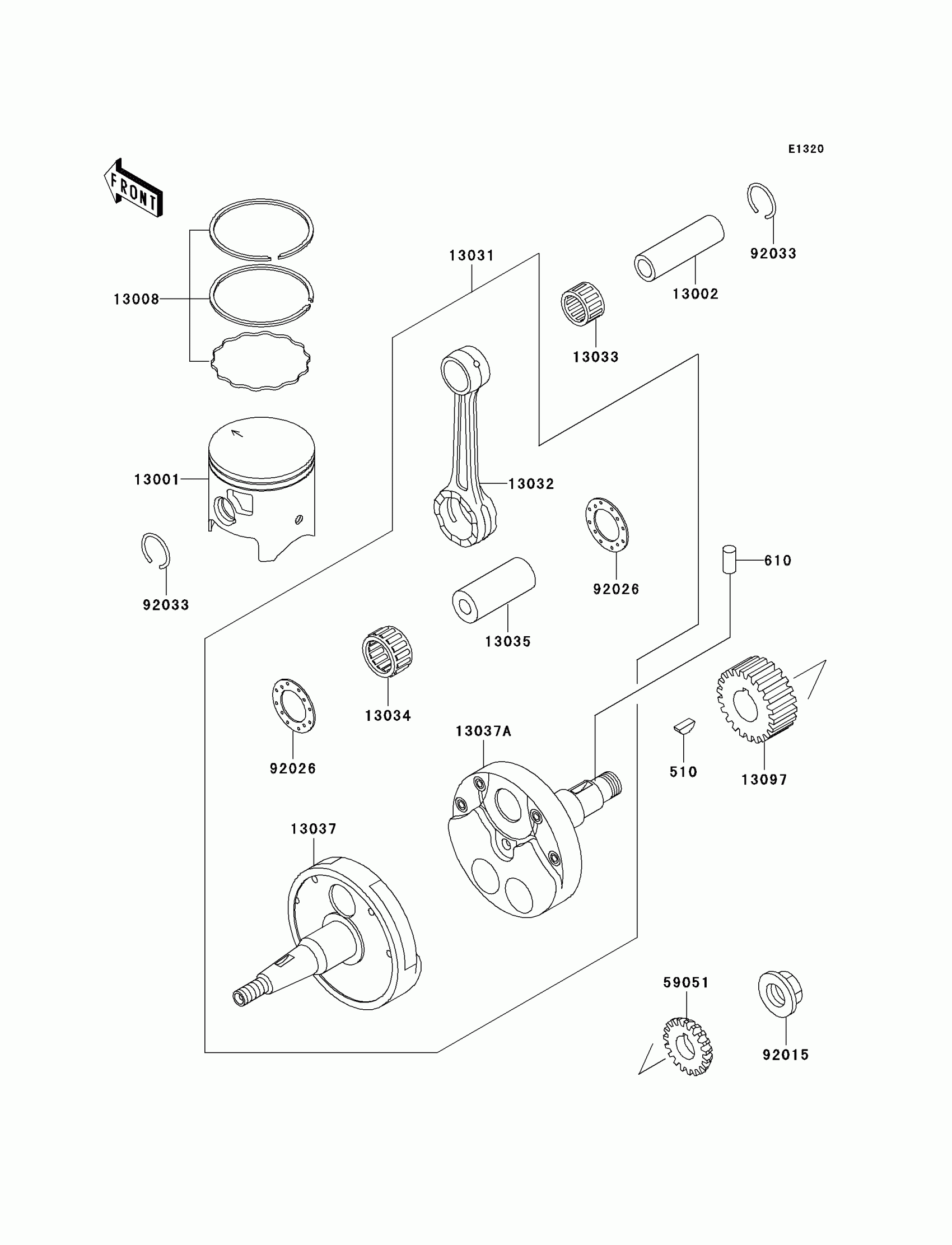

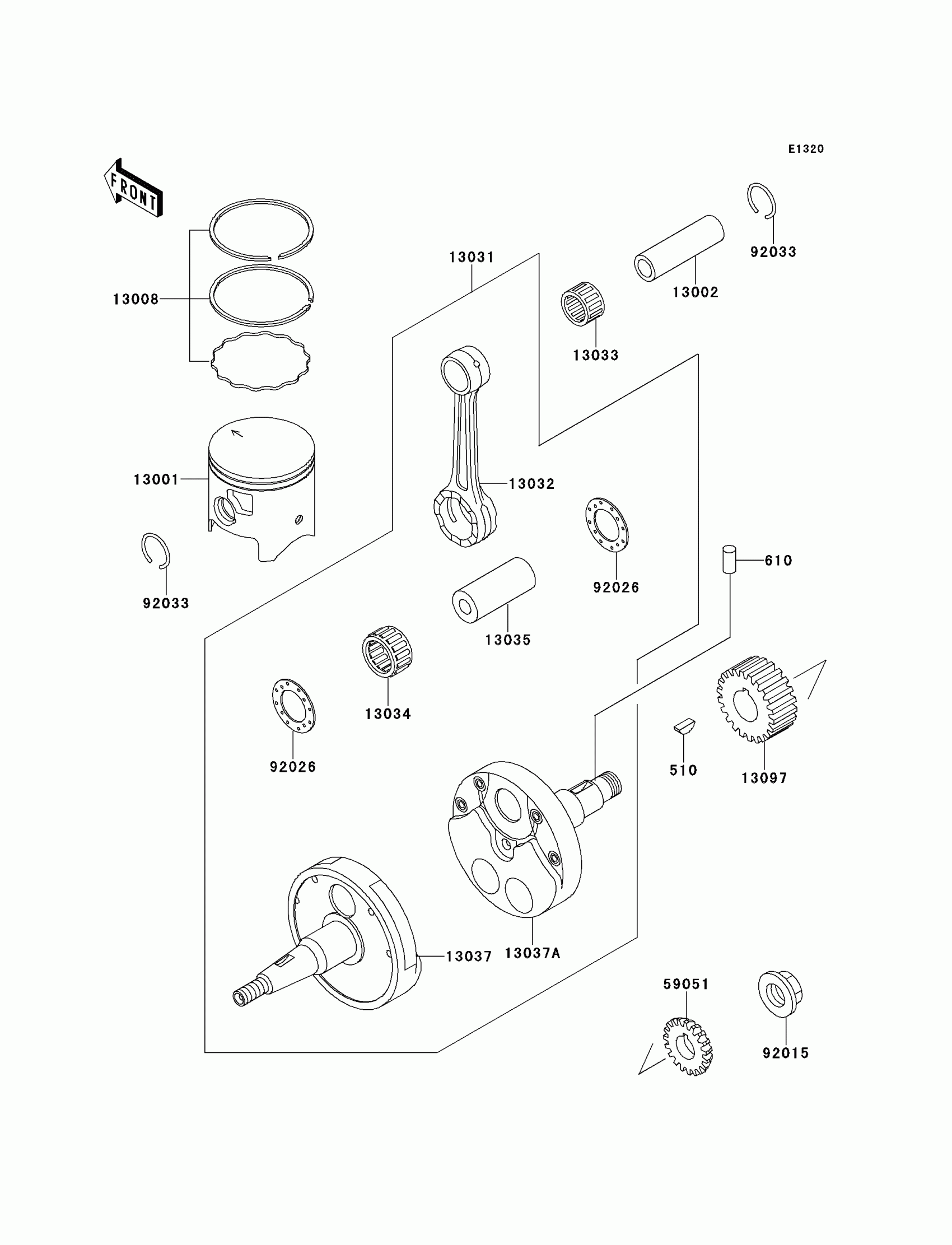

Find the part on the Crankshaft/piston diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

510

WOODRUFF KEY

510A5100

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

13001

PISTON-ENGINE

13001-1423

1
Out of stock

13002

PIN-PISTON

13002-1103

1
Out of stock

13008

RING-SET-PISTON

13008-1159

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1382

1
Out of stock

13032

ROD-CONNECTING

13032-1210

1
Out of stock

13033

BEARING-SMALL END

13033-1056

1
Out of stock

13034

BEARING-BIG END,B4

13034-1081

1
Out of stock

13035

PIN-CRANK

13035-1010

1
Out of stock

13037

CRANKSHAFT,LH

13037-1488

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1490

1
Out of stock

13097

GEAR-PRIMARY SPUR,22T

13097-1320

1
Out of stock

59051

GEAR-SPUR,WATER PUMP

59051-1207

1
Out of stock

92015

NUT,16MM

92015-1581

1
Out of stock

92026

SPACER,22.5X37X1.0

92026-011

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1242

1
Out of stock
