2001 Kawasaki KDX220R Kickstarter Mechanism Diagram

← All diagrams

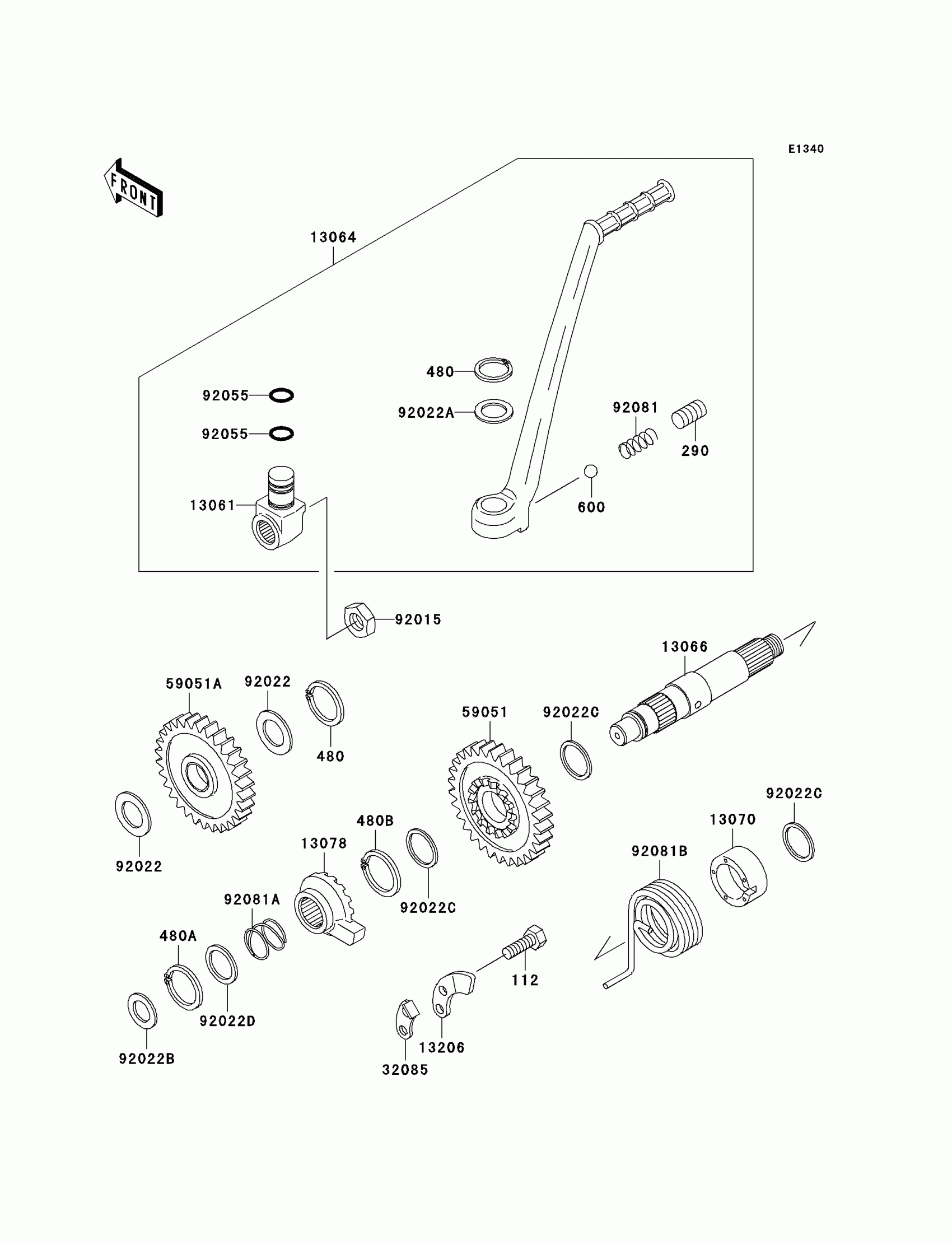

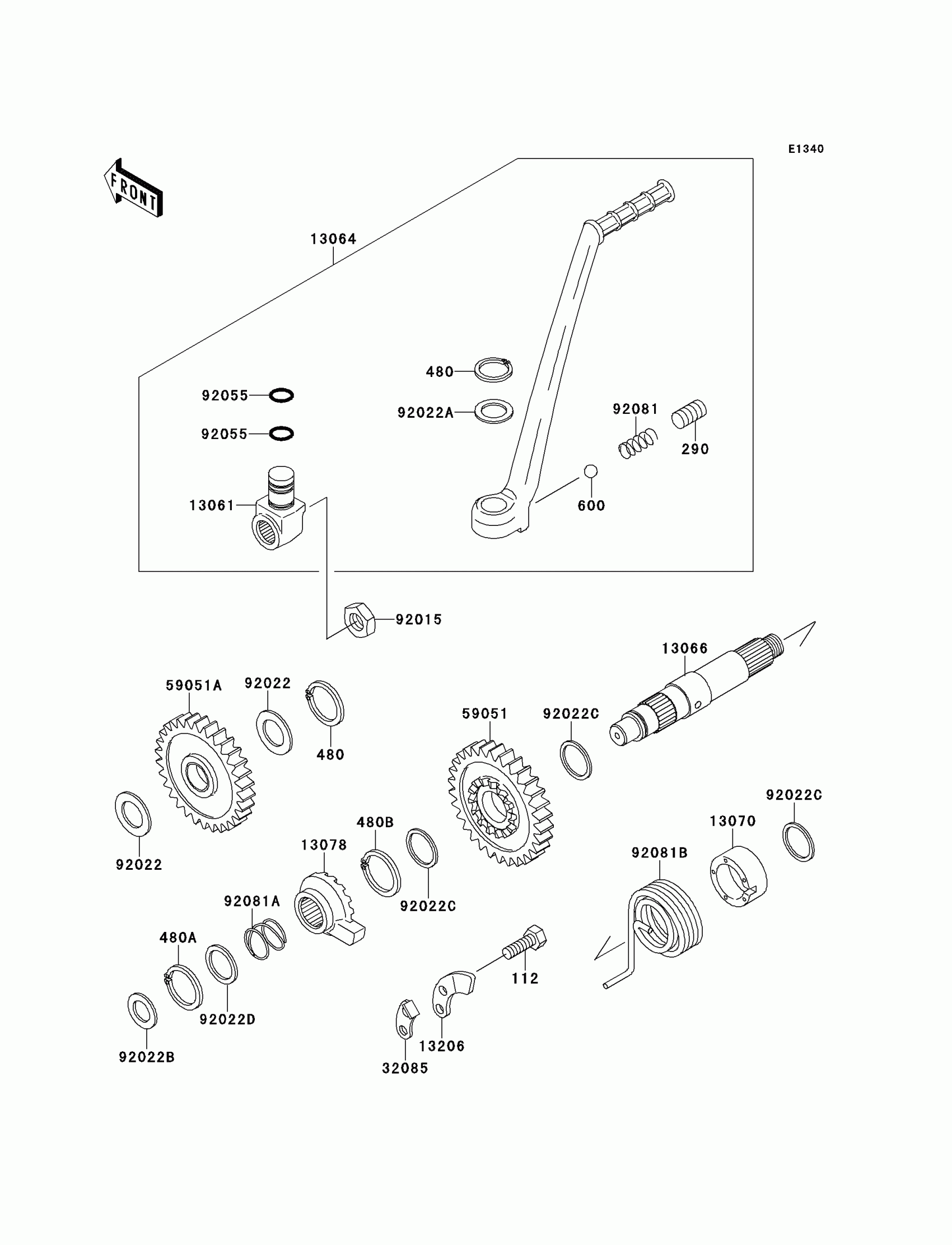

Find the part on the Kickstarter Mechanism diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X18

112Y0618

1
Out of stock

290

SCREW-SET-SOCKET,8X8

290Q0808

1
Out of stock

480

CIRCLIP-TYPE-C,15MM

480J1500

1
Out of stock

480A

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock

480B

CIRCLIP-TYPE-C,18MM

480J1800

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

13061

BOSS,KICK PEDAL

13061-1487

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1174

1
Out of stock

13066

SHAFT-KICK

13066-1071

1
Out of stock

13070

GUIDE,KICK SPRING

13070-1063

1
Out of stock

13078

RATCHET

13078-1063

1
Out of stock

13206

GUIDE-KICK

13206-1061

1
Out of stock

32085

STOPPER,KICKSTARTER

32085-1016

1
Out of stock

59051

GEAR-SPUR,KICKSTARTER

59051-1224

1
Out of stock

59051A

GEAR-SPUR,KICK,30T

59051-1309

1
Out of stock

92015

NUT,12MM

92015-1958

1
Out of stock

92022

WASHER,15.3X25X0.5

92022-1045

1
Out of stock

92022A

WASHER,16.3X24X1

92022-1205

1
Out of stock

92022B

WASHER,12.3X20X0.5

92022-269

1
Out of stock

92022C

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92022D

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92055

RING-O,10X1.5

92055-061

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92081A

SPRING,RATCHET

92081-122

1
Out of stock

92081B

SPRING,KICKSTARTER

92081-1926

1
Out of stock
