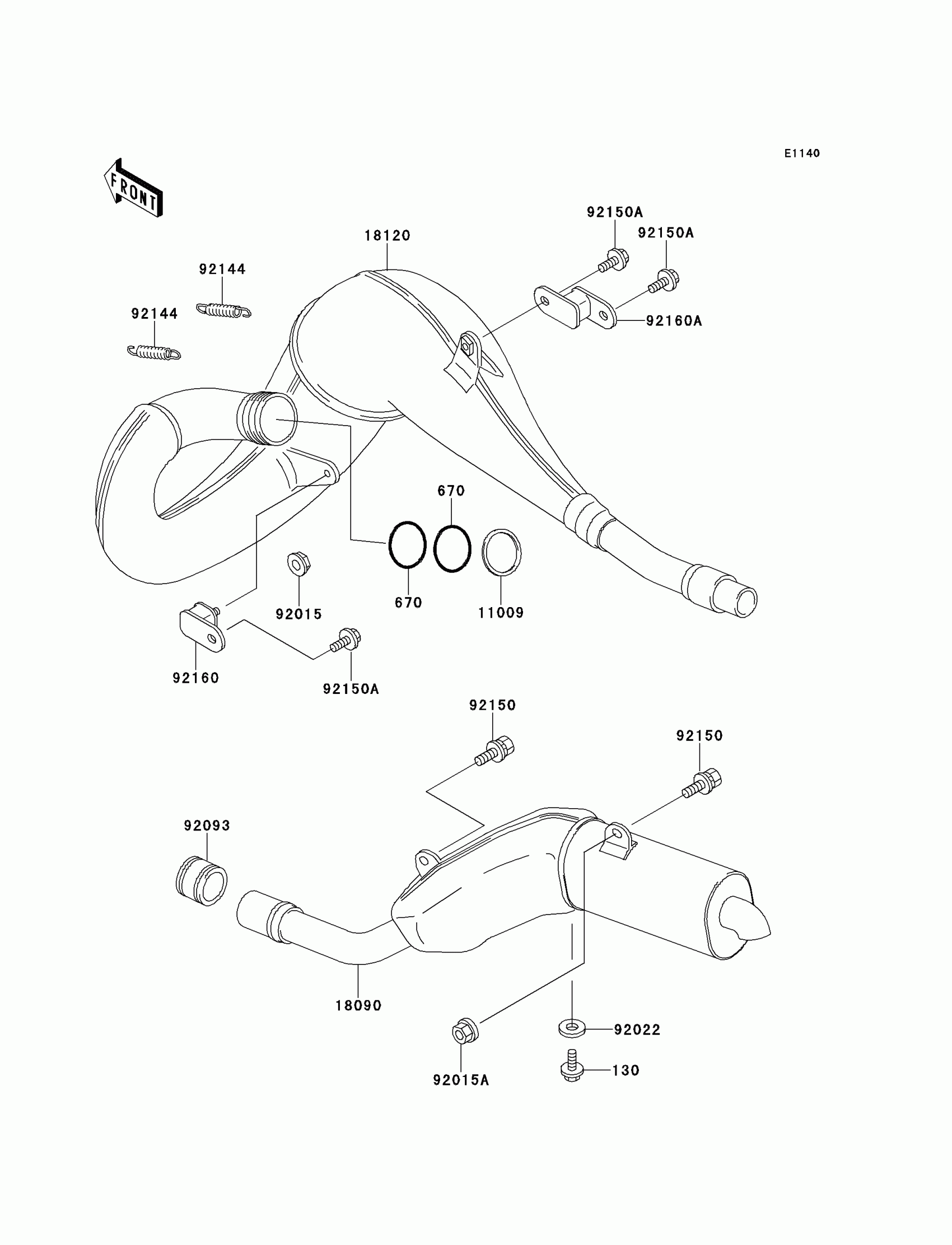

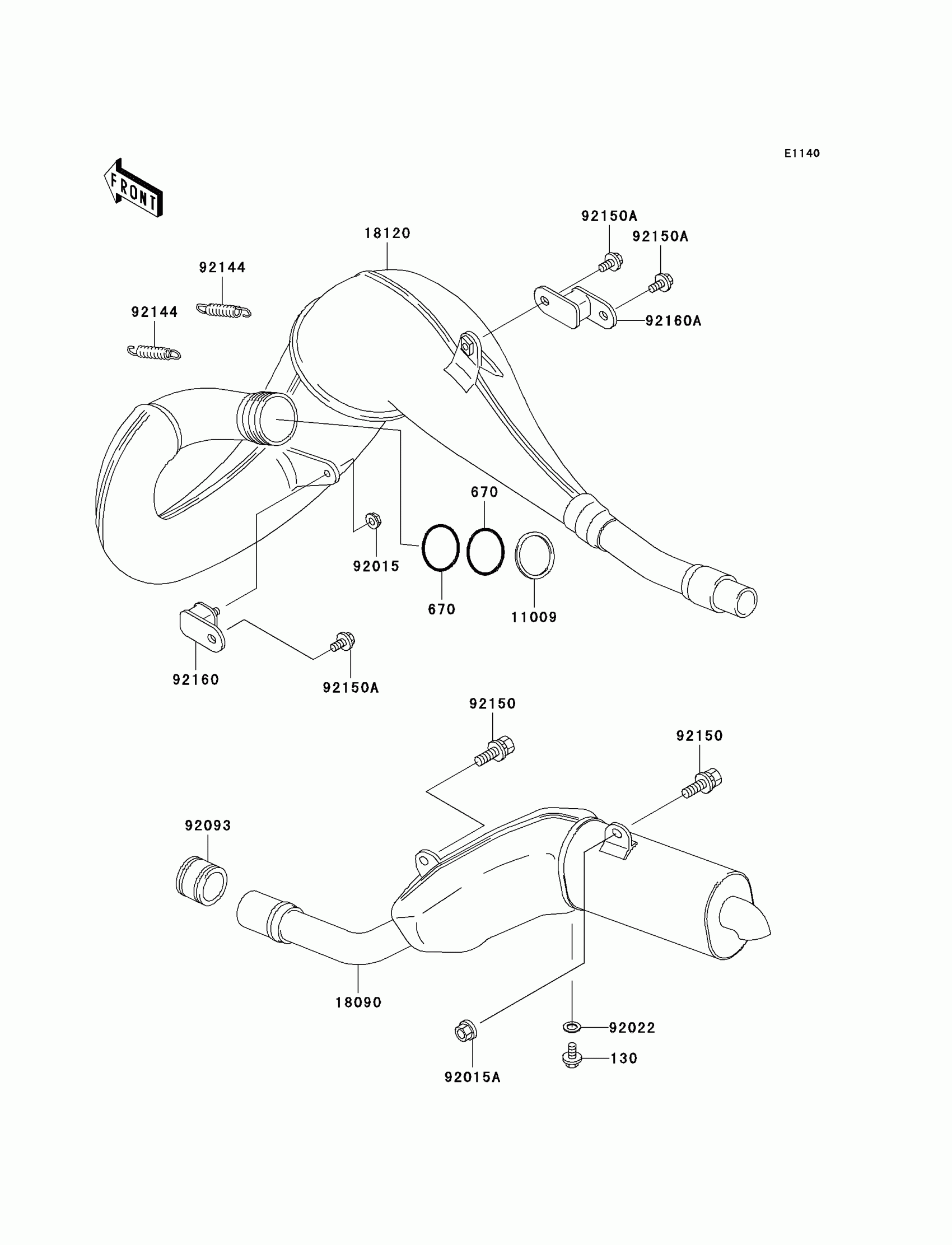

Kawasaki KDX220R Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

670

O RING,39MM

670E3039

$12.06

11009

GASKET,EXHAUST PIPE

11009-1995

$6.89

18090

BODY-COMP-MUFFLER

18090-1566

$568.66

18120

CHAMBER-EXHAUST

18120-1074

$612.28

92015

NUT,6MM

92015-1365

$3.81

92015A

NUT,FLANGED,LOCK,8MM

92015-1668

$3.24

92022

WASHER,8.2X14X1.0

92022-1488

$4.34

92093

SEAL,MUFFLER CONNECTING

92093-1328

$37.81

92144

SPRING

92144-1035

$8.01

92150

BOLT,8X20

92150-1859

$3.29

92150A

BOLT,6X12

92150-1891

$3.53

92160

DAMPER,MUFFLER,FR

92160-1176

$25.03

92160A

DAMPER,MUFFLER,RR

92160-1201

$25.03
