1991 Kawasaki KDX200 Tire Diagram

← All diagrams

Find the part on the Tire diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

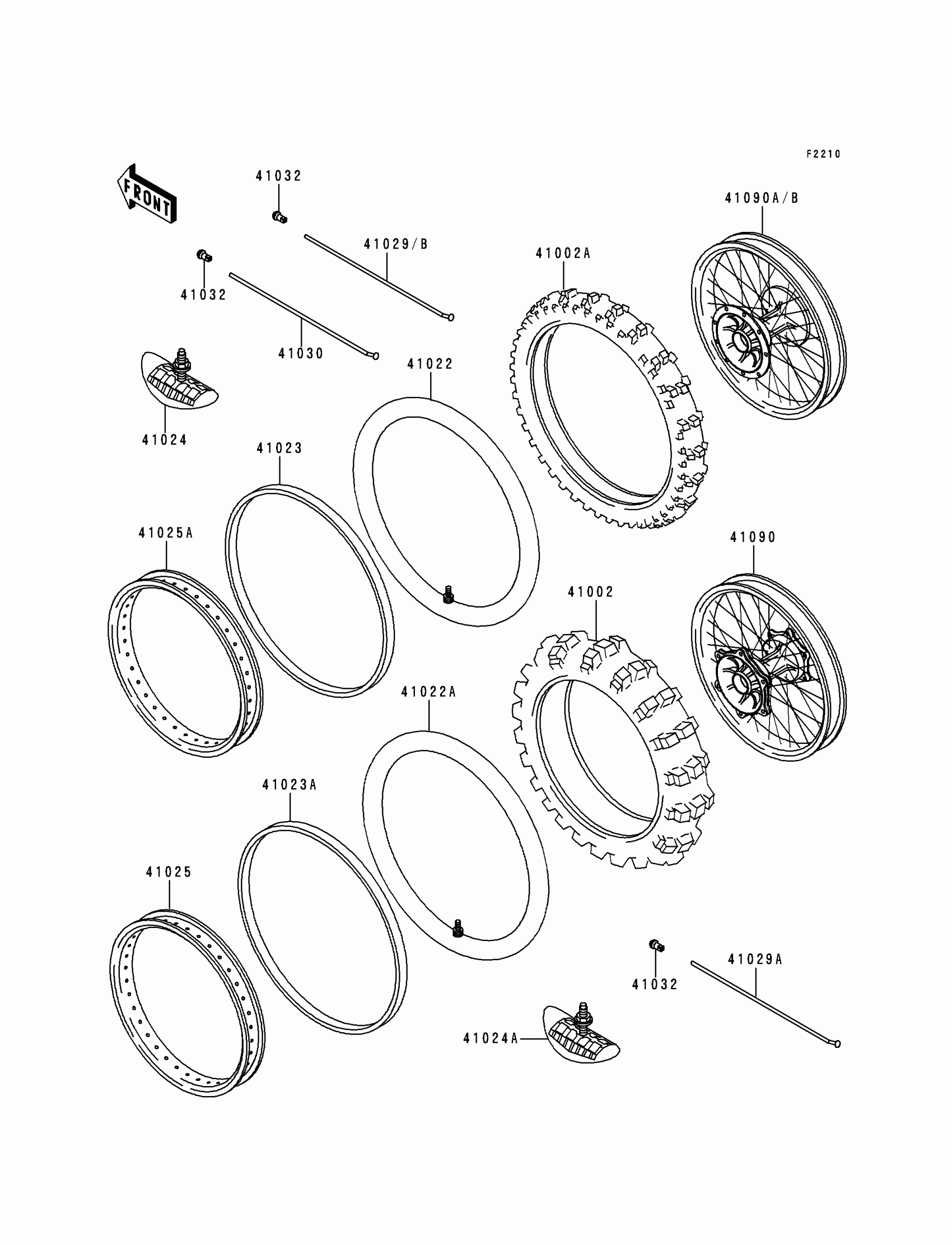

1991 Kawasaki KDX200 Tire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002A

TIRE,RR,100/100-18 59M,K695(D)

41002-1753

1
Out of stock

41002B

TIRE,FR,80/100-21 51M,K490J(D)

41002-1803

1
Out of stock

41022

1

$51.02

In stock

41022A

1

$51.02

In stock

41023

BAND-RIM,80/100-21(D)

41023-1069

1
Out of stock

41023A

1

$10.98

In stock

41024

1

$52.75

In stock

41024A

1

$48.17

In stock

41025A

RIM,RR,1.85X18

41025-1231

1
Out of stock

41025B

RIM,FR,1.60X21

41025-1241

1

$423.54

In stock

41029

SPOKE-INNER,FR,229MMX166D

41029-1155

1
Out of stock

41029A

1

$7.05

In stock

41030

1

$8.41

In stock

41032

NIPPLE-SPOKE

41032-1061

1

$3.62

In stock

41090

WHEEL-SUB ASSY,RR

41090-1074

1

$1,234.18

In stock

41090B

WHEEL-SUB ASSY,FR

41090-1076

1

$1,182.75

In stock
