1991 Kawasaki KDX200 Cable Diagram

← All diagrams

Find the part on the Cable diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

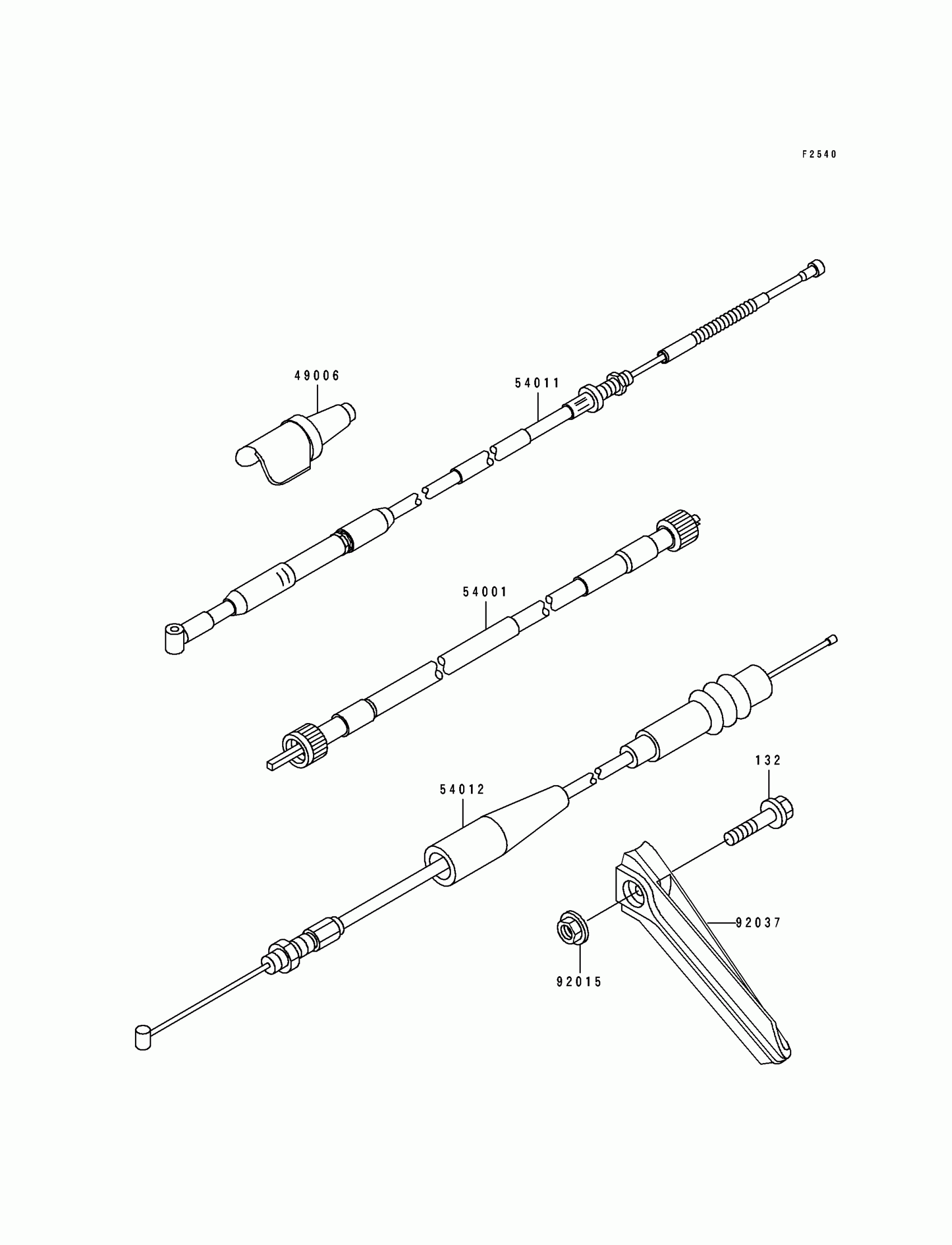

1991 Kawasaki KDX200 Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49006

BOOT

49006-1189

1

$11.03

In stock

54001

CABLE-SPEEDOMETER

54001-1156

1
Out of stock

54011

CABLE-CLUTCH

54011-1296

1

$27.36

In stock

54012

CABLE-THROTTLE

54012-1360

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92037

CLAMP,CABLE

92037-1481

1

$47.29

In stock

132

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock
