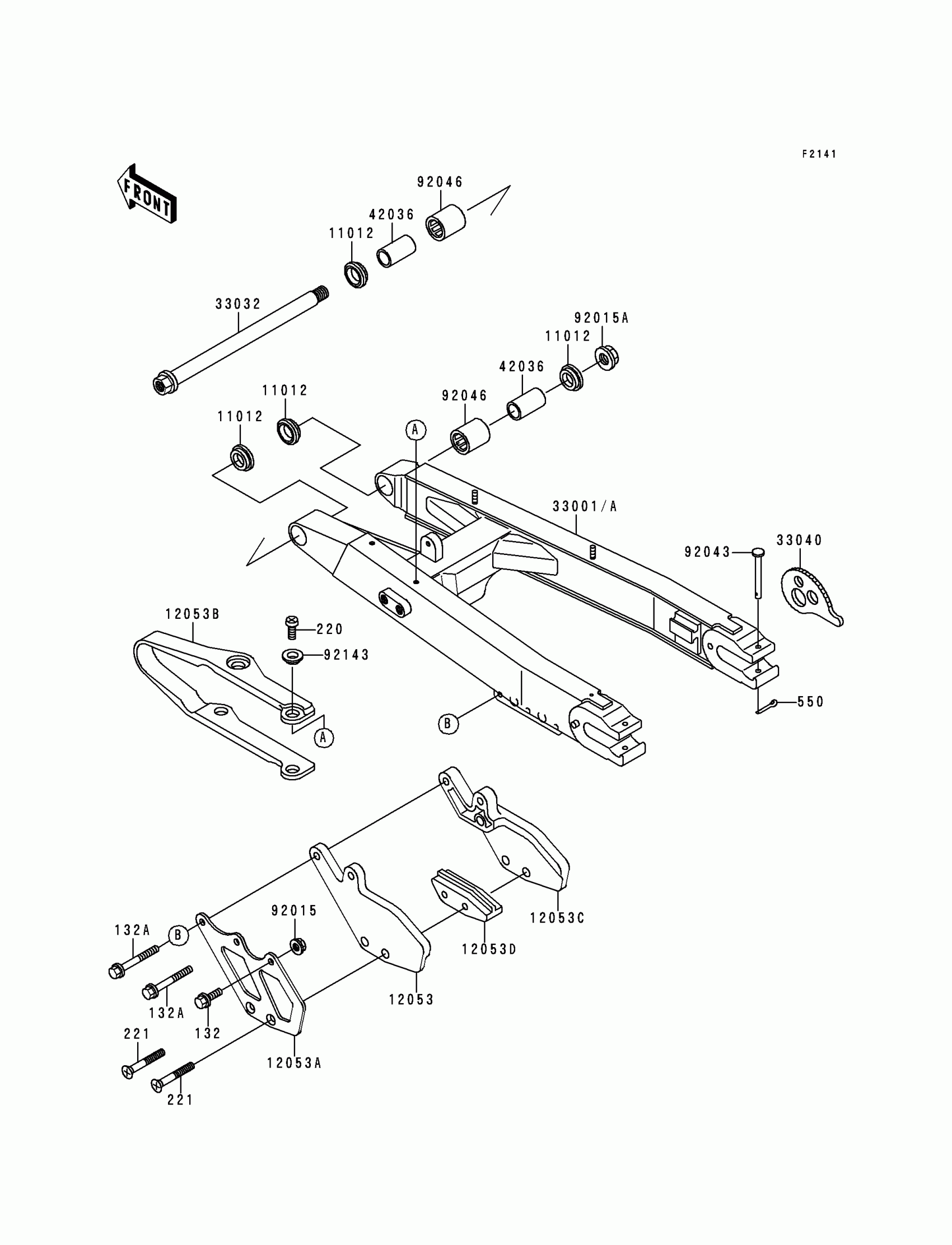

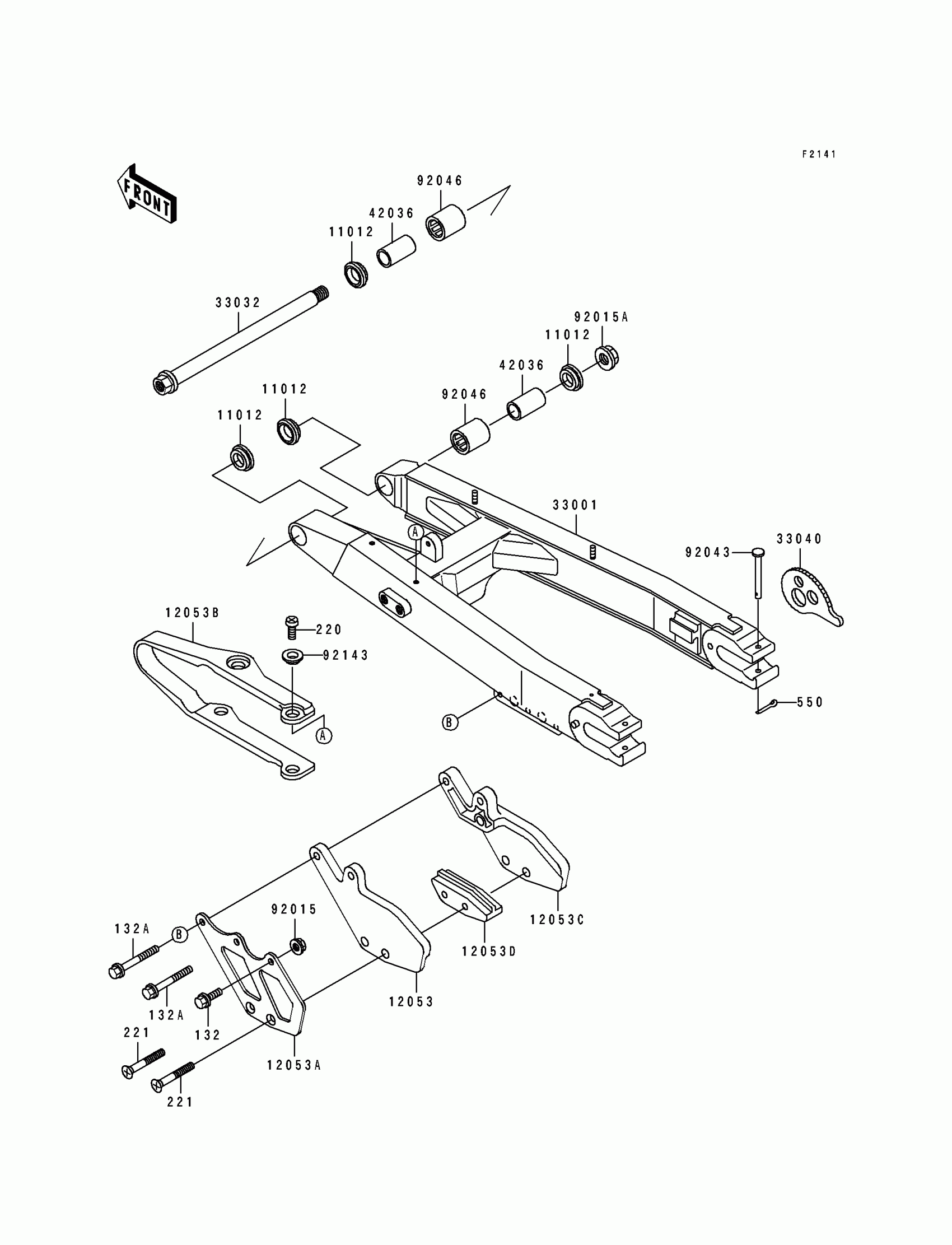

Find the part on the Swing ARM diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KDX200 Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

1

$30.26

In stock

12053A

1

$36.58

In stock

12053B

GUIDE-CHAIN,FR

12053-1240

1

$64.64

In stock

12053C

GUIDE-CHAIN,RR,OUTSIDE

12053-1255

1
Out of stock

12053D

1

$40.84

In stock

33001

1

$906.61

In stock

33032

SHAFT-SWING ARM

33032-1137

1

$64.64

In stock

33040

ADJUSTER-CHAIN

33040-1067

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1064

1

$19.97

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92043

PIN,6X55

92043-1423

1
Out of stock

92046

BEARING-NEEDLE

92046-1128

1
Out of stock

92143

COLLAR

92143-1156

1

$4.93

In stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock

220

1

$0.63

In stock

221

1

$3.28

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
