1991 Kawasaki KDX200 Suspension Diagram

← All diagrams

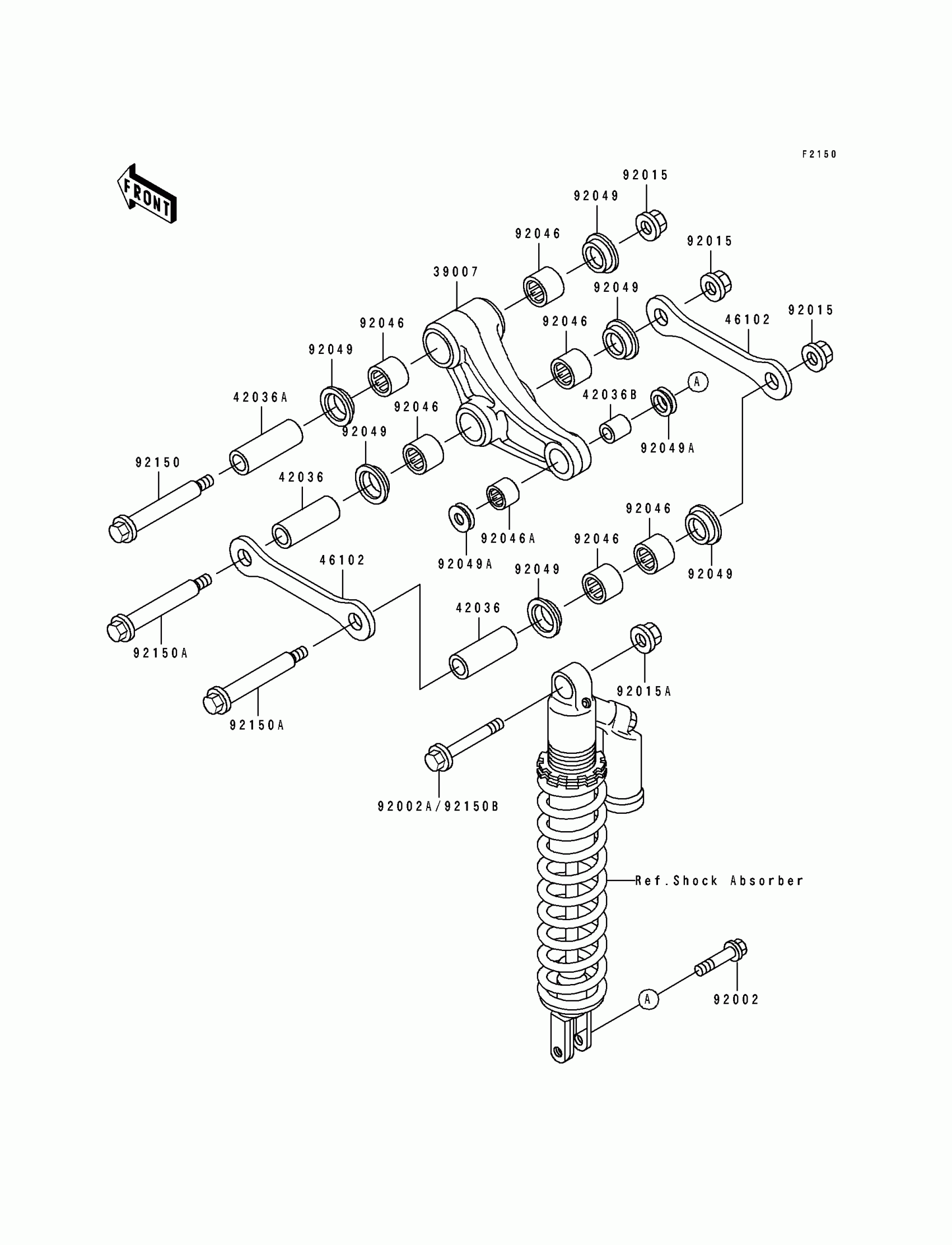

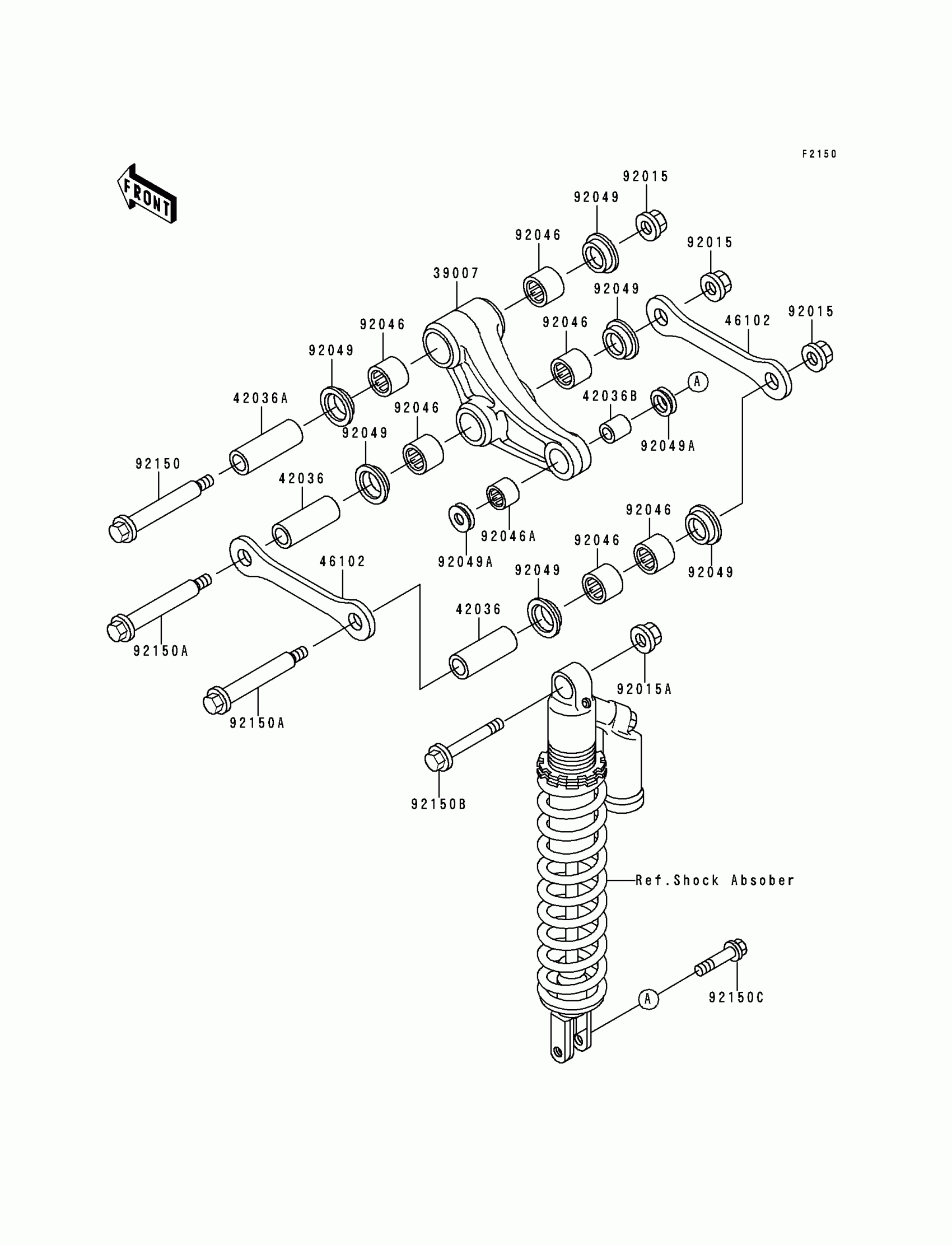

Find the part on the Suspension diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KDX200 Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1180

1

$228.75

In stock

42036

SLEEVE,15X22X57

42036-1245

1

$19.97

In stock

42036A

SLEEVE,15X22X63

42036-1246

1

$24.44

In stock

42036B

SLEEVE,10X16X19

42036-1248

1

$7.86

In stock

46102

ROD,SUSPENSION

46102-1258

1

$84.18

In stock

92002

BOLT,10X40

92002-1675

1
Out of stock

92015

1

$7.04

In stock

92015A

NUT,FLANGED,10MM

92015-1502

1

$8.16

In stock

92046

BEARING-NEEDLE,F-2220

92046-1162

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

1
Out of stock

92049A

SEAL-OIL

92049-1330

1
Out of stock

92150

BOLT,ARM,12MM

92150-1195

1

$23.97

In stock

92150A

BOLT,ROD,12X85

92150-1213

1

$23.92

In stock

92150B

BOLT,FLANGED,10X63

92150-1384

1

$10.88

In stock
