1990 Kawasaki KD80 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

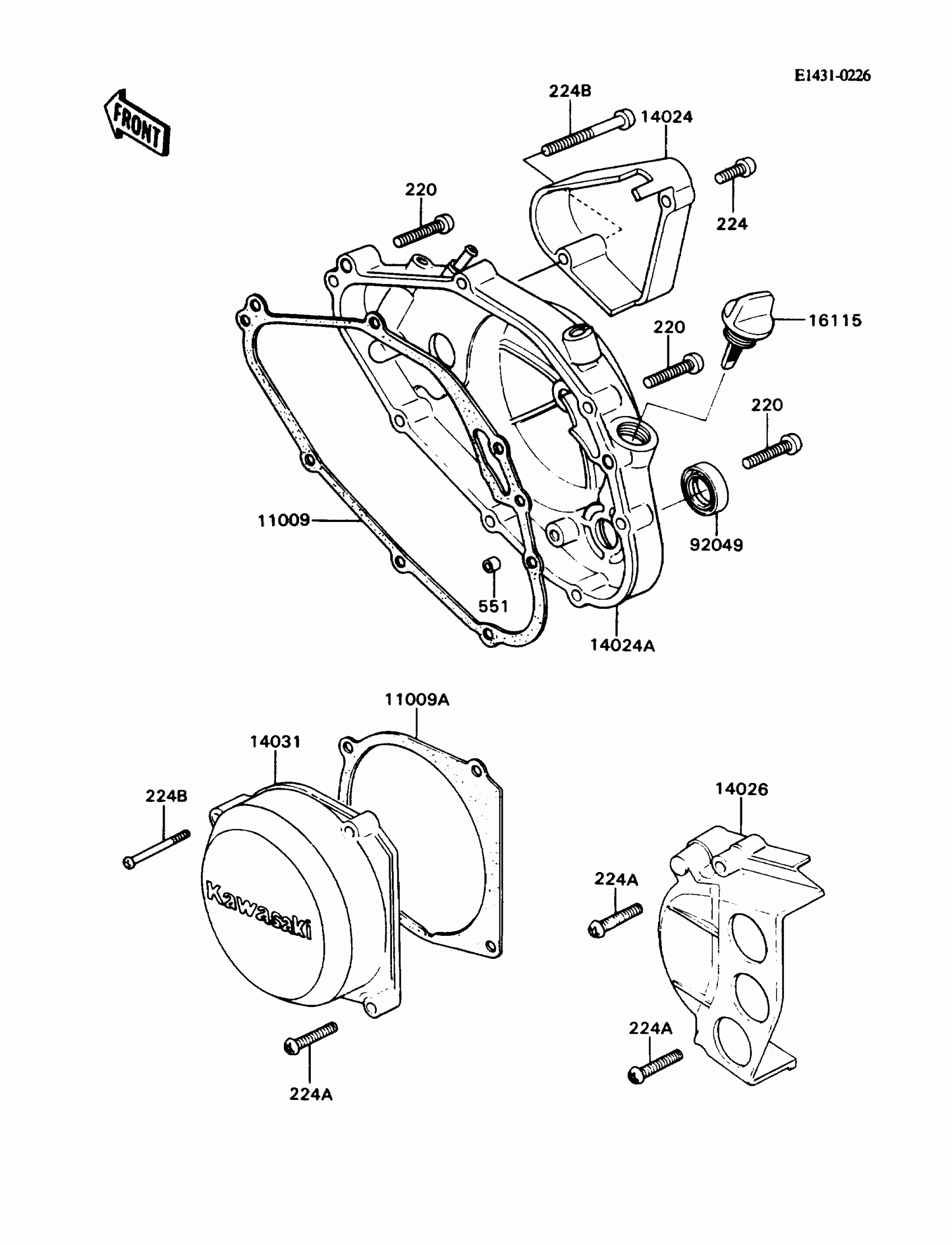

1990 Kawasaki KD80 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CLUTCH COVER

11009-1213

1
Out of stock

11009A

GASKET,GENERATOR COVER

11009-1214

1
Out of stock

14024

COVER

14025-1574

1
Out of stock

14024A

COVER,CLUTCH

14025-5039

1
Out of stock

14026

COVER-CHAIN

14026-1142

1
Out of stock

14031

COVER-GENERATOR

14031-1108

1
Out of stock

16115

CAP-OIL FILLER

16115-1057

1

$11.71

In stock

92049

SEAL-OIL,TB16267

92051-003

1
Out of stock

220

1

$1.63

In stock

224

SCREW-PAN-WP-CROS

224C0614

1
Out of stock

224A

SCREW-PAN-WP-CROS,6X30

224C0630

1
Out of stock

224B

SCREW-PAN-WP-CROS

224C0640

1
Out of stock

551

PIN-DOWEL

551A0628

1

$4.02

In stock
