Find the part on the Crankshaft/piston diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

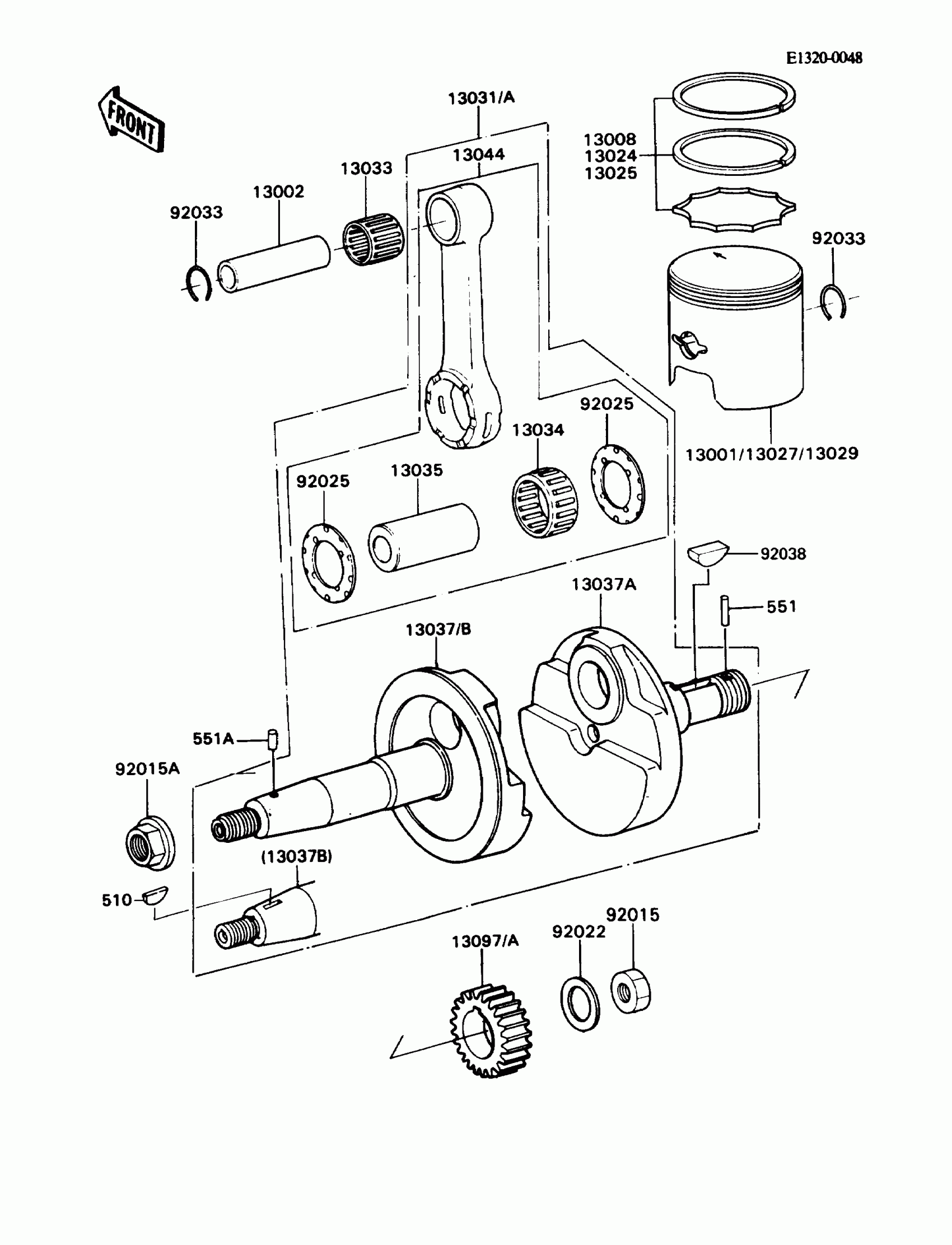

1990 Kawasaki KD80 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,STD

13001-1281

1
Out of stock

13002

PIN-PISTON

13002-1076

1

$21.41

In stock

13008

RING-SET-PISTON,STD

13008-1123

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-1084

1
Out of stock

13025

1

$65.59

In stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-1155

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1178

1
Out of stock

13031A

CRANKSHAFT-COMP

13031-1295

1
Out of stock

13033

BEARING-SMALL END

13033-1009

1

$23.73

In stock

13034

BEARING-BIG END,PK18X24X11.8X3

13034-1029

1
Out of stock

13035

PIN-CRANK

13035-1055

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1325

1
Out of stock

13037B

CRANKSHAFT,LH

13037-1376

1
Out of stock

13044

SET-CONNECTING ROD

13044-5020

1
Out of stock

13097A

GEAR-PRIMARY SPUR,21T

13097-1228

1
Out of stock

92015

NUT,LOCK,16MM

92015-072

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-077

1
Out of stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92025

SHIM,CRANK SHAFT

92025-1199

1
Out of stock

92033

1

$3.10

In stock

92038

KEY,WOODRUFF

92038-003

1

$4.23

In stock

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

551

PIN-DOWEL,2X12

551A0212

1

$2.08

In stock
