1976 Kawasaki KD80 Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

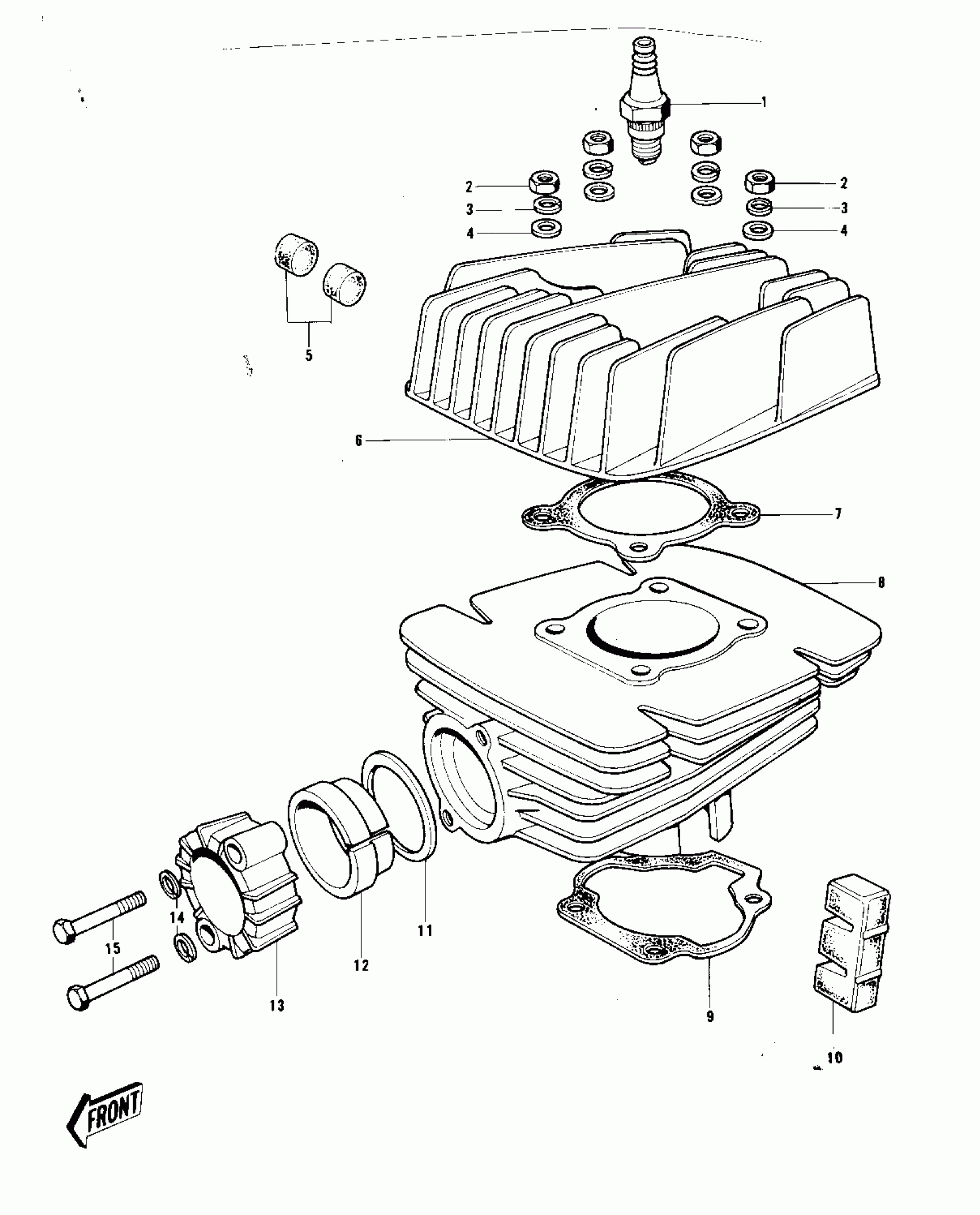

1976 Kawasaki KD80 Cylinder Head/cylinder Diagram

#

Description
Price
Status
Order Qty

1

SPARK PLUG B7HS

B7HS

Out of stock

2

NUT,8MM

311B0800

Out of stock

3

WASHER SPRING 8MM

461F0800

Out of stock

4

WASHER PLAIN 8MM

411B0800

Out of stock

5

DAMPER RUBBER-CYL HD

92075-117

Out of stock

6

CYLINDER HEAD

11001-085

Out of stock

7

GASKET CYLINDER HEAD

11004-015

Out of stock

8

CYLINDER,BLACK

11005-152-10

Out of stock

9

GASKET,CYLINDER BASE

11060-1200

Out of stock

10

DAMPER RUBBER-CYLNDER

92075-142

Out of stock

11

GASKET,EXHAUST PIPE H

11009-1866

Out of stock

12

INSERT-EXHAUST HOLDER

18070-005

Out of stock

13

HOLDER,EX PIPE,BLACK

18069-035-21

Out of stock

14

WASHER SPRING 6MM

461F0600

Out of stock

15

BOLT-UPSET,6X35

112G0635

Out of stock
