1976 Kawasaki KD80 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

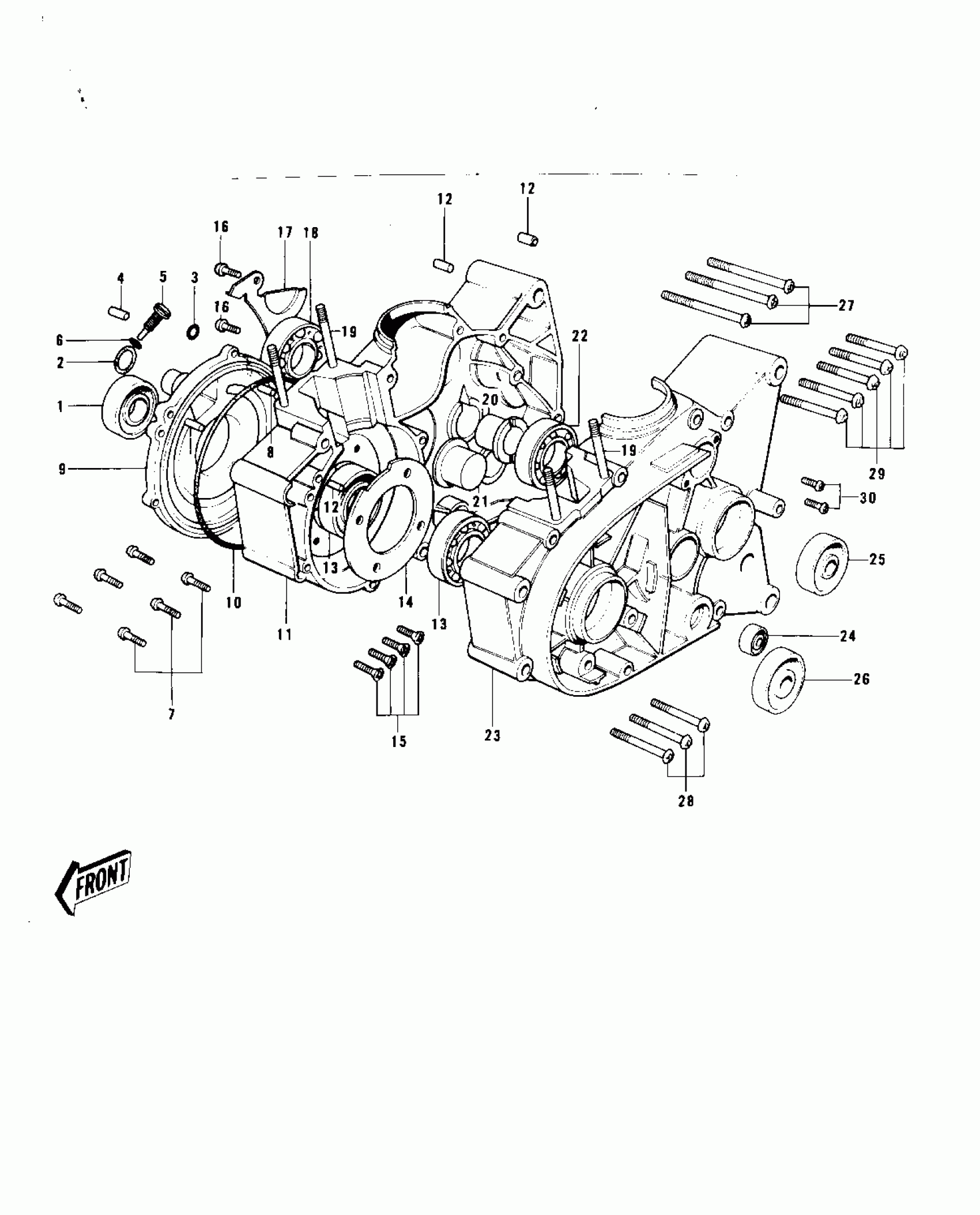

1976 Kawasaki KD80 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

SEAL-OIL

92049-1250

Out of stock

2

O RING,26MM

670B3026

$4.06

In stock

3

RING-O,7.8X3.5

92055-029

$3.65

In stock

4

PIN,DOWEL,8X16

92042-017

$5.10

In stock

5

NOZZLE OIL INJECTION

92062-004

Out of stock

6

"0" RING,5MM

92055-011

Out of stock

7

$4.61

In stock

8

ROLLER,5X12

610A0512

$4.53

In stock

9

COVER ROTARY DISC VLV

14019-032

Out of stock

10

RING-O,100MM

92055-010

$7.95

In stock

11

CRANKCASE,R.H

14003-063

Out of stock

12

PIN DOWEL 8X16

551A0816

$1.14

In stock

13

$10.76

In stock

14

PLATE-POSITION

14014-017

Out of stock

15

$0.63

In stock

16

SCREW PAN HEAD 6X12

220B0612

Out of stock

17

PLATE-POSITION

14014-008

Out of stock

18

$13.33

In stock

19

BOLT-STUD,8X115

172G08115

Out of stock

20

BUSHING,L=14

92028-069

Out of stock

21

BUSHING,L=23.5

92028-025

$40.77

In stock

22

$9.84

In stock

23

CRANKCASE,L.H.

14002-1072

Out of stock

24

SEAL-OIL,SB12205

92049-004

Out of stock

25

SEAL-OIL,SC25376

92050-013

Out of stock

26

SEAL-OIL

92049-1240

Out of stock

27

SCREW PAN HEAD 6X65

220B0665

Out of stock

28

SCREW-PAN-CROS,6X60

220B0660

Out of stock

29

SCREW PAN HEAD 6X40

220B0640

Out of stock

30

SCREW PAN HEAD 6X25

220B0625

Out of stock
