1976 Kawasaki KD80 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

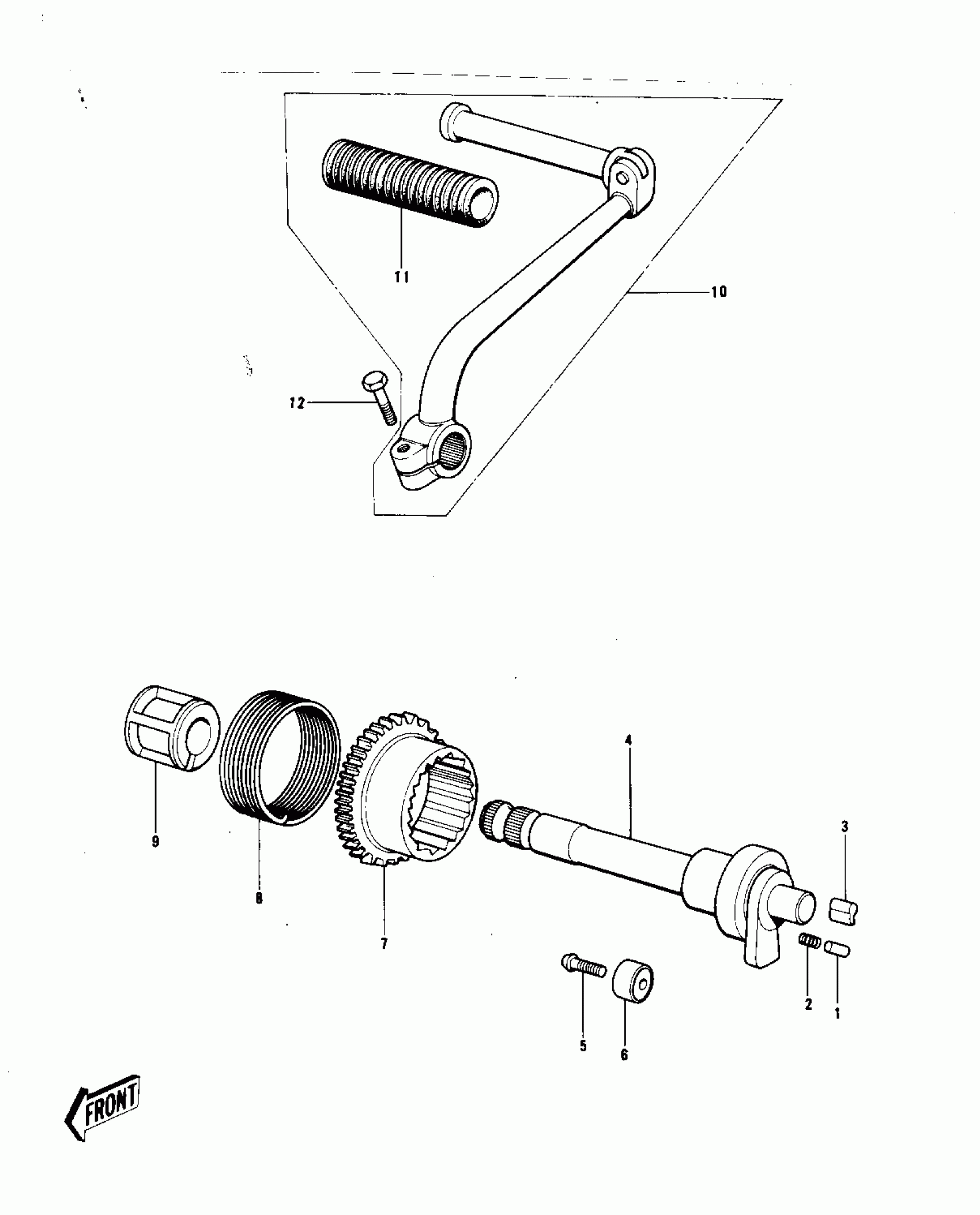

1976 Kawasaki KD80 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PIN,DOWEL,3.9X10.8

92043-013

$4.08

In stock

2

SPRING,KICK PAWL

92081-014

$4.32

In stock

3

PAWL,KICKSTARTER

13069-005

$14.12

In stock

4

SHAFT-KICK

13066-1022

Out of stock

5

$1.98

In stock

6

$9.66

In stock

7

$79.07

In stock

8

$11.58

In stock

9

GUIDE KICK SPRING

13070-003

Out of stock

10

PEDAL, KICKSTARTER

13064-007

Out of stock

11

DAMPER,PEDAL

13063-002

$3.58

In stock

12

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock
