1976 Kawasaki KD80 Oil Pump Diagram

← All diagrams

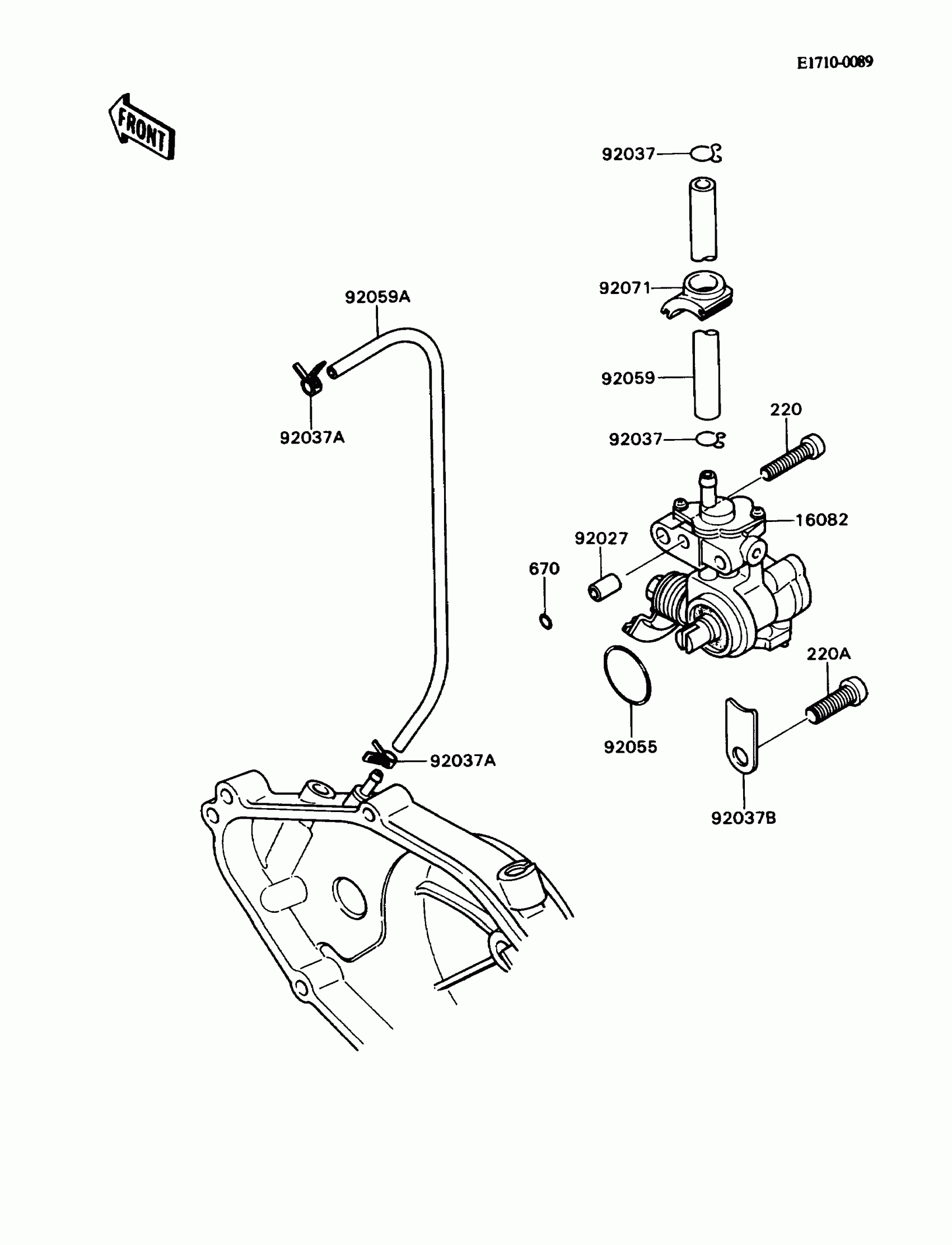

Find the part on the Oil Pump diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KD80 Oil Pump Diagram

#

Description
Price
Status
Order Qty

1

PUMP-ASSY-OIL

16082-067

$261.72

In stock

2

GASKET,OIL PUMP

11060-1160

$4.41

In stock

3

GEAR,OIL PUMP

16085-004

$21.24

In stock

4

SHAFT,OIL PUMP

16086-001

$15.56

In stock

5

KEY-WOODRUFF

510A3100

$2.17

In stock

6

CIRCLIP-TYPE-E,9MM

482K9000

Out of stock

7

SCREW-PAN-CROS

220B0514

Out of stock

8

SCREW-PAN-CROS

220B0528

$1.34

In stock

9

$3.12

In stock

10

FITTING,BANJO

92061-009

Out of stock

11

TUBE,OIL

16134-021

Out of stock

12

VALVE-CHECK

16128-009

$22.83

In stock

13

RING-SNAP

92036-022

Out of stock

14

FITTING,BANJO

92061-018

$8.45

In stock

15

BOLT,BANJO,L=16

92060-013

$5.16

In stock

16

$3.13

In stock

17

GROMMET

21017-002

$4.23

In stock

18

GROMMET,OIL PIPE

92071-067

$4.96

In stock

19

$9.02

In stock

20

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

Out of stock

21

"0" RING,LOWER CAP

16090-003

Out of stock

22

$7.84

In stock

23

$3.43

In stock

24

$5.76

In stock

25

LEVER-OIL PUMP

16096-012

$18.19

In stock
