1981 Yamaha IT175 (IT175H) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1981 Yamaha IT175 (IT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

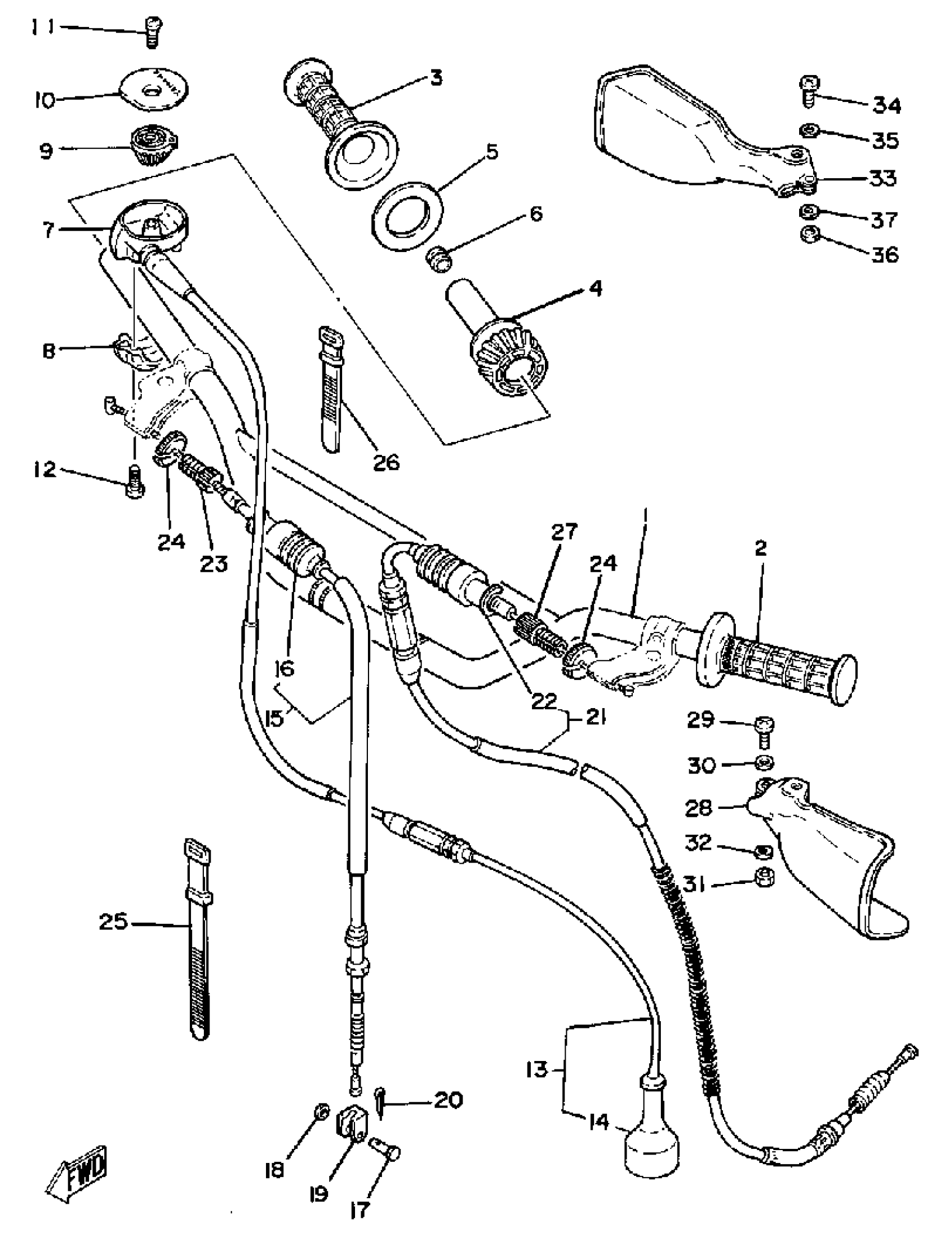

1981 Yamaha IT175 (IT175H) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

2A8-26111-00-00

1

$113.06

In stock

2

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

3

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

4

TUBE, THRTL GUIDE

4V6-26243-00-00

1
Out of stock

5

RING, LEAF

4V4-26249-00-00

1
Out of stock

6

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

7

CAP, GRIP UPPER

4V4-26281-00-00

1
Out of stock

8

CAP, GRIP LOWER

4V4-26282-00-00

1
Out of stock

9

GEAR, BEVEL

4V6-2628E-00-00

1
Out of stock

10

CAP, GEAR

4V4-2628F-09-00

—

$26.52

In stock

11

SCREW, BINDING

98907-05010-00

1
Out of stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

CABLE, THROTTLE 1

3R6-26311-10-00

1
Out of stock

14

. CAP, RUBBER

500-26329-01-00

1
Out of stock

15

CABLE, BRAKE

3R6-26341-01-00

1
Out of stock

16

BOOT, WIRE

1E6-26342-00-00

—

$26.82

In stock

17

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

18

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

19

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

CABLE, CLUTCH

3R3-26335-02-00

1
Out of stock

22

BOOT, WIRE

1E6-26342-00-00

—

$26.82

In stock

23

BOLT

90123-08002-00

—

$8.93

In stock

24

NUT

90179-08030-00

—

$3.78

In stock

25

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

26

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

27

BOLT

90123-08002-00

—

$8.93

In stock

28

GUARD, BRUSH 1

3Y0-26141-00-00

1
Out of stock

29

SCREW, PAN

98507-06014-00

—

$6.18

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

NUT(650)

95380-06700-00

—

$6.17

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

GUARD, BRUSH 2

3Y0-26142-00-00

1
Out of stock

34

SCREW, PAN

98507-06014-00

—

$6.18

In stock

35

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

36

NUT(650)

95380-06700-00

—

$6.17

In stock

37

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
