1981 Yamaha IT175 (IT175H) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha IT175 (IT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

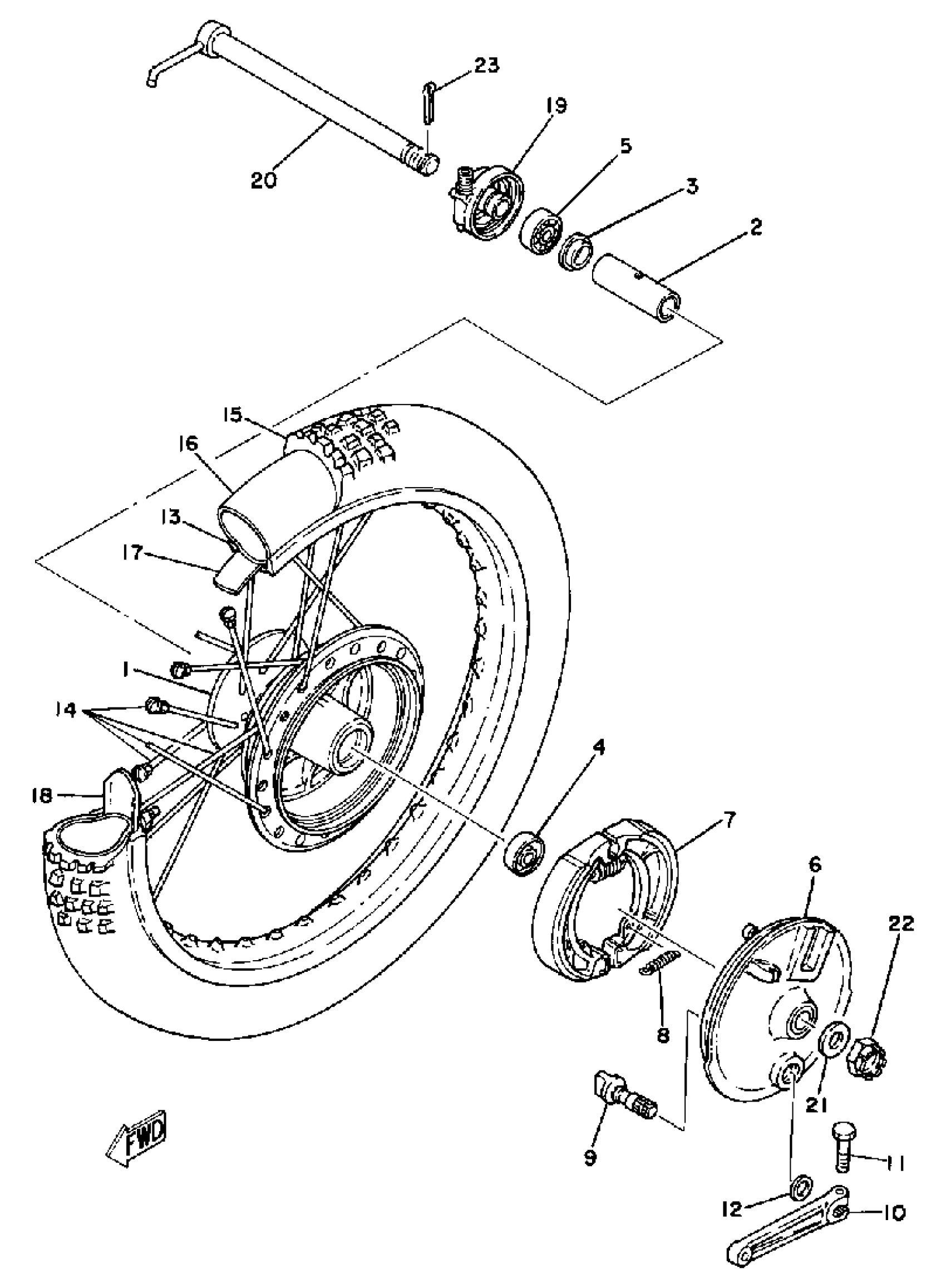

1981 Yamaha IT175 (IT175H) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

1
Out of stock

7

BRAKE SHOE KIT

322-W253A-10-00

1

$31.99

In stock

8

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

9

CAMSHAFT

23X-25151-00-00

1
Out of stock

10

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

11

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

12

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

13

RIM 1.60X21

94416-21234-00

1
Out of stock

14

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

15

IRC 300X21 VE-21

(94130-21584-00)

1
Out of stock

16

TUBE

94230-21126-00

1
Out of stock

17

BAND, RIM

(94330-21088-00)

1
Out of stock

18

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

19

GEAR UNIT ASSY

3XP-25190-00-00

—
Out of stock

20

AXLE, WHEEL

1W2-25181-02-00

1
Out of stock

21

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock

22

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

23

PIN, COTTER

91490-30030-00

—

$7.15

In stock
