1977 Suzuki GT750 Water Pump Diagram

← All diagrams

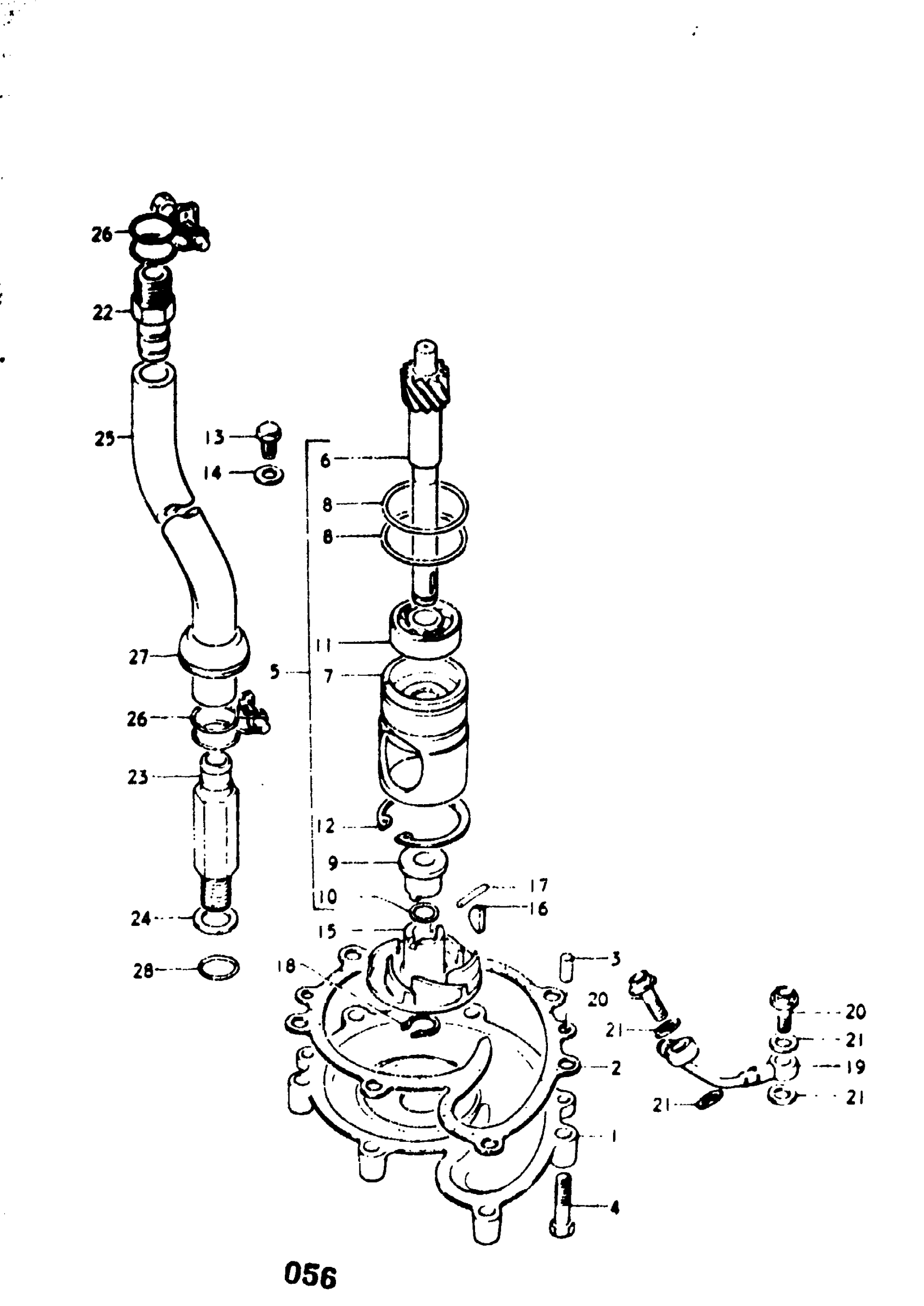

Find the part on the Water Pump diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, WATER PUMP | K,L,M,A,B

17411-31001

1
Out of stock

2

GASKET,WTR PUMP | K,L,M,A,B; FROM 17431-31001 This part replaces 17431-31002.

17431-31002-H17

1
Out of stock

3

PIN | K,L,M,A,B This part replaces 06211-05103.

04221-05109

2
Out of stock

4

BOLT | K,L,M,A,B This part replaces 01112-06258.

01500-06257

8
Out of stock

5

WATER PUMP SET | K; TO 17400-31830

17000-31819

—
Out of stock

5

WATER PUMP SET | K,L,M,A,B; F.NO. 37158~; Includes Item(s) 6 - 11

17400-31830

1
Out of stock

6

SHAFT, DRIVEN | K; TO 17461-31001 This part replaces 17461-31000.

17461-31001

1
Out of stock

6

SHAFT, DRIVEN | K,L,M,A,B; F.NO. 37158~

17461-31001

1
Out of stock

7

DRIVEN SHAFT HOLDER SET | K,L,M,A,B

17400-31809

1
Out of stock

8

O RING, GEAR HOUSING | K,L,M,A,B; 32.6x1.9 This part replaces 09280-33001.

09280-33005

2
Out of stock

9

SEALING SEAT | K,L,M,A,B

17476-31000

1
Out of stock

10

O RING | K,L,M,A,B; 9.6x1.3

09280-10001

1
Out of stock

11

BEARING | K,L,M,A,B

08110-62000

1

$15.80

In stock

12

CIRCLIP | K,L,M,A,B This part replaces 09381-40001.

08331-41406

1
Out of stock

13

BOLT (6X10) | K,L,M,A,B This part replaces 09135-06002.

09135-06501

1
Out of stock

14

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

1
Out of stock

15

IMPELLER, WATER PUMP | K,L,M,A,B; FROM 17466-31000

17466-31001

1
Out of stock

16

KEY | K

08341-31039

1
Out of stock

17

PIN | K,L,M,A,B; P. NO. 37158~

09205-03012

1
Out of stock

18

CIRCLIP | K,L,M,A,B This part replaces 08331-11109.

08331-31109

1
Out of stock

19

PIPE, AIR BREATHER | K,L,M,A,B

17620-31030

—
Out of stock

20

UNION BOLT | K,L,M,A,B

09360-06003

2
Out of stock

21

GASKET | K,L,M,A,B; 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

4
Out of stock

22

UNION, WATER BY-PASS HOSE (1) | K,L,M,A,B

09362-16001

1
Out of stock

23

UNION, WATER BY-PASS HOSE (2) | K,L,M,A,B

17631-31000

1
Out of stock

24

GASKET | K,L,M,A,B

09168-14004

1
Out of stock

25

HOSE, WATER BY-PASS | K,L,M,A,B

09343-13004

1
Out of stock

26

CLAMP | K; TO 09400-22301 This part replaces 09400-00001.

09400-22312

2
Out of stock

26

CLAMP | L,M,A,B This part replaces 09400-22301.

09400-22312

2
Out of stock

27

GROMMET | K,L,M,A,B

09308-18005

1
Out of stock

28

O RING, OIL GALLERY | K,L,M,A,B This part replaces 09280-12002.

09280-12012

1
Out of stock
