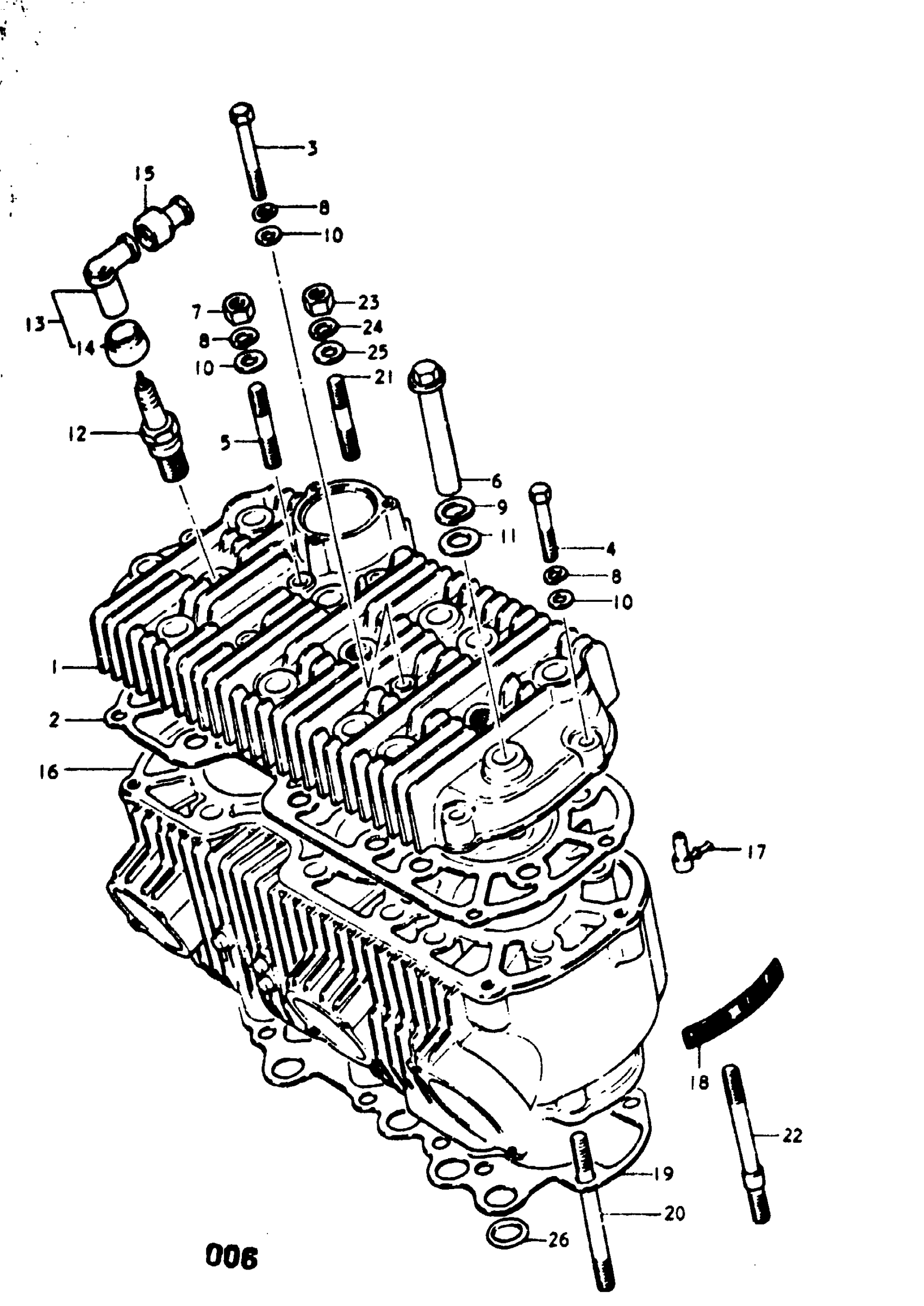

Find the part on the Cylinder diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD | K; TO 1111-31003

11111-31001

—
Out of stock

1

CYLINDER HEAD | L,M,A,B

11111-31003

1
Out of stock

2

NO DESCRIPTION AVAILABLE | K,L This part replaces 11141-31002.

11141-31010

1
Out of stock

2

CYLINDER HEAD G | M,A; ~E.NO. 76671 TO 11141-31681 This part replaces 11141-31680.

11141-31690

1
Out of stock

2

CYLINDER HEAD G | B This part replaces 11141-31681.

11141-31690

1
Out of stock

3

BOLT | K,L,M,A,B; FROM 09104-08009 This part replaces 01221-08557.

01204-08557

3
Out of stock

4

BOLT | K,L,M,A,B; FROM 09104-08008 This part replaces 01221-08407.

01204-08407

4
Out of stock

5

STUD BOLT | K,L,M,A,B

09108-08035

1
Out of stock

6

NUT | K,L,M,A,B

09159-10010

11
Out of stock

7

1

$1.93

In stock

9

WASHER,LOCK | K,L,M,A,B This part replaces 08321-21148.

08321-0114A

11
Out of stock

10

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

8
Out of stock

11

WASHER | K,L,M,A,B

09168-14008

11
Out of stock

12

SPARK PLUG | K; NGK B-7ES TO 09482-00054

09482-00055

—
Out of stock

12

SPARK PLUG | K,L; NGK B-6ES

09482-00054

3
Out of stock

12

SPARK PLUG | M,A,B; NGK B-8ES FROM 09482-00056

09482-00091

3
Out of stock

12

SPARK PLUG | K; ND W22ES TO 09482-00068

09482-00046

—
Out of stock

12

SPARK PLUG | K,L; ND W20ES

09482-00068

—
Out of stock

12

SPARK PLUG W24E | M,A,B; NO W24ES FROM 09482-00047 This part replaces 09482-00092.

09482-00247-111

3
Out of stock

13

CAP, SPARK PLUG | K,L,M,A,B; Includes Item(s) 14 This part replaces 33510-31010.

33510-97313

3
Out of stock

14

SEAL, SPARK PLUG CAP | K,L,M,A,B

33541-31010

3
Out of stock

15

SEAL,HIGH TENSION CORD (SIDE) | K,L,M,A,B This part replaces 33542-98000.

33542-38B00

3
Out of stock

16

CYLINDER | K; ~F.NO.31252 TO 11210-31600 This part replaces 11210-31003.

11210-31600

1
Out of stock

16

CYLINDER | L,M,A,B; Includes Item(s) 17

11210-31600

1
Out of stock

17

UNION, OIL HOSE | K,L,M,A,B This part replaces 16910-31000.

16910-31010

3
Out of stock

18

EMBLEM, CYLINDER | K,L,M,A,B; "LIQUID COOLED"

68262-31200

2
Out of stock

19

GASKET,CYLINDER | K,L,M,A,B This part replaces 11241-31000.

11241-31001

1
Out of stock

20

STUD BOLT | KL,M,A,B

09108-10006

11
Out of stock

21

BOLT,STUD | K,L,M,A,B This part replaces 01421-10258.

01421-1025B

1
Out of stock

22

STUD BOLT | L,M,A,B

09108-10012

2
Out of stock

23

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

1
Out of stock

24

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

1
Out of stock

25

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

1
Out of stock

26

.O-RING (D:2.4,ID:21.8) | K,L,M,A,B

09280-22001

3
Out of stock
