1977 Suzuki GT750 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

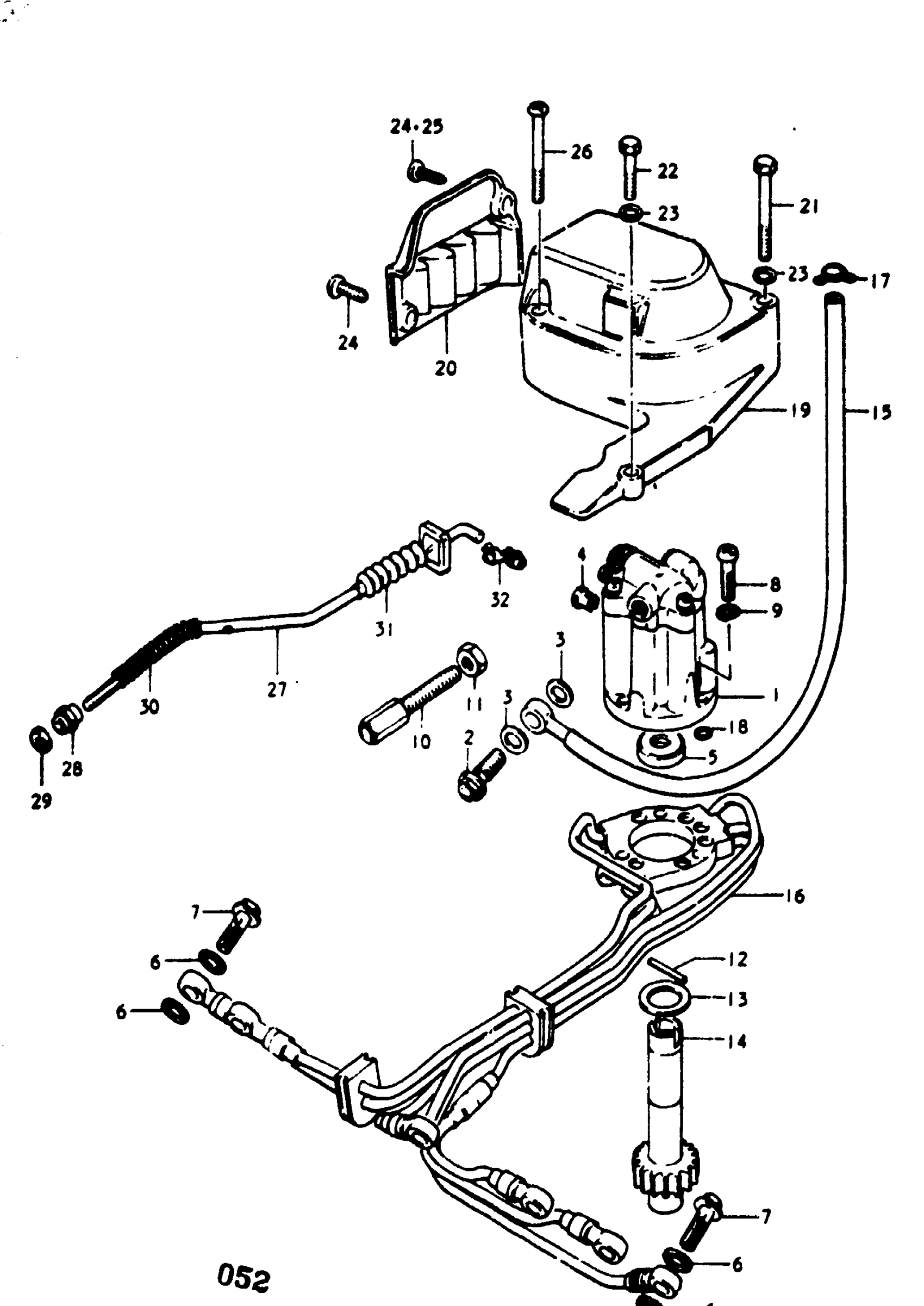

1977 Suzuki GT750 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, OIL | K; FROM 16002-31804

16100-31002

—
Out of stock

1

PUMP, OIL | L,M; FROM 16100-31831 This part replaces 16100-31201.

16100-31202

1
Out of stock

1

PUMP, OIL | A,B; FROM 16100-31201

16100-31202

1
Out of stock

2

UNION BOLT | K,L,M,A,B; 6x16

09360-06003

1
Out of stock

3

GASKET | K,L,M,A,B; 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

2
Out of stock

4

TERMINAL, CABLE | K This part replaces 16292-03110.

16292-03112

1
Out of stock

5

OIL SEAL | K,L,M,A,B

09285-08002

1
Out of stock

6

GASKET | K,L,M,A,B; 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

12
Out of stock

7

UNION BOLT | K,L,M,A,B; 6x16

09360-06003

6
Out of stock

8

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

3
Out of stock

9

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

3
Out of stock

10

BOLT | K

09119-08014

1
Out of stock

11

1

$1.93

In stock

12

PIN | K,L,M,A,B

09261-03010

1
Out of stock

13

WASHER, RH (14X22X1.0) | K,L,M,A,B This part replaces 08211-14221.

09181-14167

1
Out of stock

14

SHAFT, OIL PUMP DRIVEN | K,L,M,A,B; NT:15

16331-31001

1
Out of stock

15

HOSE, OIL NO. 1 | K,L,M,A,B; FROM 16810-05031

16810-31200

1
Out of stock

16

HOSE, OIL NO.2 | K,L,M,A,B

16820-31031

1
Out of stock

17

OIL HOSE CLAMP | K,L; FROM 09400-00107 This part replaces 09400-10301.

09400-10302

1
Out of stock

17

CLAMP | M,A,B

09401-08401

1
Out of stock

18

O RING | K,L,M,A,B

09280-03002

6
Out of stock

19

COVER, OIL PUMP NO.1 | K,L,M,A,B; ALUMINUM TO 11411-31002,SEE NOTE 1. This part replaces 11411-31001.

11411-31002

—
Out of stock

19

COVER, OIL PUMP NO.1 | A,B; PLASTICS

11411-31002

—
Out of stock

20

COVER, OIL PUMP NO. 2 | K,L,M,A,B

11412-31000

—
Out of stock

21

BOLT 5X45 | K,L,M,A,B This part replaces 01111-05458.

01550-05457

1
Out of stock

22

BOLT | K,L,M,A,B This part replaces 01111-05208.

01500-0520B

1
Out of stock

23

WASHER | B This part replaces 08322-21058.

08322-01057

2
Out of stock

24

SCREW | K,L,M,AB This part replaces 02112-05168.

02112-05167

2
Out of stock

25

SCREW | B

03111-05168

1
Out of stock

26

SCREW | K,L,M,A,B This part replaces 02111-05458.

02112-05457

1
Out of stock

27

ROD, OIL PUMP CONTROL | L,M,A,B

16761-31201

1
Out of stock

28

NUT | L,M,A,B

09140-04001

1
Out of stock

29

NUT | L,M,A,B

09140-04002

1
Out of stock

30

SPRING | L,M,A,B

09440-06016

1
Out of stock

31

BOOT, OIL PUMP CONTROL ROD | L,M,A; TO 16765-31201 This part replaces 16765-31200.

16765-31201

1
Out of stock

32

BOOT, OIL PUMP CONTROL ROD | B

16765-31201

1
Out of stock

32

HOLDER, OIL PUMP CONTROL ROD | K,L,M,A,B

16764-65010

1
Out of stock
