1977 Suzuki GT750 Cooling FAN Diagram

← All diagrams

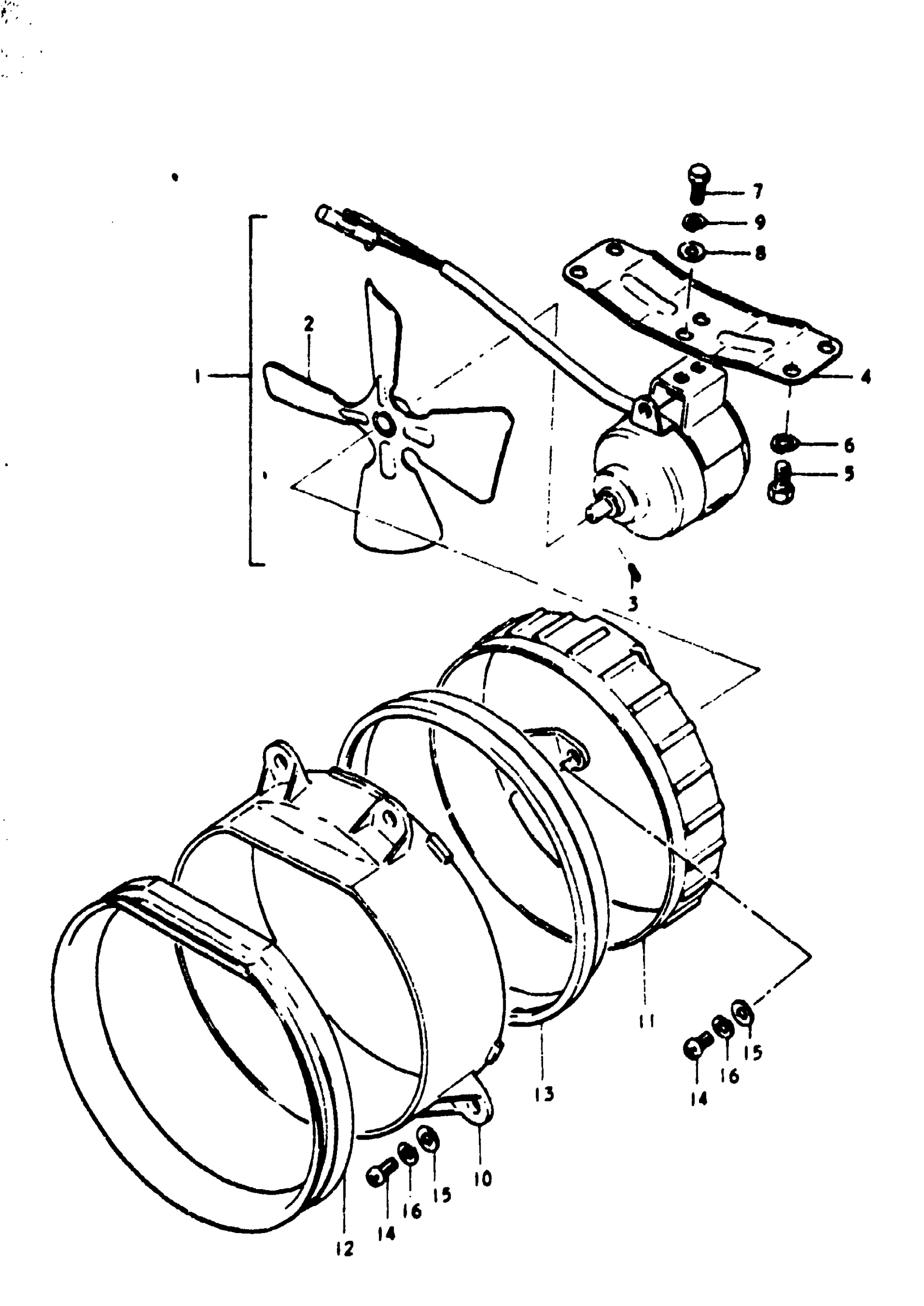

Find the part on the Cooling FAN diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Cooling FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAN, COOLING | K,L,M,A,B; Includes Item(s) 2 - 3

17110-31010

1
Out of stock

2

FAN | K,L,M,A,B

17111-31010

1
Out of stock

3

1

$1.33

In stock

4

BRACKET, MOTOR | K,L,M,A,B

17113-31000

1
Out of stock

5

BOLT | K,L,M,A,B This part replaces 01112-06108.

01500-06107

4
Out of stock

7

BOLT | K,L,M,A,B This part replaces 01112-05108.

01500-0510B

2
Out of stock

8

WASHER | K,L,M,A,B This part replaces 08322-21058.

08322-01057

2
Out of stock

9

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

2
Out of stock

10

STROUD, COOLING FAN (1) | K,L,M,A,B

17765-31000

—
Out of stock

11

SHROUD, COOLING FAN (2) | K,L,M,A,B

17766-31000

1
Out of stock

12

GASKET (1) | K,L,M,A,B

17767-31000

1
Out of stock

13

GASKET (2) | K,L,M,A,B

17768-31000

1
Out of stock

14

SCREW | K,L,M,A,B This part replaces 02111-05108.

02112-05107

7
Out of stock

15

WASHER | K,L,M,A,B This part replaces 08322-21058.

08322-01057

7
Out of stock

16

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

7
Out of stock
