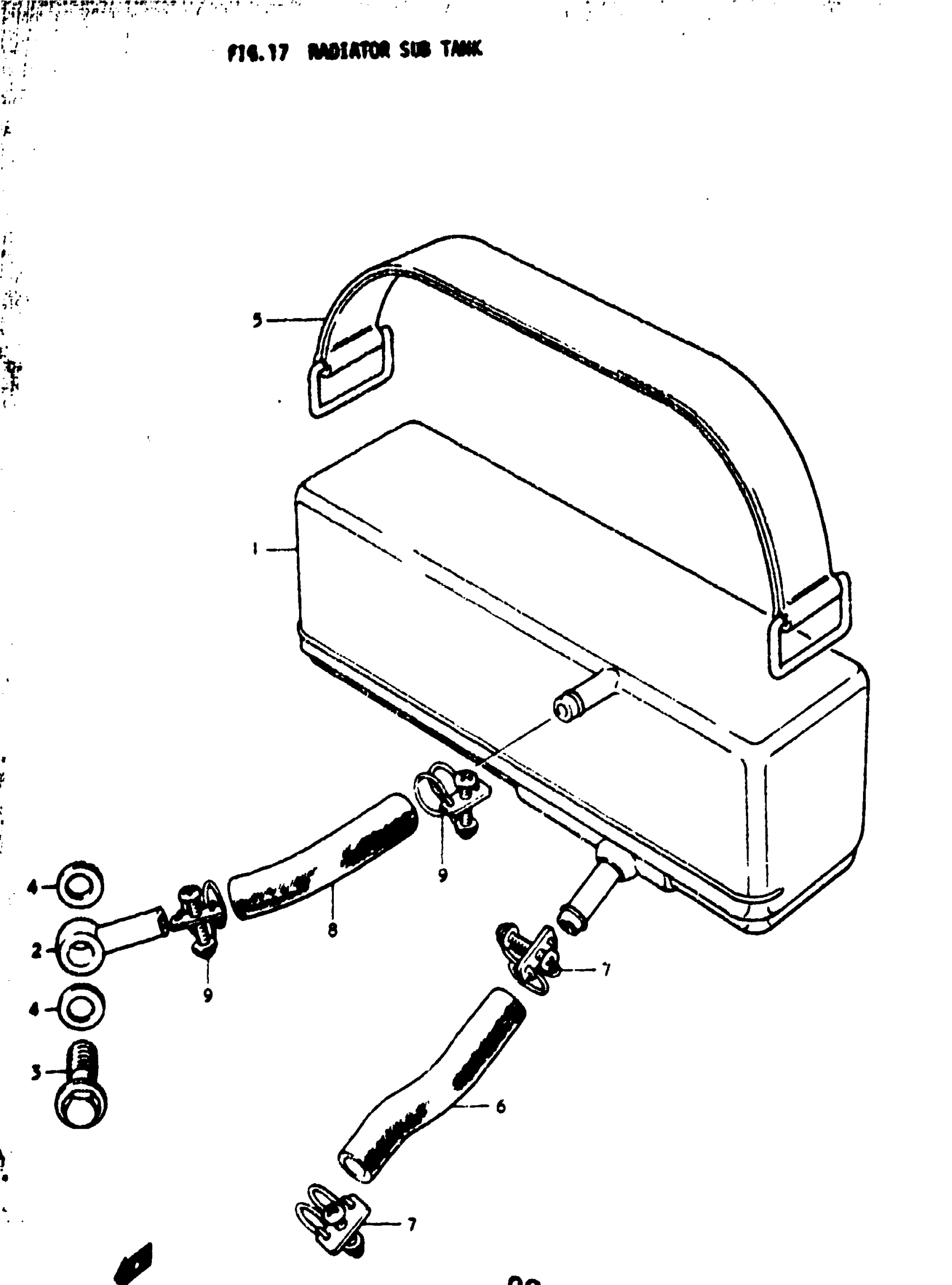

Suzuki GT750 (1977) RADIATOR SUB TANK Diagram

#

Description

Price

1

TANK, RADIATOR SUB | K,L,M,A,B

17721-31000

Unavailable

2

HOSE, OIL (L:512!97) | K,L,M,A,B This part replaces 09363-06006.

16810-07520

Unavailable

3

UNION BOLT | K,L,M,A,B

09360-06003

$3.44

4

GASKET | K,L,M,A,B; 6.0x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.43

5

BAND | K,L,M,A,B This part replaces 09462-00051.

09462-00051-XC0

Unavailable

6

HOSE | K,L,M,A,B; 5.5x9.5x45 TO 09343-05123 This part replaces 09343-05086.

09343-05123

$20.02

6

HOSE (1) | K,L,M,A,B; 5.5x9.5x400

09343-05123

$20.02

7

OIL HOSE CLAMP | K,L,M,A,B This part replaces 09400-10301.

09400-10302

Unavailable

8

HOSE (2) | K,L,M,A,B; 5.5x9.5x52

09343-05087

$6.51

9

OIL HOSE CLAMP | K,L,M,A,B This part replaces 09400-10301.

09400-10302

Unavailable
