1987 Suzuki GSXR50 Oil Pump Diagram

← All diagrams

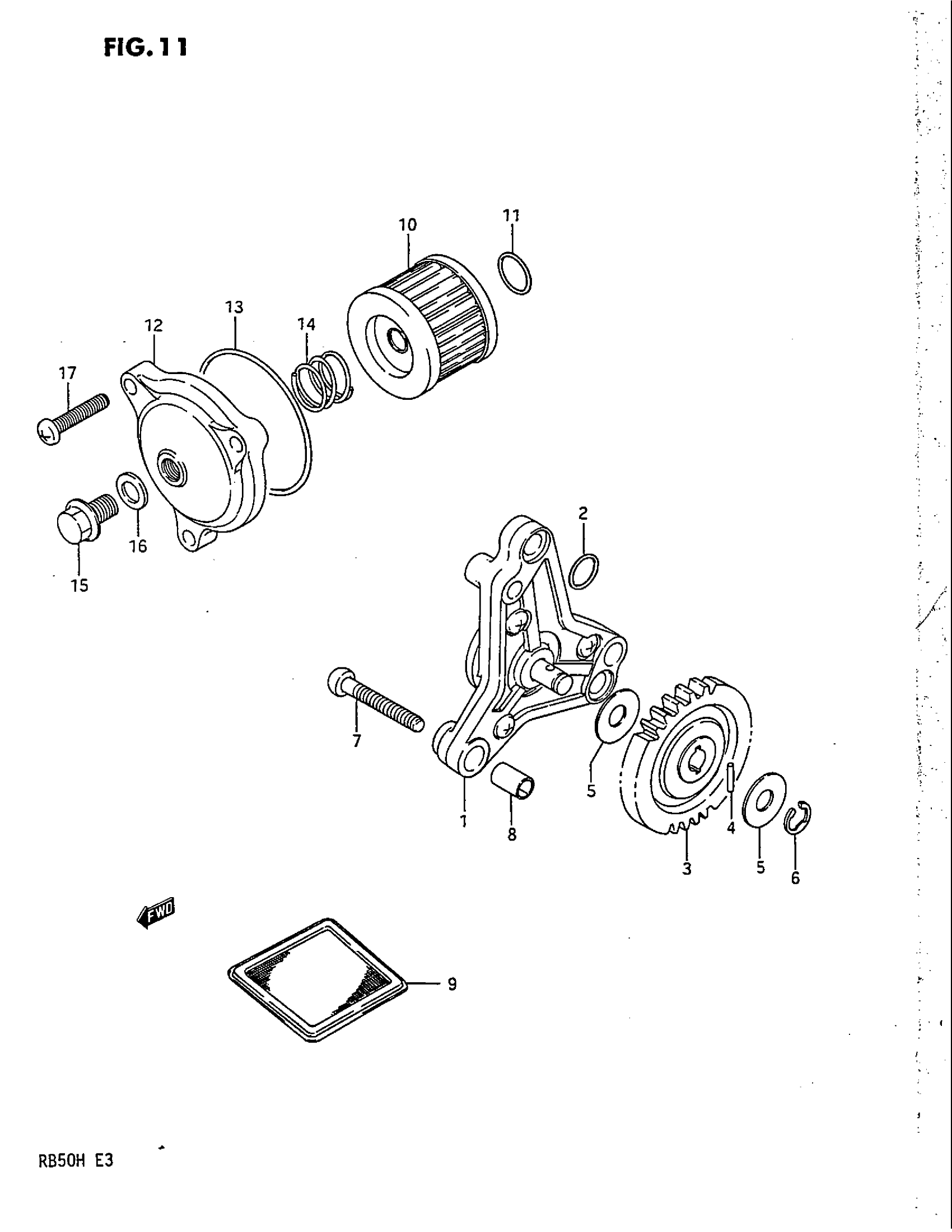

Find the part on the Oil Pump diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-09403

1
Out of stock

2

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

2
Out of stock

4

ROLLER

09261-02008

1

$1.77

In stock

5

WASHER

08211-08201

2

$2.22

In stock

6

1

$1.52

In stock

7

3

$2.39

In stock

8

PIN (H:12)

04211-09129

2
Out of stock

10

FILTER, ENGINE OIL

16510-05240

1
Out of stock

11

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

12

1

$26.24

In stock

13

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

14

SPRING

09440-18002

1
Out of stock

15

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

1
Out of stock

16

GASKET (8.2X14X1.6)

09168-08015

1

$2.92

In stock

17

SCREW This part replaces 02112-06255.

02112-0625A

3
Out of stock
