1987 Suzuki GSXR50 Crankcase Cover Diagram

← All diagrams

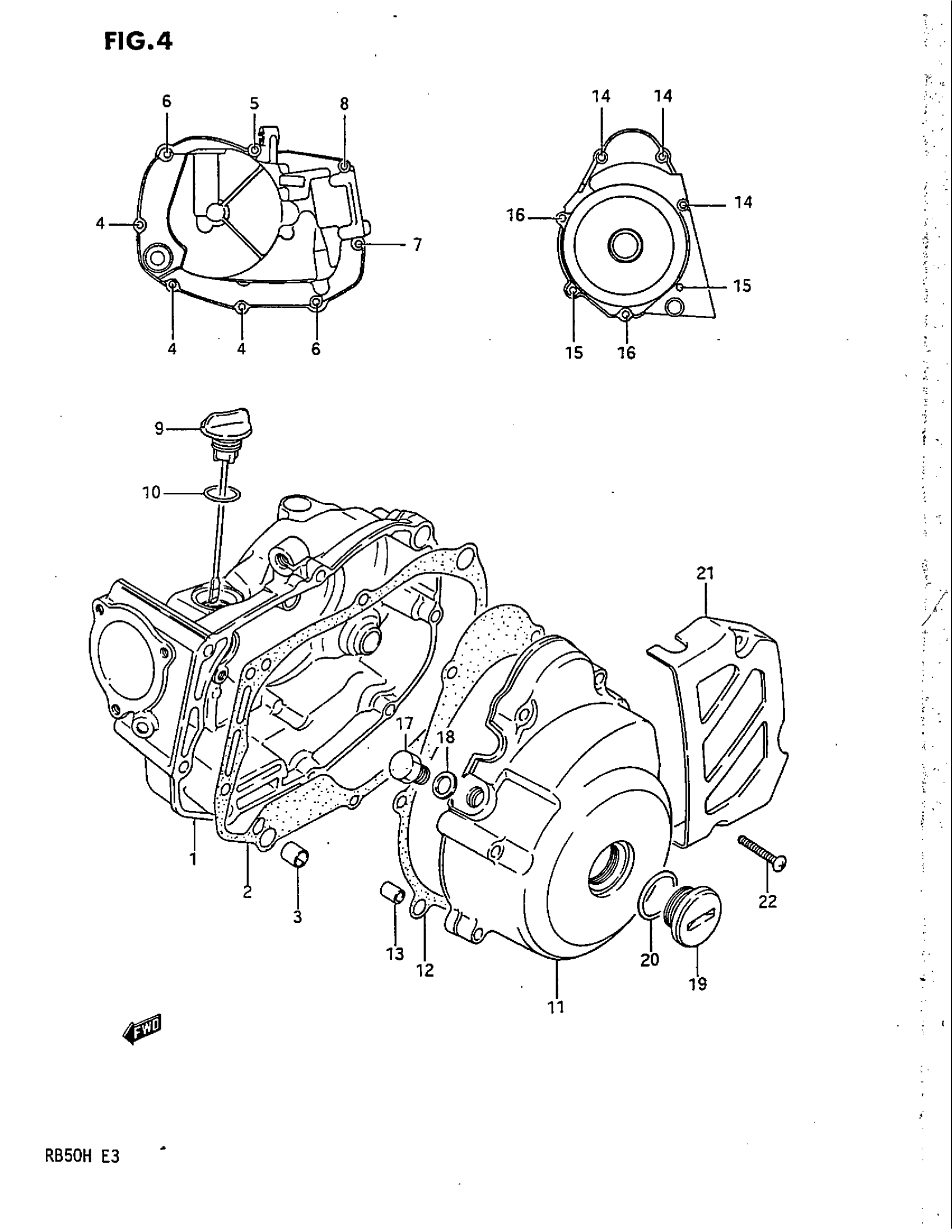

Find the part on the Crankcase Cover diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-28B01

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 11482-09403.

11482-09410

1
Out of stock

3

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

4

SCREW This part replaces 02112-06255.

02112-0625A

3
Out of stock

5

SCREW This part replaces 02112-06355.

02112-0635B

1
Out of stock

6

SCREW This part replaces 02112-06504.

02112-0650B

2
Out of stock

7

SCREW This part replaces 02112-06654.

02112-0665B

1
Out of stock

8

SCREW This part replaces 02112-06905.

02112-06907

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 11971-28B10.

11970-44B30

1
Out of stock

10

O RING

09280-17003

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 11351-28B00.

11351-09421

1
Out of stock

12

GASKET, MAGNETO COVER

11483-09403

1
Out of stock

13

PIN

04211-09129

2
Out of stock

14

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

3
Out of stock

15

SCREW This part replaces 02112-06404.

02112-0640A

2
Out of stock

16

SCREW This part replaces 02112-06504.

02112-0650B

2
Out of stock

17

PLUG

09247-12105

1
Out of stock

18

GASKET

09168-12002

1
Out of stock

19

PLUG

09259-26006

1
Out of stock

20

O RING

09280-22008

1
Out of stock

21

COVER, ENGINE SPROCKET

11360-28B00

1
Out of stock

22

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

2
Out of stock
