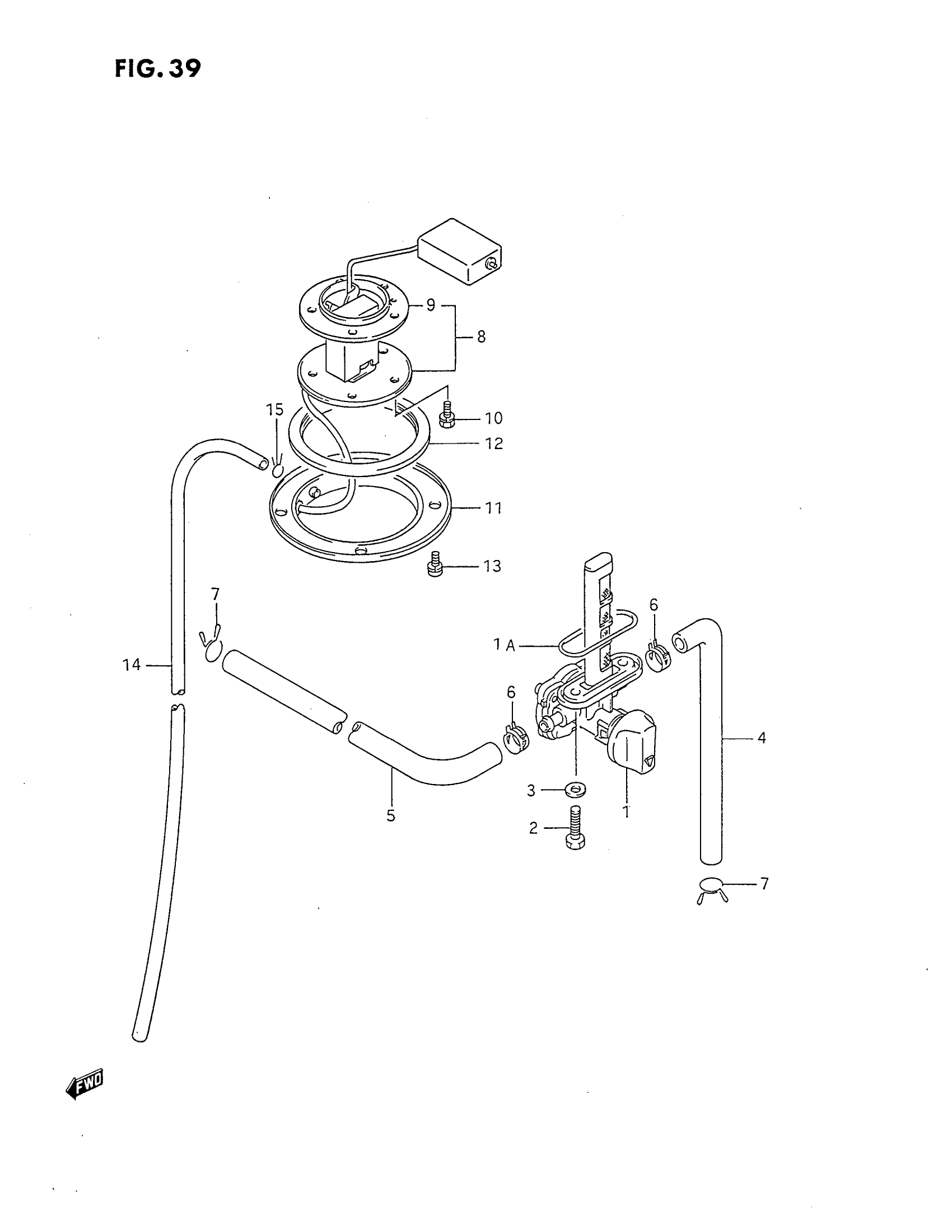

Suzuki GSX750FV (1997) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 1A This part replaces 44300-20C00.

44300-20C01

Unavailable

1A

O RING This part replaces 44348-49170.

44348-49171

$2.80

2

BOLT

09128-06057

$1.64

3

GASKET

09168-06026

$2.80

4

HOSE, 3 OUT/CANISTER This part replaces 09343-07502.

09343-07501

$20.80

5

HOSE, 3 OUT/CANISTER This part replaces 09343-07503.

09343-07501

$20.80

6

CLIP This part replaces 09401-11407.

09401-11415

$2.24

7

CLIP, FUEL HOSE NO.2

09401-12403

$1.84

8

GUAGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-20C00

Unavailable

9

GASKET

34825-45100

$5.30

10

BOLT This part replaces 09117-05003.

01570-0510B

$2.55

11

PLATE, FUEL DRAIN

34885-40A00

Unavailable

12

GASKET FUEL DRA This part replaces 34888-40A00.

34888-40A01

$12.20

13

BOLT

09137-05004

$2.50

14

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$12.58

15

CLIP

09401-08401

$1.52
