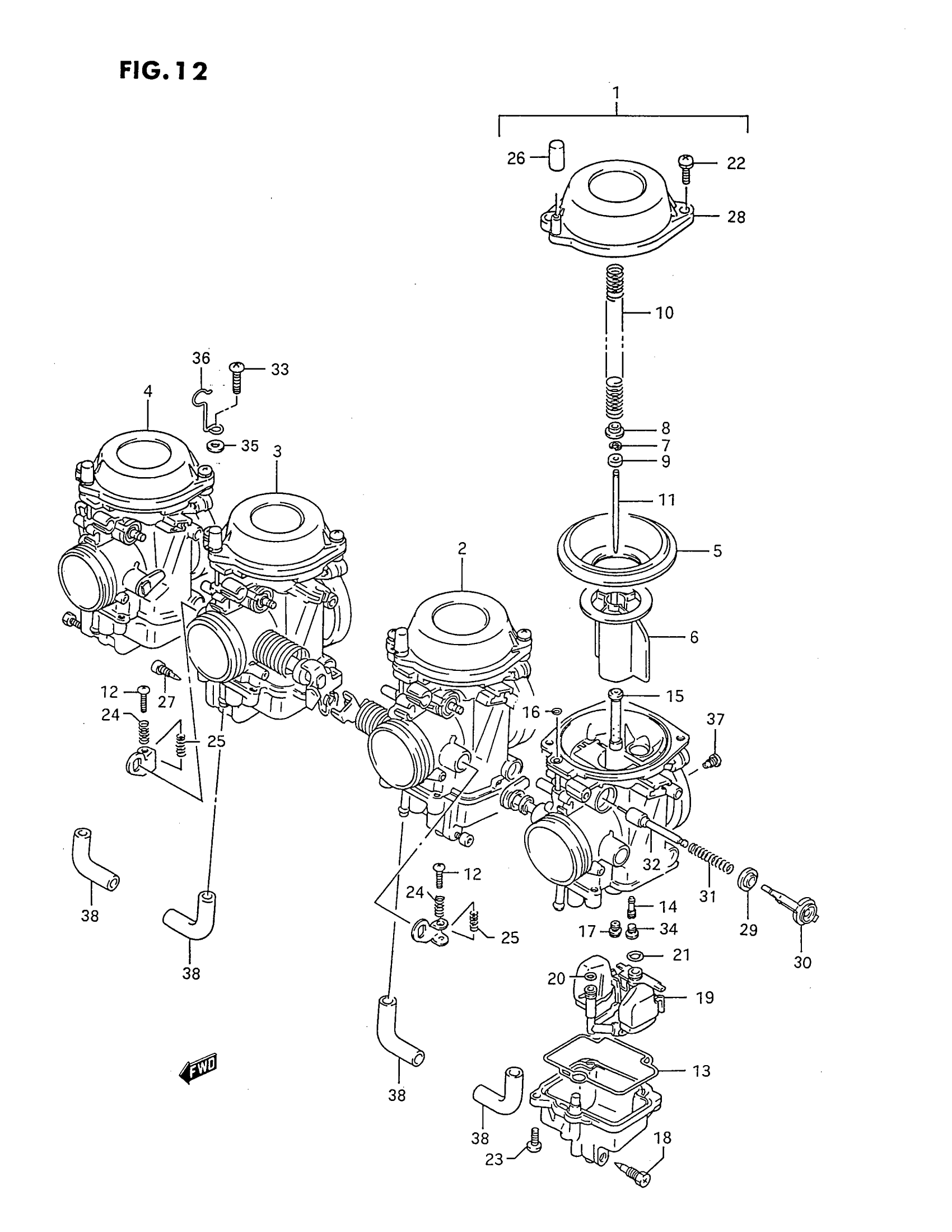

Suzuki GSX750FV (1997) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-20C31

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-20CH0

Unavailable

2

CARBURETOR ASSY, ML

13202-20C31

Unavailable

2

CARBURETOR ASSY, ML | E33

13202-20CH0

Unavailable

3

CARBURETOR ASSY, MR

13203-20C31

Unavailable

3

CARBURETOR ASSY, MR | E33

13203-20CH0

Unavailable

4

CARBURETOR ASSY, RH

13204-20C31

Unavailable

4

CARBURETOR ASSY, RH | E33; Includes Item(s) 5 - 38

13204-20CH0

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$27.09

6

VALVE, PISTON

13501-17C00

Unavailable

6

VALVE, PISTON | E33

13501-02D00

$105.67

7

E RING

13394-31210

$4.37

8

RING

13382-42A00

$4.09

9

RING

13387-44030

$5.49

10

SPRING

13417-42A00

$6.39

10

SPRING | E33

13417-12D00

Unavailable

11

NEEDLE, JET (5EZ62-1)

13383-20C10

$22.17

11

NEEDLE, JET (5EZ63-1) | E33

13383-20C20

Unavailable

12

SCREW | ML:2,MR:1

13267-44B00

$4.62

13

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

14

JET, PILOT (32.5)

09492-32006

$12.30

15

JET, NEEDLE (Y-1M)

09494-00875

Unavailable

16

O RING

13509-17C00

$4.09

17

JET, MAIN (105) | LH,ML,RH

09491-21016

$13.18

17

JET, MAIN (110) | MR

09491-22016

$9.22

18

SCREW, DRAIN | LH,RH

13247-24500

Unavailable

19

FLOAT/NEEDLE VA This part replaces 13250-20C00.

13250-20C10

Unavailable

20

.O RING

13374-46710

$4.09

21

O RING This part replaces 13374-44080.

13374-35C00

$5.48

22

SCREW | LH,ML,RH:2,MR:1 This part replaces 02112-75163.

02112-7516A

$2.42

23

SCREW

02112-05127

$1.97

24

SPRING | ML:2,MR:1

13271-44B00

$3.66

25

SPRING | ML;2,MR:1

13268-17C10

$5.82

26

CAP

13508-17C00

$4.47

27

SCREW, DRAIN | ML,MR This part replaces 13247-13A00.

13247-02340

$4.56

28

COVER, DIAPHRAGM

13502-17C00

Unavailable

29

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$3.95

30

HOLDER

13418-17C10

$15.68

31

SPRING

13417-09110

$7.12

32

PLUNGER ASSY

13411-20C00

Unavailable

33

SCREW | MR

02112-05164

$2.87

34

PLUG

13357-34C00

$4.33

35

WASHER, FRONT | MR This part replaces 08322-01053.

08322-0105A

$1.83

36

CLIP | MR

13671-20C20

Unavailable

37

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

$17.73

38

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$14.61
