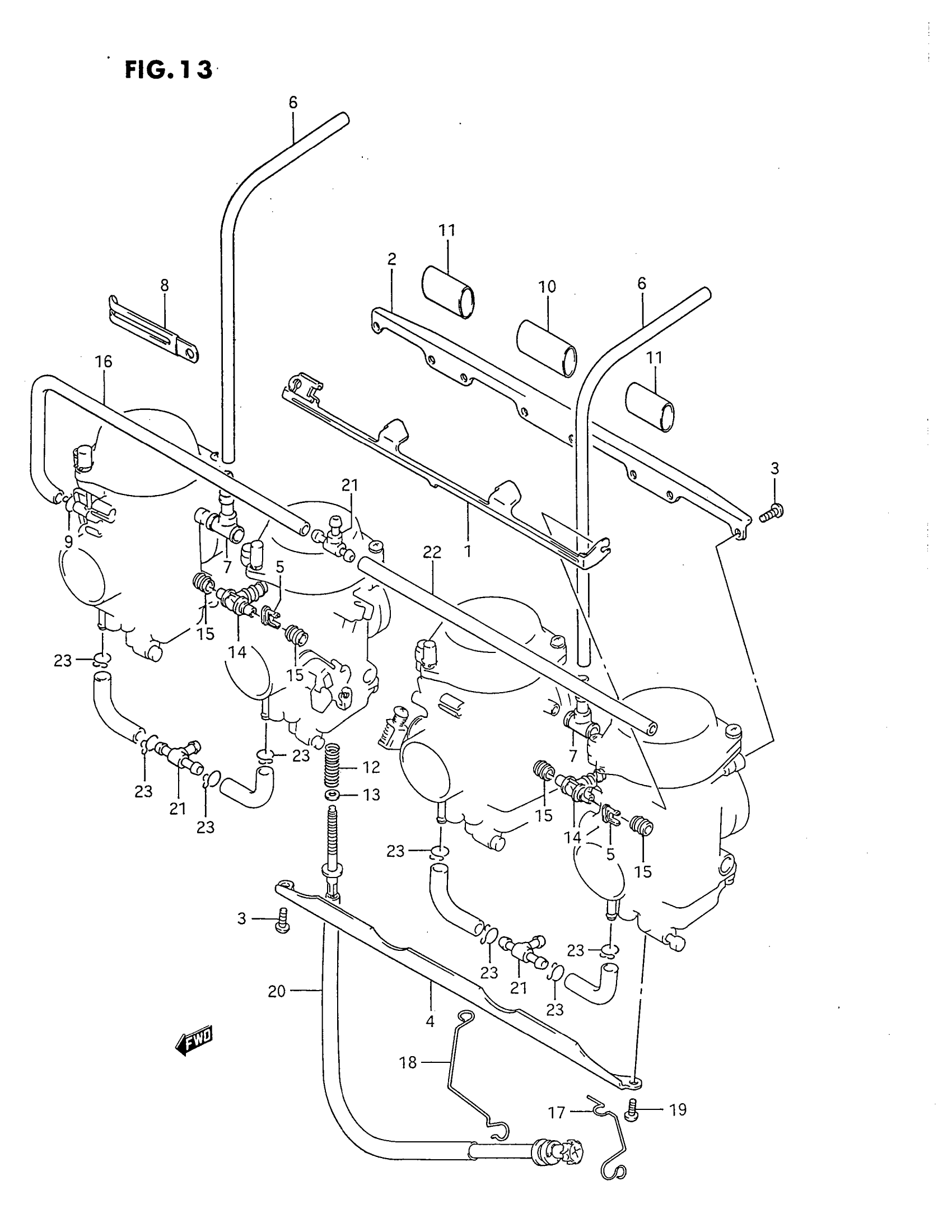

Suzuki GSX750FV (1997) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER

13413-20C00

Unavailable

2

PLATE

13628-17C10

Unavailable

3

SCREW

02112-05127

$2.01

4

PLATE

13628-17C00

Unavailable

5

HOLDER

13439-17C00

$14.10

6

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.23

7

HOSE

13684-20C10

$5.32

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

8

CLAMP | E33 This part replaces 09404-06431.

09404-06039

$1.79

9

CLIP

09401-08410

$1.95

10

HOSE

13684-43440

Unavailable

11

HOSE

13684-43440

Unavailable

12

SPRING

13375-14D10

$5.90

13

WASHER

13427-38300

$2.17

14

NIPPLE

13685-44B00

$11.19

15

SEAL

13673-44B00

$4.40

16

HOSE (L:380) | E33

13684-20C00

Unavailable

17

CLIP

13671-20C00

Unavailable

18

CLIP

13671-20C10

$18.03

19

SCREW This part replaces 13602-05148.

13601-05148-XC0

$2.97

20

ADJUSTER

13279-20C00

Unavailable

21

.NIPPLE | E33

13685-48B00

$11.96

22

.HOSE | E33 This part replaces 09352-50903-600.

09352-50006-600

$6.95

23

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49
