2009 Suzuki GSX650F Radiator Hose Diagram

← All diagrams

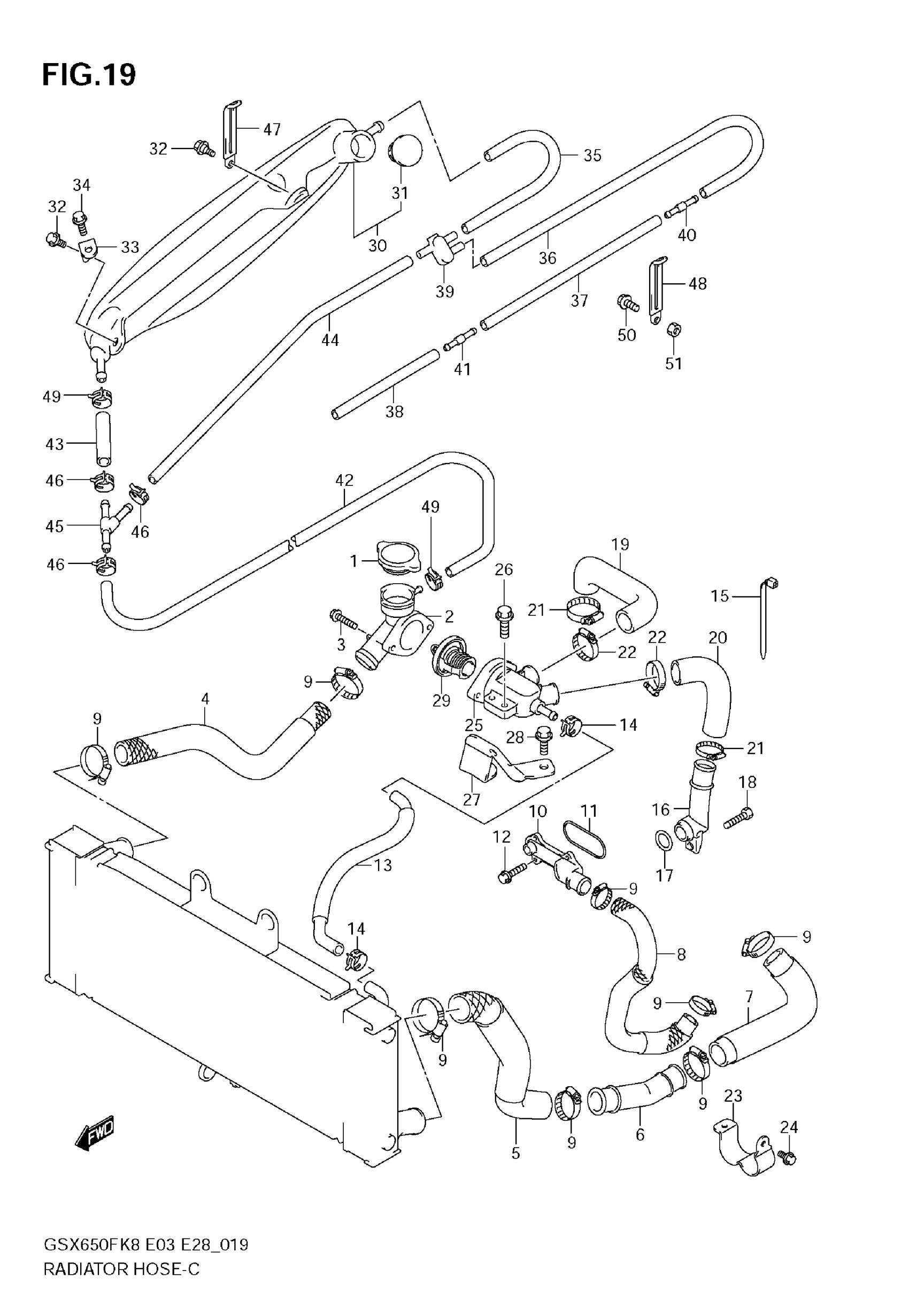

Find the part on the Radiator Hose diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX650F Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR

17730-14G00

1
Out of stock

2

CONDUCTION

17791-18H00

1
Out of stock

3

BOLT

01550-0620A

2
Out of stock

4

HOSE, RADIATOR INLET

17851-18H00

1
Out of stock

5

HOSE, RADIATOR OUTLET

17852-18H00

1
Out of stock

6

PIPE, RADIATOR OUTLET

17890-17H00

1
Out of stock

7

HOSE, WATER PUMP INLET

17853-18H00

1
Out of stock

8

HOSE, WATER PUMP OUTLET

17854-18H00

1
Out of stock

9

CLAMP

09402-38512

8
Out of stock

10

CONNECTOR, CYLINDER INLET

17861-17H00

1
Out of stock

11

O RING

17863-18H00

1
Out of stock

12

BOLT

01547-0620A

4
Out of stock

13

HOSE, WATER BYPASS

17856-18H00

1
Out of stock

14

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

15

CLAMP

09407-18402

1
Out of stock

16

PIPE, CYLINDER OUTLET

17880-18H00

2
Out of stock

17

O RING

09280-18009

2
Out of stock

18

BOLT

07130-0612A

2
Out of stock

19

HOSE, CYLINDER OUTLET RH

17857-18H00

1
Out of stock

20

HOSE, CYLINDER OUTLET LH

17858-18H00

1
Out of stock

21

CLAMP

09402-28513

2

$6.80

In stock

22

CLAMP

09402-32512

2
Out of stock

23

PLATE, WATER HOSE CLAMP

17859-18H00

1
Out of stock

24

BOLT

01547-0612A

2
Out of stock

25

CONNECTOR

17662-18H00

1
Out of stock

26

BOLT

01550-0620A

2
Out of stock

27

BRACKET

17669-18H00

1
Out of stock

28

BOLT

01550-0612A

2
Out of stock

29

THERMOSTAT,WTR (82<-C)

17670-76G00

1
Out of stock

30

TANK ASSY, RESERVOIR | Includes Item(s) 31

17910-18H00

1
Out of stock

31

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

32

BOLT

09111-06085

2
Out of stock

33

BRACKET, RESERVER TANK

17920-18H00

1
Out of stock

34

BOLT

01550-0620A

1
Out of stock

35

HOSE, OVERFLOW

17982-18H00

1
Out of stock

36

HOSE, OVERFLOW NO.2

17983-18H00

1
Out of stock

37

HOSE, OVERFLOW NO.3

17984-18H00

1
Out of stock

38

HOSE, OVERFLOW NO.4 | L:980!260

09359-50901-980

1
Out of stock

39

JOINT, OVERFLOW HOSE

13471-18H00

1
Out of stock

40

JOINT, OVERFLOW HOSE NO.2

09367-04011

1
Out of stock

41

JOINT, OVERFLOW HOSE NO.3

09367-06009

1
Out of stock

42

1

$34.43

In stock

43

HOSE, TANK INLET NO.2 | L:600!60

09352-50901-600

1
Out of stock

44

HOSE, TANK INLET NO.3 | L:600!230

09359-35751-600

1
Out of stock

45

JOINT

09367-06007

1
Out of stock

46

CLIP

09401-08410

3
Out of stock

47

1

$2.42

In stock

48

CLAMP

09404-06429

1
Out of stock

49

CLIP

09401-08411

2
Out of stock

50

BOLT

01550-0612A

1
Out of stock

51

NUT

08316-1006A

1
Out of stock
